Eclipse TJ0075

Eclipse ThermJet TJ0075
  • Gas Burner 03/09/2017: Eclipse TJ0075
  • Model: Eclipse ThermJet Burners TJ0075
  • Capacity: 750,000Btu/h = 189,000Kcal/h = 220kW/h
  • Inlet Gas Pressure: 3.2kPa = 32mBar = 14"WC
  • Sensor: Flame Rod or Uv Sensor
  • Brand: Eclipse Kato Burner Co.,Ltd.Eclipse ThermJet Burners TJ0075 Specifications
  • Made in U.S.A 100%
  • Applications: Tempering Furnaces, Hardening Furnaces, Reheating Furnaces, Fluidized Bed Dryers, Thermal Oxidizers, Non-Ferrous Melting,Ladle/Tundish, Glass Lehrs Environmental Applications,Preheated Air
  • 主な用途
  • 塗装・鍍金工業……塗料の焼き付け乾燥、
  • 前処理後の水切り乾燥
  • ■繊維産業……生地乾燥、染色後の乾燥
  • ■食品工業……麺類乾燥、農産品・穀類の乾燥、水産物乾燥、茶葉乾燥、スプレードライヤー
  • ■金属加工・化学工業……熱処理炉、接着剤乾燥、シート材の発泡処理
  • ■木材工業・革製品……木材乾燥、ウレタン塗装乾燥、皮の染色乾燥
  • ■窯業、鋳物……原料乾燥、成型後の予備乾燥、鋳物塗型の乾燥
  • ■その他……温風カーテン
  • Eclipse TJ0075(1)
  • Eclipse TJ0075(2)
  • Eclipse TJ0075(3)
  • Eclipse TJ0075(4)
  • Eclipse TJ0075(5)
  • Eclipse TJ0075(7)
  • Eclipse TJ0075(8)
  • Eclipse TJ0075(9)

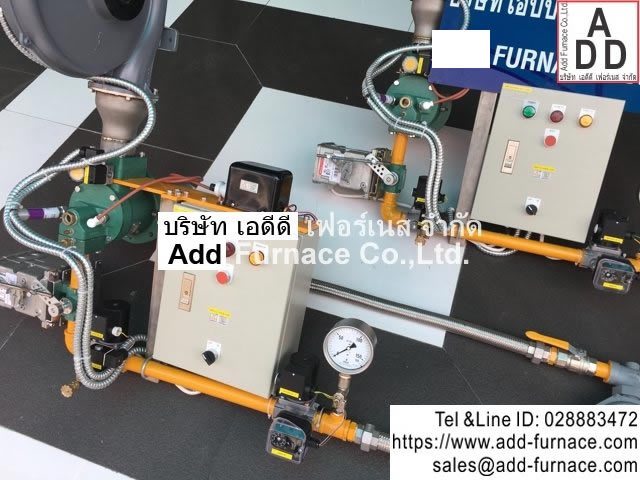

  • Eclipse TJ0075(10)
  • Eclipse TJ0075(11)
  • Eclipse TJ0075(12)
  • Eclipse TJ0075(13)
  • Eclipse TJ0075(14)
  • Eclipse TJ0075(15)

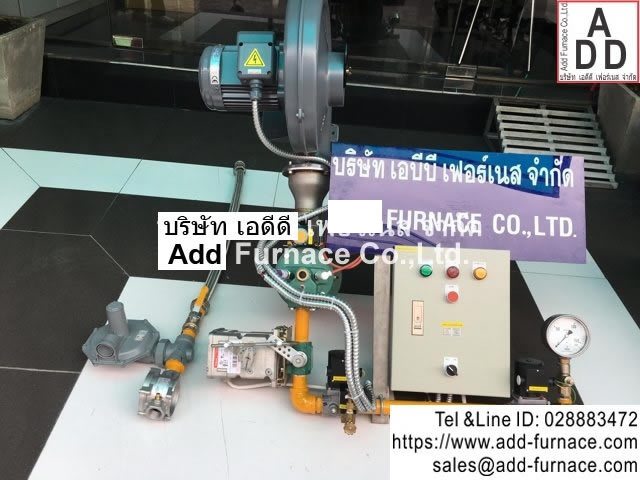

  • Eclipse TJ0075(16)

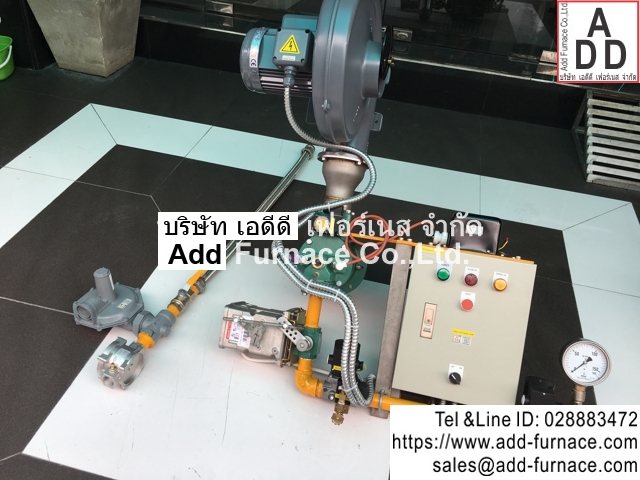

  • Eclipse TJ0075(17)
  • Eclipse TJ0075(18)

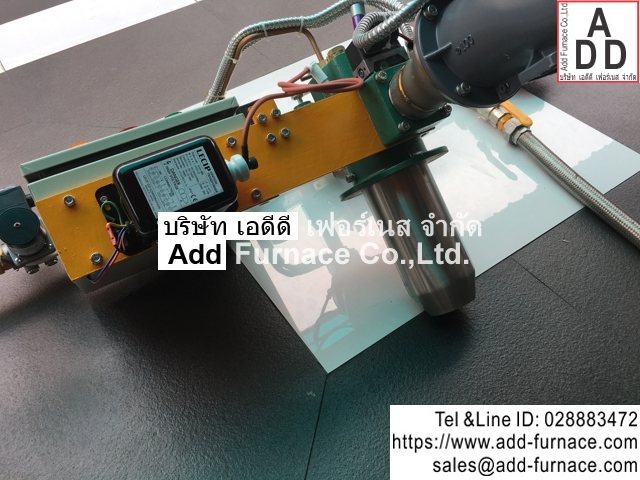

  • Eclipse TJ0075(19)
  • Eclipse TJ0075(20)
