HopeBurner Type LXG-3R

HopeBurner Type LXG-3R
  • Pilot Burner (Gas)ニュールミナスガスバーナー 丸型タイル: HopeBurner Type LXG-3R
  • รุ่นType: LXG-3R
  • แคลอรี่Max capacity: 140kW(120x1,000kcal/h)
  • แก๊สเข้าGas Inlet Pressure: 2~10kPa(20~100mBar),อากาศAir Inlet Pressure: 6kPa (60mBar)
  • ขนาดท่อแก๊สGas Inlet: RC 1", ท่ออากาศเข้าAir Inlet: RC 2"
  • Circumstanes temperature : 1400'C
  • Applications: As luminous flame can be obtained in all ranges of turndown,this burner improved the heat efficiency of heat treatent furnaces heating furnaces and melting furnaces.
  • ยี่ห้อBrand: HOPE
  • Made in Japan

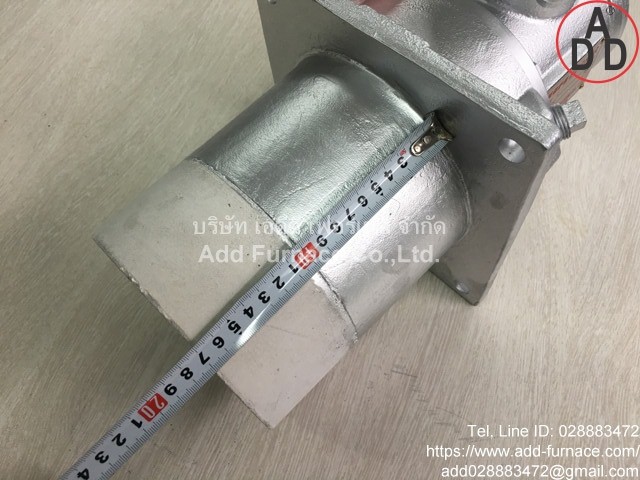

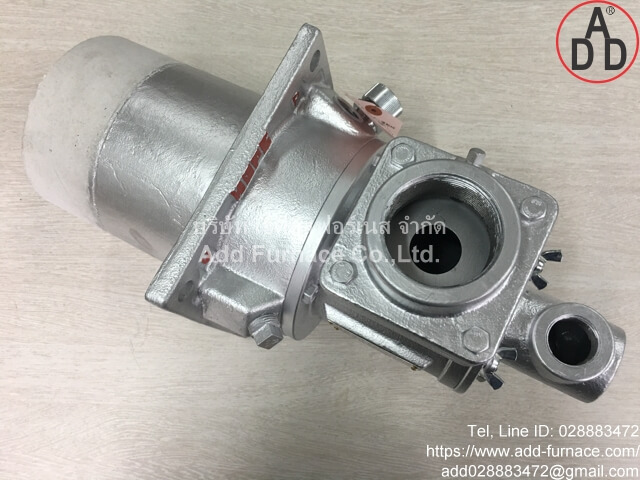

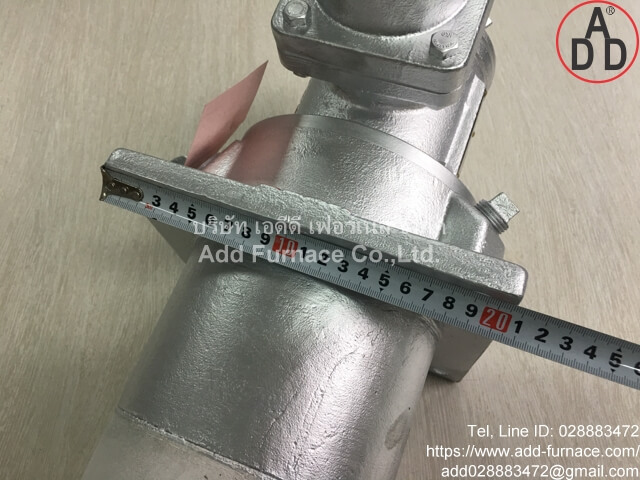

  • HopeBurner Type LXG-3R (1)

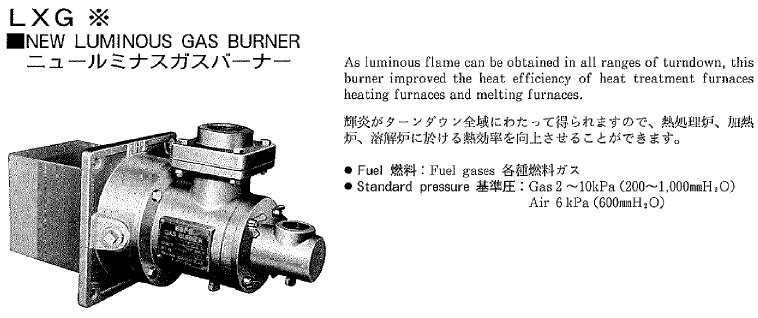

  • New Luminous Gas Burner Round Tile
  • LXG Dimension and Flame Pattern
  • HopeBurner Type LXG-3R (2)
  • HopeBurner Type LXG-3R (3)
  • HopeBurner Type LXG-3R (4)
  • HopeBurner Type LXG-3R (5)
  • HopeBurner Type LXG-3R (6)
  • HopeBurner Type LXG-3R (7)
  • HopeBurner Type LXG-3R (8)
  • HopeBurner Type LXG-3R (9)
  • HopeBurner Type LXG-3R (10)
  • HopeBurner Type LXG-3R (11)
  • HopeBurner Type LXG-3R (12)
  • HopeBurner Type LXG-3R (13)
