HopeBurner Type IP-7FR

HopeBurner Type IP-7FR
  • (Gas)ニュールミナスガスバーナー 丸型タイル: HopeBurner Type IP-7FR
  • รุ่นType型式: IP-7FR
  • แคลอรี่Max capacity燃焼容量: 465kW(400x1,000kcal/h)
  • แก๊สเข้าGas Inlet Pressure基準圧ガス: 2~10kPa(20~100mBar),อากาศAir Inlet Pressure基準圧エアー: 6kPa (60mBar)
  • ขนาดท่อแก๊สGas Inlet接続口径ガス: RC 1.1/2", ท่ออากาศเข้าAir Inlet続口径エアー: JIS5K 3"
  • Circumstanes temperature : 1400'C

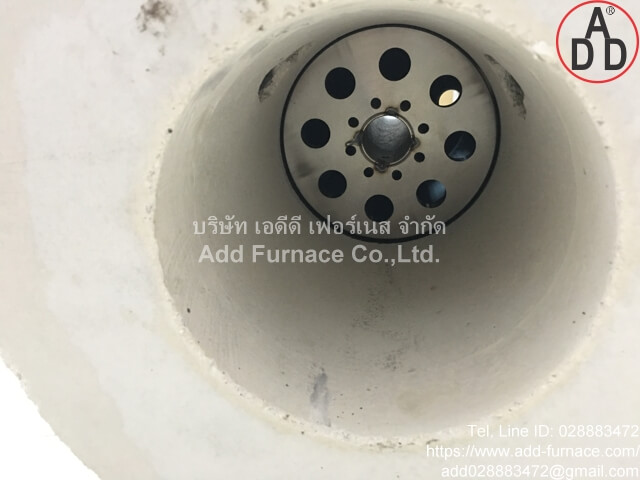

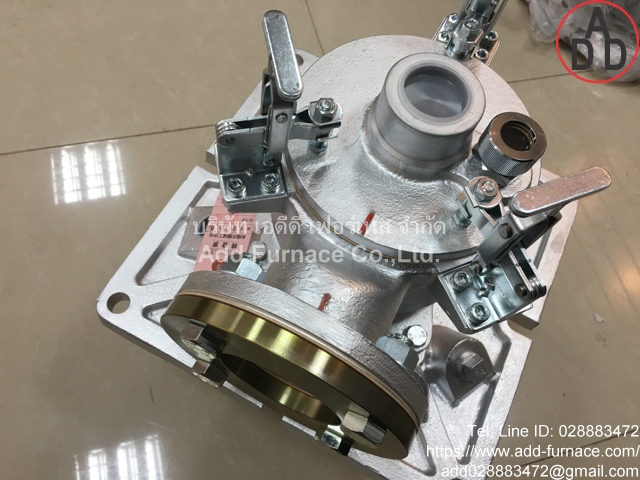

  • Applications: The simple clamp mechanism makes maintenace of the burner nozzle or burner tile easy,usually used aluminum melting furnace
  • ยี่ห้อBrand: HOPE
  • Made in Japan
  • IP-7FR Standard Manual
  • HopeBurner Type IP-7FR (1)
  • Inspection Gas Burner Application
  • LXG Dimension and Flame Pattern
  • HopeBurner Type IP-7FR (2)
  • HopeBurner Type IP-7FR (3)
  • HopeBurner Type IP-7FR (4)
  • HopeBurner Type IP-7FR (5)
  • HopeBurner Type IP-7FR (6)
  • HopeBurner Type IP-7FR (7)
  • HopeBurner Type IP-7FR (8)
  • HopeBurner Type IP-7FR (9)
  • HopeBurner Type IP-7FR (10)
  • HopeBurner Type IP-7FR (11)
  • HopeBurner Type IP-7FR (12)
  • HopeBurner Type IP-7FR (13)
  • HopeBurner Type IP-7FR (14)
  • HopeBurner Type IP-7FR (15)
  • HopeBurner Type IP-7FR (16)
  • HopeBurner Type IP-7FR (17)
  • HopeBurner Type IP-7FR (18)
  • HopeBurner Type IP-7FR (19)
  • HopeBurner Type IP-7FR (20)
