Project: Eclipse ThermJet Burner TJ0040(18/01/2017)
.jpg)
- Type: Project: Eclipse ThermJet Burner TJ0040(18/01/2017)
- Capacity: 400,000Btu/h = 100,800Kcal/h = 117kW/h
- Inlet Gas Pressure: 1.37kPa = 13.7mBar = 5.5"WC Sensor: Flame Rod or Uv Sensor

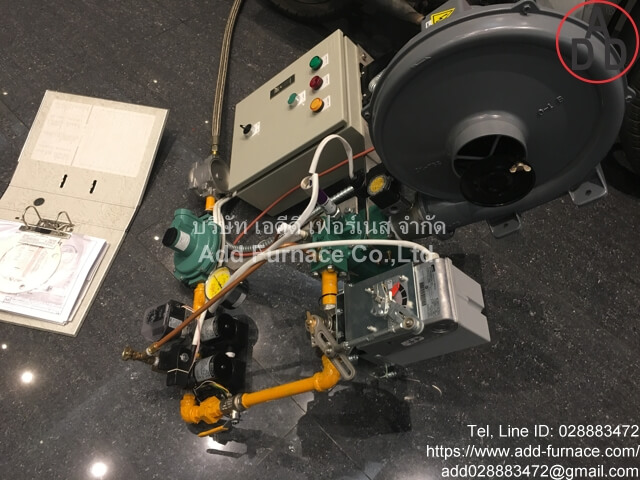

- Standard Gas Burner include:
- 1. ควบคุมไฟอันโนมัติ Burner Controller,
- 2. โซลิวาล์วปิด-เปิดแก๊สGas Solenoid Valve,
- 3. หัวบรับความดันต่ำGas Regulator,
- 4. กรองแก๊สGas Filter,
- 5. หัวพ่นไฟGas Burner,
- 6. อ่านเปลวไฟUv Sensor,
- 7. โบเวอร์แรงดันสูงHigh Pressure Blower,
- 8. อุปกรณ์วัดแรงดันPressure Switch,
- 9. ควบคุมอุหภูมิServo Motor,
- 10. วัดแรงด้นPressure Gauge,
- 11. หม้อแปลงจุดไฟIgnition Transformer.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
