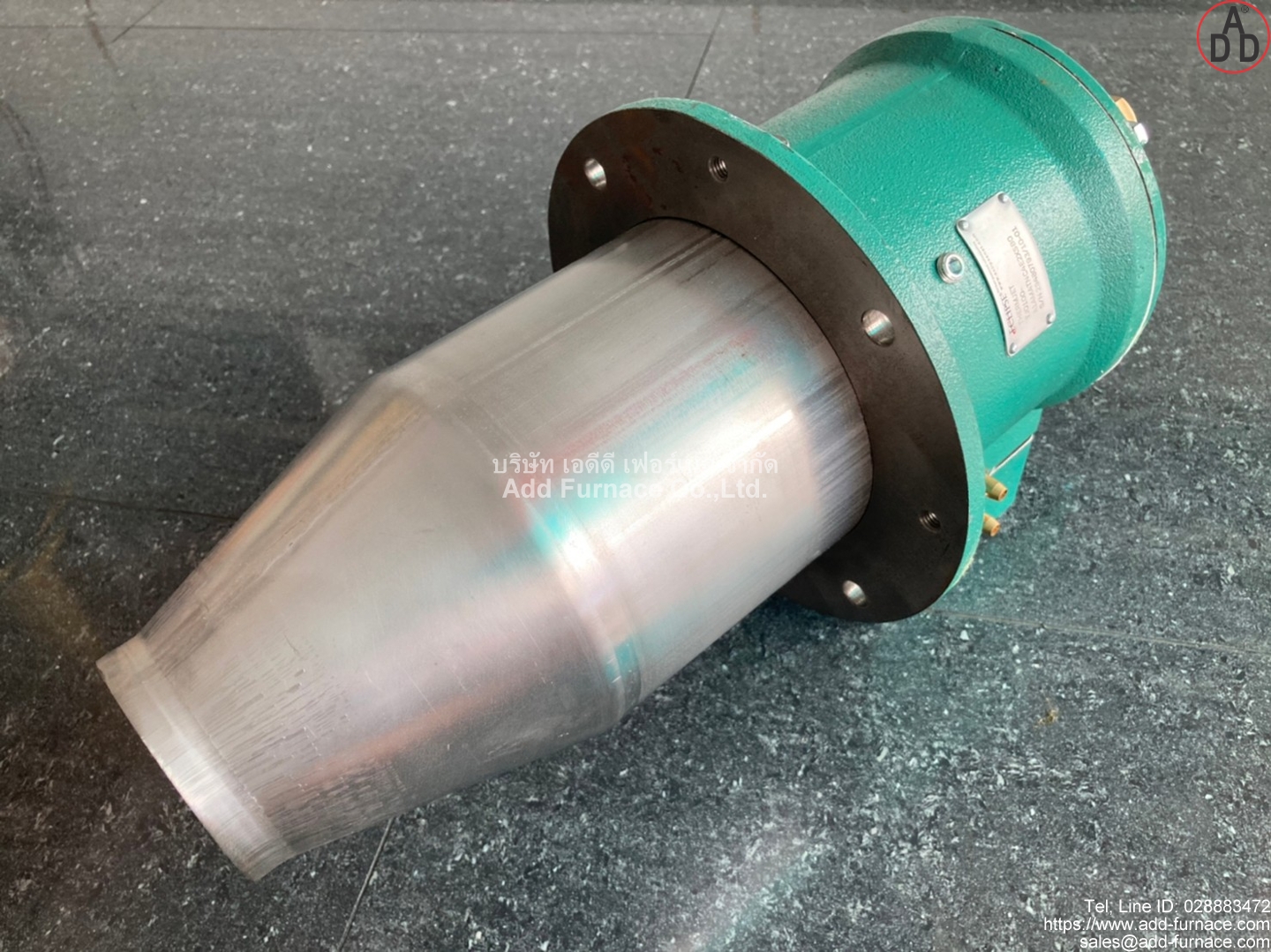

Eclipse Burners Model TJ0100
.jpg)
- Gas Burner: Eclipse Burner TJ0100(293kW) | ThermJet Burners Model TJ0100
- Model: Eclipse ThermJet Burners TJ0100
- Capacity: 1000,000Btu/h = 252,000Kcal/h = 293kW/h
- Maximum Chamber Temp Under Follow List:
- Alloy Combustor (AISI 310) 950°C(1,750°F)(Default)
- Silicon Carbide Combustor 1,371°C(2,500°F)
- Refractory Combustor with AISI 330 wrapper 1,538°C(2,800°F)
- Spark Plug: Eclipse 10019728
- Sensor: Flame Rod or Uv Sensor
- Brand: Eclipse
Eclipse ThermJet Burners Model TJ0100 Specifications- Eclipse Thermjet Burners Model TJ0100 Spare Parts List
- Made in U.S.A 100%
- Applications: Tempering Furnaces, Hardening Furnaces, Reheating Furnaces, Fluidized Bed Dryers, Thermal Oxidizers, Non-Ferrous Melting,Ladle/Tundish, Glass Lehrs Environmental Applications,Preheated Air
