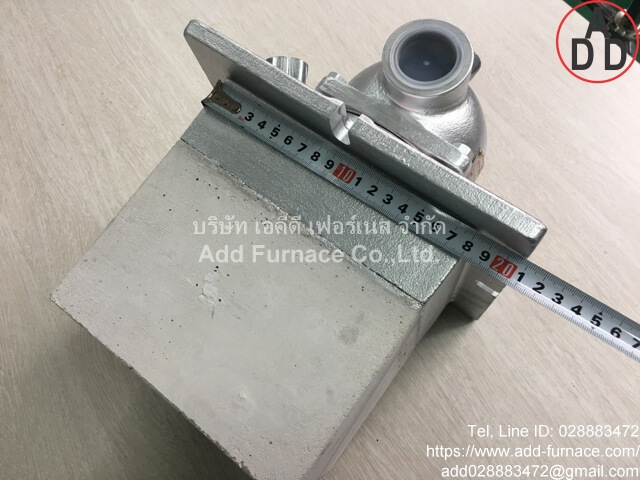

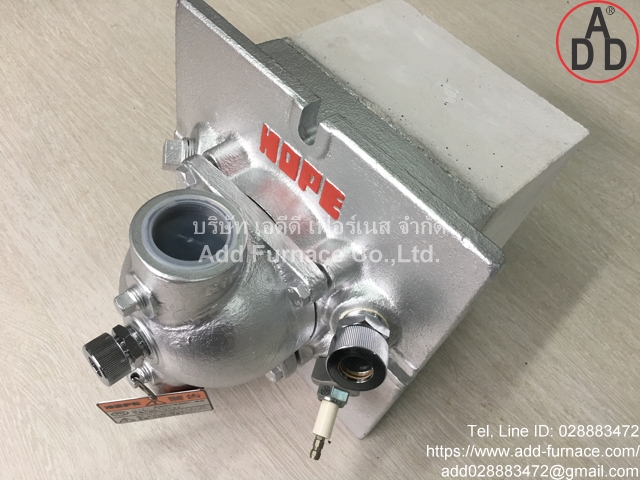

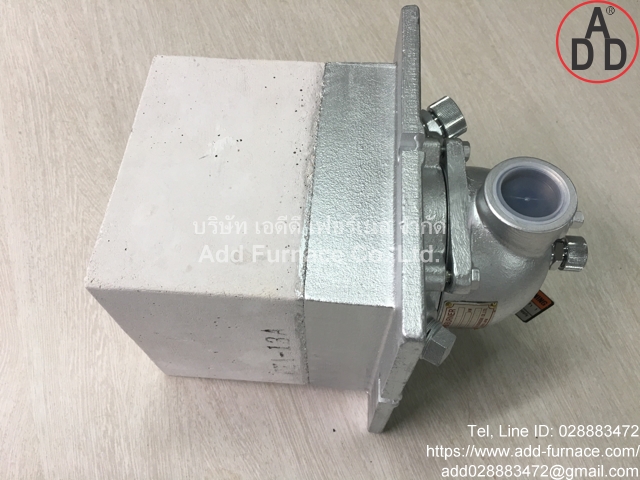

HopeBurner Type EXA 2A

(Gas)ニュールミナスガスバーナー丸型タイル: HopeBurner Type EXA-2A
รุ่นType型式: EXA-2A
แคลอรี่Max capacity燃焼容量: 166kW(143x1,000kcal/h)
แก๊สเข้าGas Inlet Pressure基準圧ガス: 2~10kPa(20~100mBar),อากาศAir Inlet Pressure基準圧エアー: 6kPa (60mBar)
ขนาดท่อแก๊สGas Inlet接続口径ガス: RC 1", ท่ออากาศเข้าAir Inlet続口径エアー: RC 1.1/2"
Circumstanes temperature : 1400'C
Applications: Nozzle-mixing type burner. Very stable combustion can be obtained even if with excessair. As high-speed combustion mixes fluids in the furnace, heating is uniform. Further, a high turndown tatio is so big that it is possible to regulate the control of temperature to the extent of low temperature.
ยี่ห้อBrand: HOPE
Made in Japan
EXA-2A Standard Manual
