Eclipse Gas Burner Model RM050 HP
.jpg)

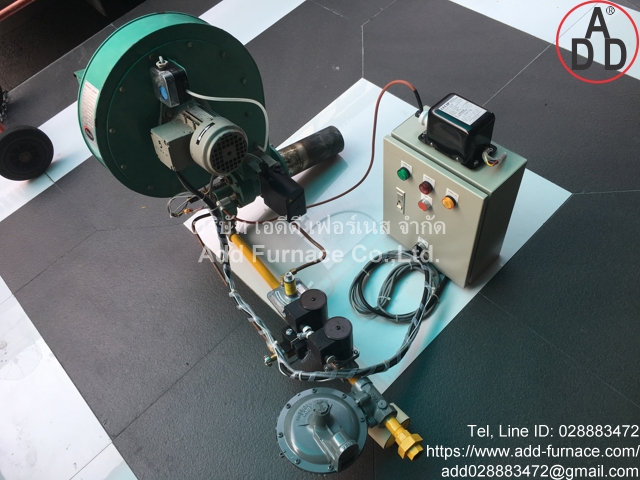

- MODEL: Eclipse Gas Burner Model RM050 HP
- Type:HP2R6XUFXXX
- Voltage:230/400
- Pressure:50-150 mbar
- Fuel:PROPANE GAS
- Capacity(Kw):150 (MC)
- 1. ควบคุมไฟอันโนมัติ Burner Controller,
- 2. โซลิวาล์วปิด-เปิดแก๊สGas Solenoid Valve,
- 3. หัวบรับความดันต่ำGas Regulator,
- 4. กรองแก๊สGas Filter,
- 5. หัวพ่นไฟGas Burner,
- 6. อ่านเปลวไฟUv Sensor,
- 7. โบเวอร์แรงดันสูงHigh Pressure Blower,

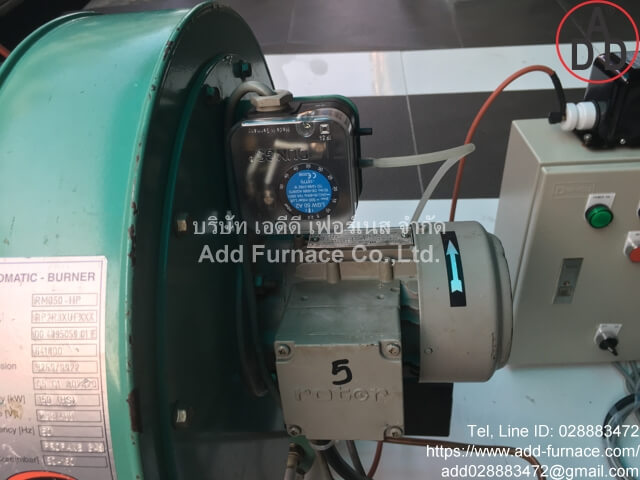

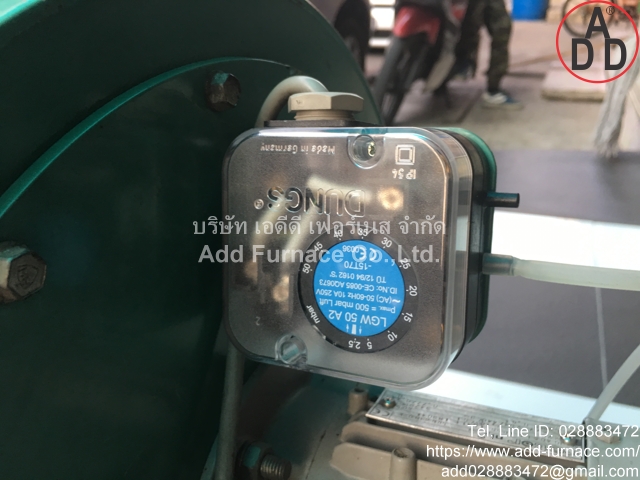

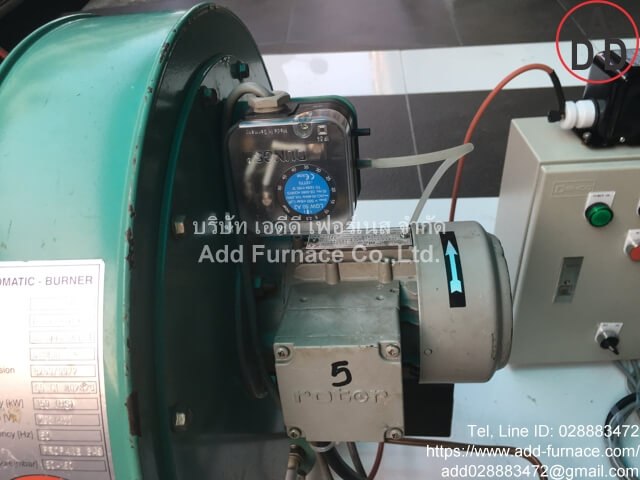

- 8. อุปกรณ์วัดแรงดันPressure Switch,

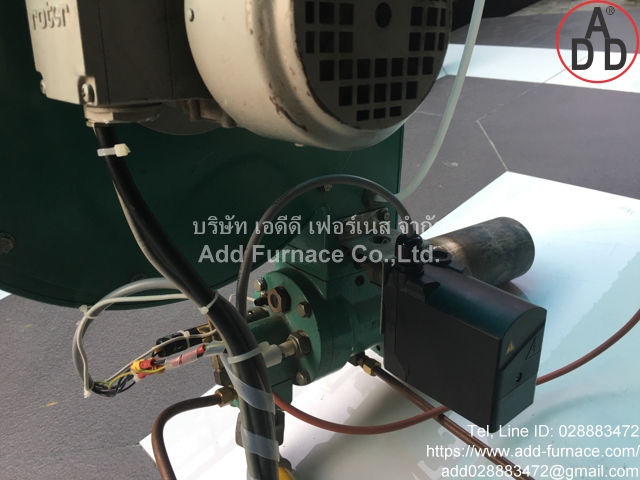

- 9. ควบคุมอุหภูมิServo Motor,
- 10. วัดแรงด้นPressure Gauge,
- 11. หม้อแปลงจุดไฟIgnition Transformer.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
