Project: Eclipse ThermJet Burner TJ0040(28/08/2017)
- Model: Eclipse ThermJet Burners Model TJ0040
- Capacity: 400,000Btu/h = 100,800Kcal/h = 106Kw/h
- Maximum Chamber Temp Under Follow List:
- Alloy Combustor (AISI 310) 950°C(1,750°F)(Default)
- Silicon Carbide Combustor 1,371°C(2,500°F)
- Refractory Combustor with AISI 330 wrapper 1,538°C(2,800°F)
- Spark Plug: Eclipse 23045
- Sensor: Flame Rod or Uv Sensor
- Brand: Eclipse
Eclipse ThermJet Burners Model TJ0040 Specifications- Eclipse Thermjet Burners Model TJ0040 Spare Parts List

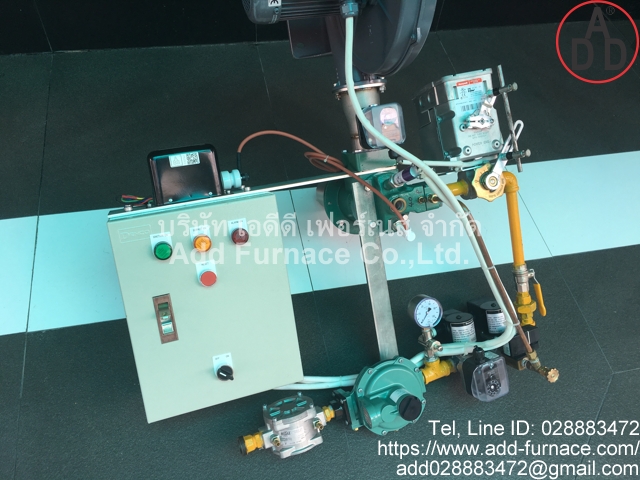

- Standard Gas Burner include:
- 1. ควบคุมไฟอันโนมัติ Burner Controller,
- 2. โซลิวาล์วปิด-เปิดแก๊สGas Solenoid Valve,
- 3. หัวบรับความดันต่ำGas Regulator,
- 4. กรองแก๊สGas Filter,
- 5. หัวพ่นไฟGas Burner,
- 6. อ่านเปลวไฟUv Sensor,
- 7. โบเวอร์แรงดันสูงHigh Pressure Blower,
- 8. อุปกรณ์วัดแรงดันPressure Switch,
- 9. ควบคุมอุหภูมิServo Motor,
- 10. วัดแรงด้นPressure Gauge,
- 11. หม้อแปลงจุดไฟIgnition Transformer.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
