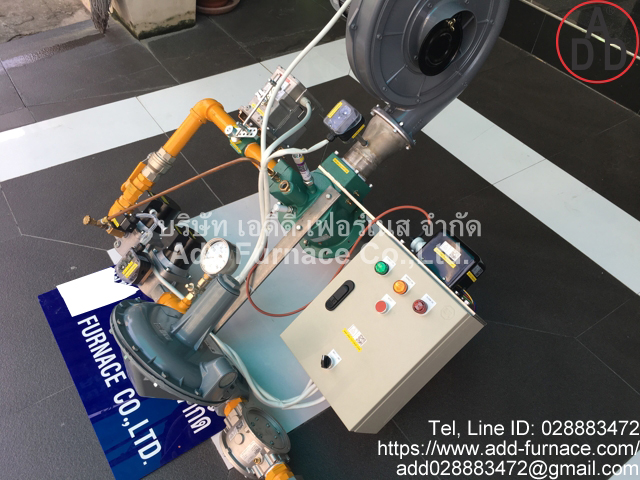

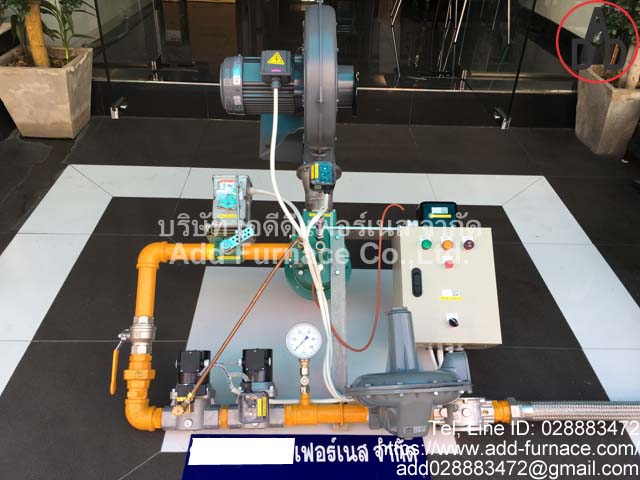

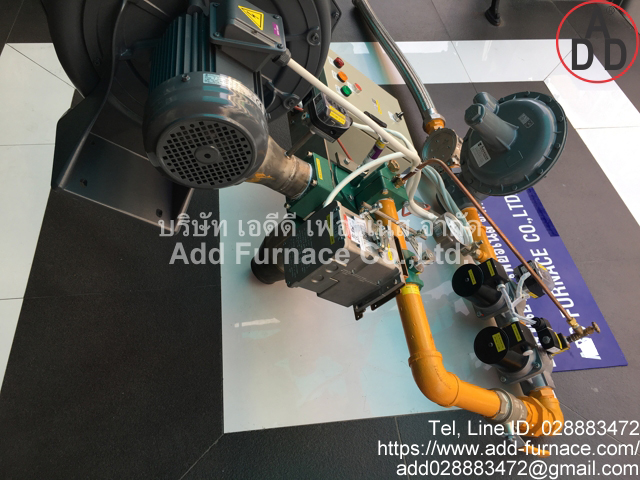

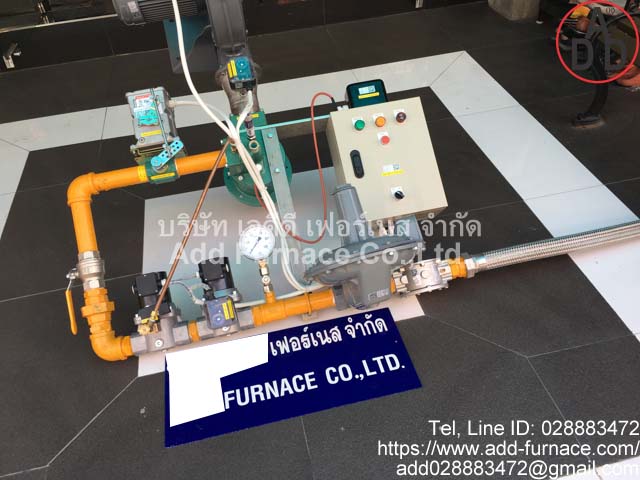

Eclipse Gas Burner TJ0150(02/12/2017)
.jpg)
- Type: Eclipse Gas Burner TJ0150(02/12/2017)
- Capacity: 1500,000Btu/h=340,498Kcal/h = 396kW/h
- Sensor: Uv Sensor
- Maximum Chamber Temp:950°C
- Inlet Gas Pressure: 3.8kPa = 38mBar Sensor: Uv Sensor
- Applications: Tempering Furnaces, Hardening Furnaces, Reheating Furnaces, Fluidized Bed Dryers, Thermal Oxidizers, Non-Ferrous Melting,Ladle/Tundish, Glass Lehrs Environmental Applications,Preheated Air
- Standard Gas Burner include:
- 1. ควบคุมไฟอันโนมัติ Burner Controller,
- 2. โซลิวาล์วปิด-เปิดแก๊สGas Solenoid Valve,
- 3. หัวบรับความดันต่ำGas Regulator,
- 4. กรองแก๊สGas Filter,
- 5. หัวพ่นไฟGas Burner,
- 6. อ่านเปลวไฟUv Sensor,
- 7. โบเวอร์แรงดันสูงHigh Pressure Blower,
- 8. อุปกรณ์วัดแรงดันPressure Switch,
- 9. ควบคุมอุหภูมิServo Motor,
- 10. วัดแรงด้นPressure Gauge,
- 11. หม้อแปลงจุดไฟIgnition Transformer.
Eclipse Gas Burner TJ0150 Standard Manual
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
