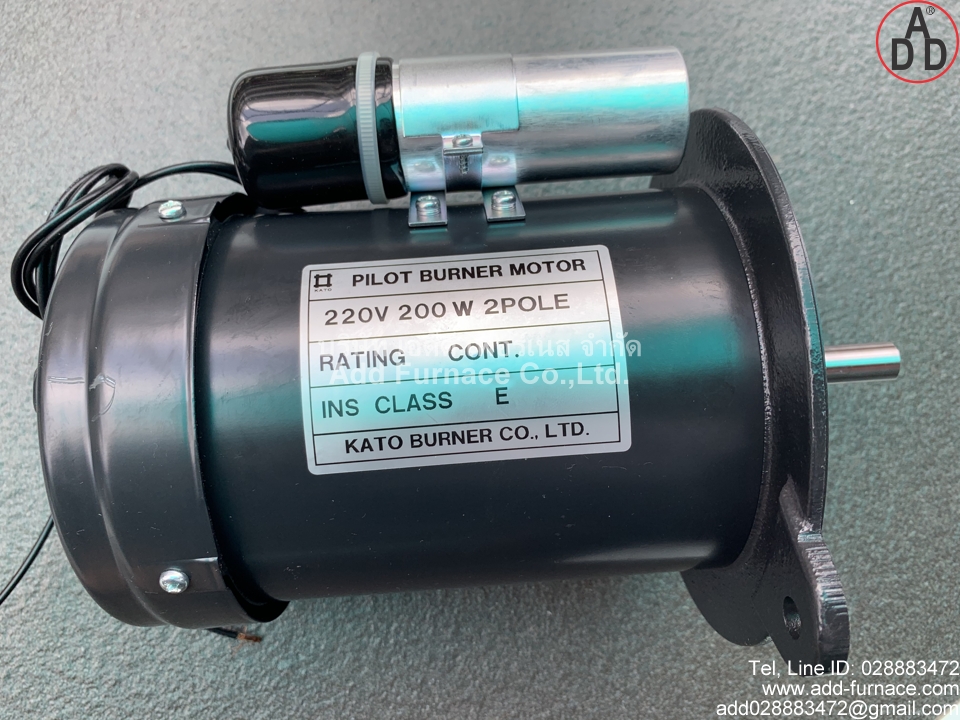

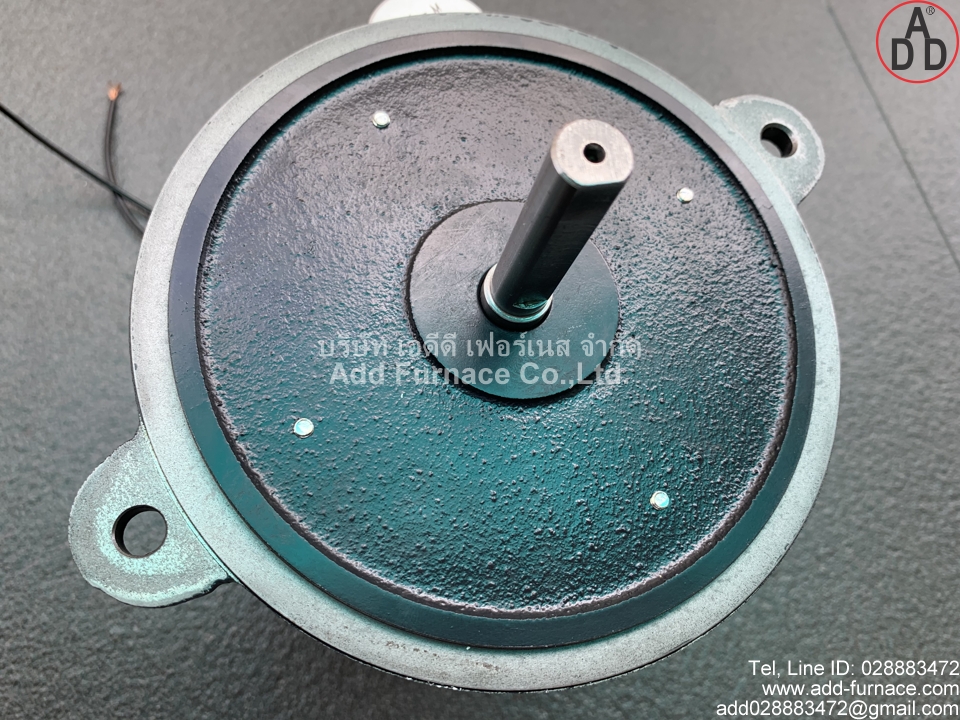

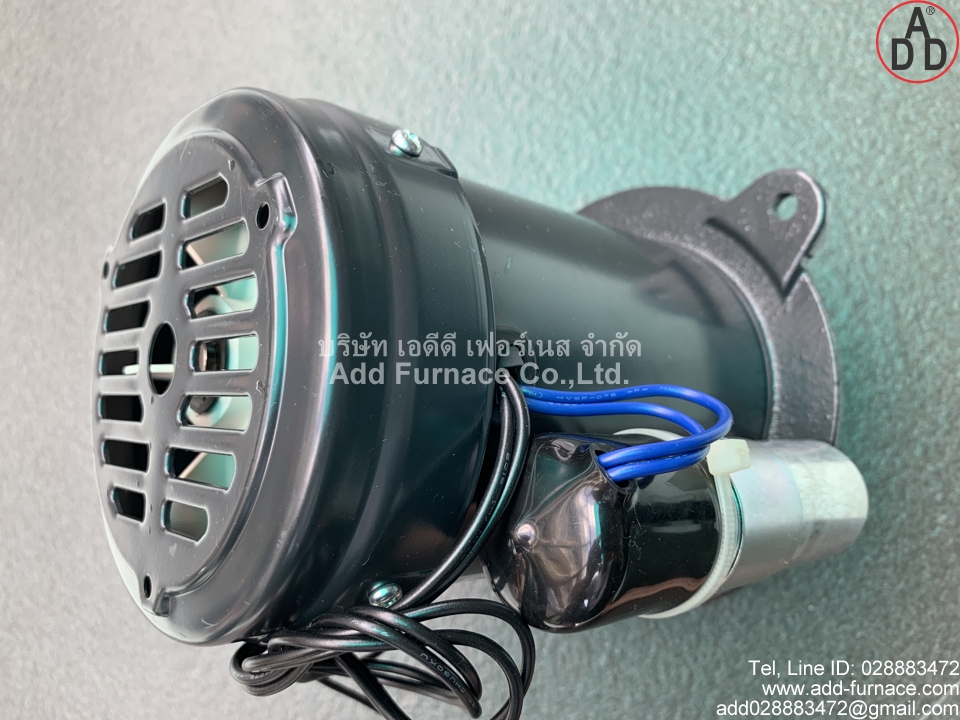

Pilot Burner Motor 220V 200W 2Pole

Pilot Burner Motor 220V 200W 2Pole
  • 三相誘導電動機: 0.2kW(200W) 2p
  • 出力 0,2kW
  • Center distance between holes: 173mm, 2hole: OD9mm
  • Shaft: OD12.7mm, Shaft Length: 50mm, Out Ring: OD140mm
  • 周 波 数 50/60Hz
  • 電圧 200V
  • 電流 1.4/1.2A
  • 極数 2P
  • 回転数 2810/3330 r.p.m
  • 型名TH-27052 JEC 37
  • 定格時間 連続
  • 絕緣種別 E 種
  • 起動階級 F/F
  • 軸承型号6202/6200
  • Made in Japan
  • Brand:三相電機株式会社
