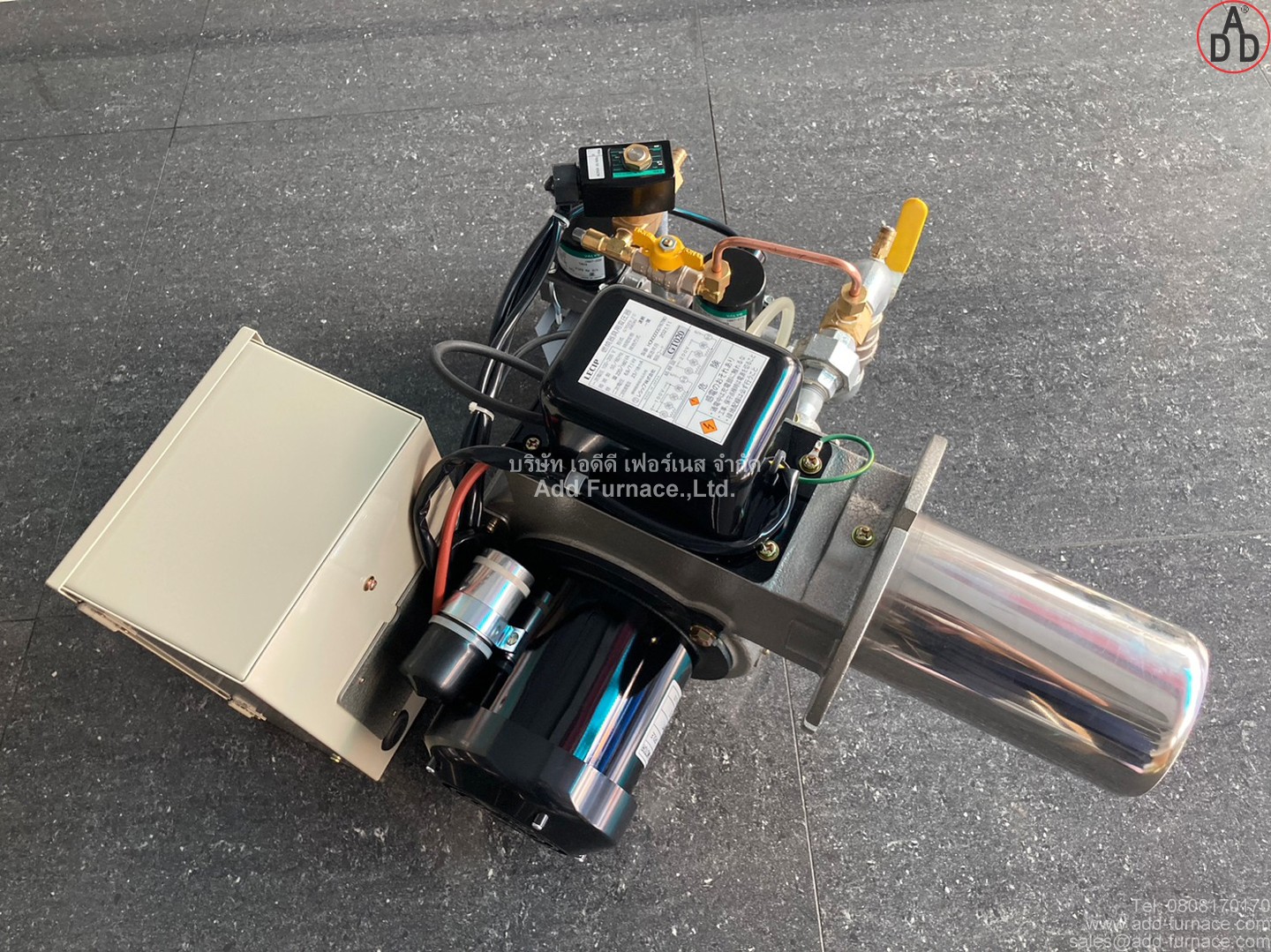

KATO Gas Burner KG-15

KATO Burner KG-15 (174Kw)
  • Pilot Burner: KATO Gas Burner KG-15
  • Capacity: 593,712Btu/h = 149,613Kcal/h = 174Kw/h
  • Operation: Two stage
  • Inlet Gas Pressure: 2.8kPa = 28mBar = 11.2"WC
  • Input Voltage: 220VAC 50/60H

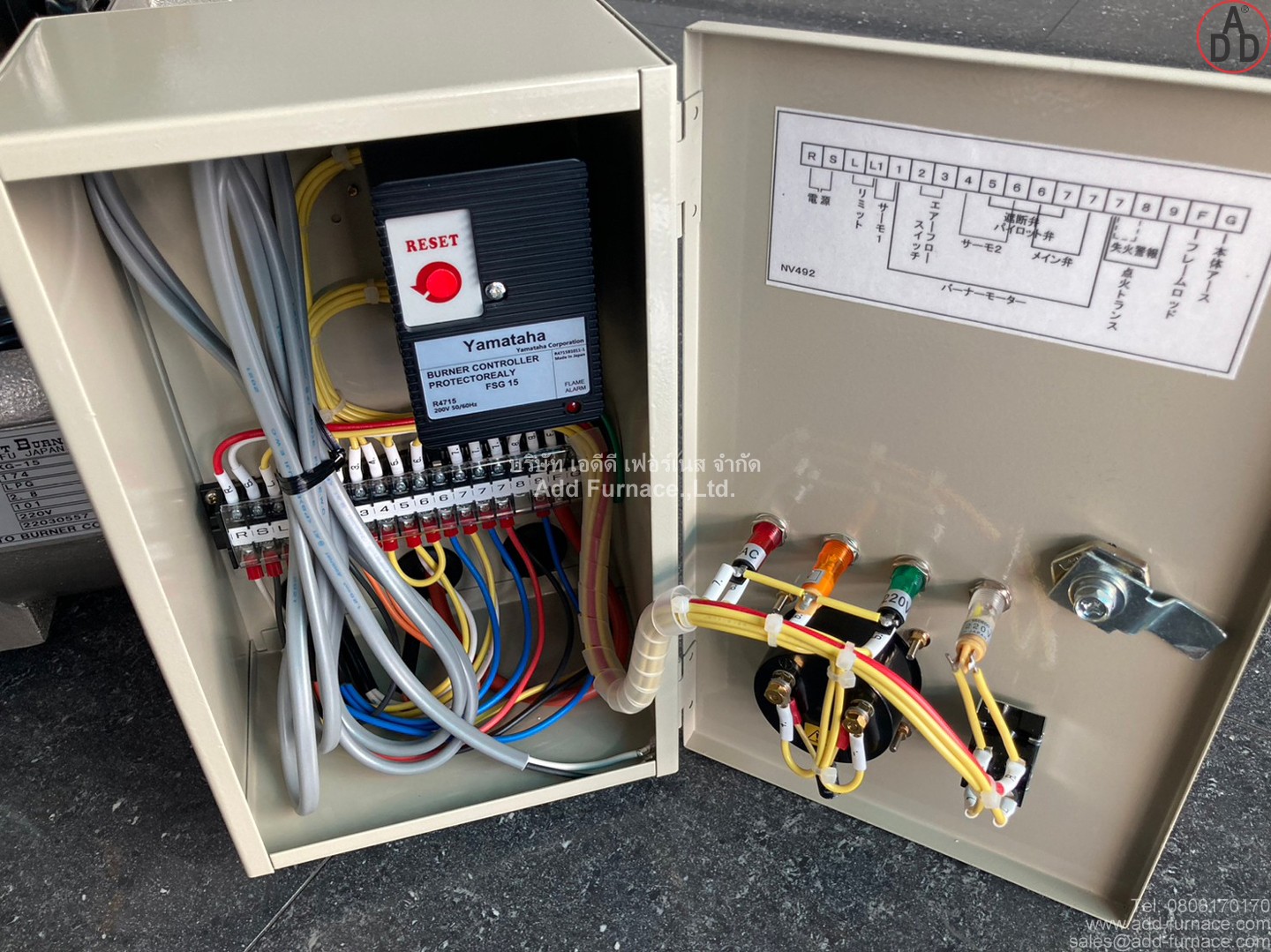

  • Burner Control: Yamataha R4715
  • Ignition Tranformer: Lecip G7023-ZC

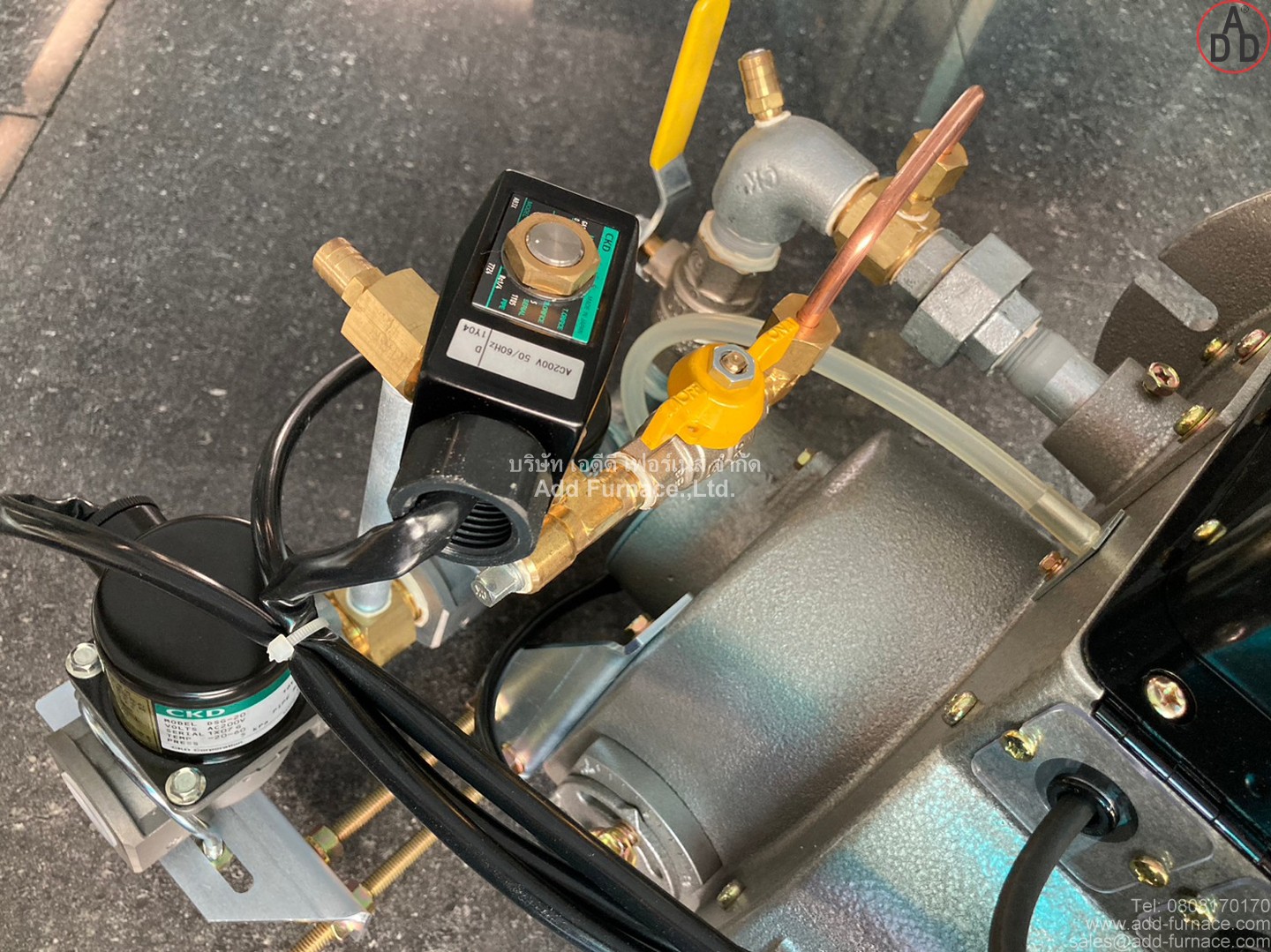

  • Gas Solenoid Valve: CKD
  • Sensor: Flame Rod
  • Brand: KATO BURNER Kato Burner Co.,Ltd.Kato Gas Burner KG-Series Catalog
  • Burner and Burner accessories Made in Japan 100%
  • Kato Gas Burner KG-15 Dimension
  • Kato Gas Burner KG-15 (1)
  • Kato Gas Burner KG-15 (2)
  • Kato Gas Burner KG-15 (3)
  • Kato Gas Burner KG-15 (4)
  • Kato Gas Burner KG-15 (5)
  • Kato Gas Burner KG-15 (6)
  • Kato Gas Burner KG-15 (7)
  • Kato Gas Burner KG-15 (8)
  • Kato Gas Burner KG-15 (9)
  • Kato Gas Burner KG-15 (10)
  • Kato Gas Burner KG-15 (11)
  • Kato Gas Burner KG-15 (12)
  • Kato Gas Burner KG-15 (14)
  • Kato Gas Burner KG-15 (15)
  • Kato Gas Burner KG-15 (16)
  • Kato Gas Burner KG-15 (17)
  • Kato Gas Burner KG-15 (18)
  • Kato Gas Burner KG-15 (19)
  • Kato Gas Burner KG-15 (20)
  • Kato Gas Burner KG-15 (21)
  • Kato Gas Burner KG-15 (22)
  • Kato Gas Burner KG-15 (23)
  • Kato Gas Burner KG-15 (24)
  • Kato Gas Burner KG-15 (25)
  • Kato Gas Burner KG-15 (26)
  • Kato Gas Burner KG-15 (27)
  • Kato Gas Burner KG-15 (28)
  • Kato Gas Burner KG-15 (29)
  • Kato Gas Burner KG-15 (30)
  • Kato Gas Burner KG-15 (31)
  • Kato Gas Burner KG-15 (32)
  • Kato Gas Burner KG-15 (33)
  • Kato Gas Burner KG-15 (34)
