KATO Gas Burner KG-31

KATO Gas Burner KG-31(349kW)
  • Pilot Burner: KATO Gas Burner KG-31
  • Capacity: 300,085Btu/h = 1190,837Kcal/h = 349kW
  • Operation: Two stage
  • Inlet Gas Pressure: 2.8kPa = 28mBar = 11.2"WC
  • Input Voltage: 220VAC 50/60H
  • Burner Control: Azbil R4750A
  • Ignition Tranformer: Lecip G7023-ZC
  • Gas Solenoid Valve: CKD
  • Sensor: Flame Rod
  • Brand: KATO BURNER Kato Burner Co.,Ltd.Kato Gas Burner KG-Series Catalog
  • Burner and Burner accessories Made in Japan 100%
  • Kato Gas Burner KG-31 Dimension
  • Kato Gas Burner KG-31 (1)
  • Kato Gas Burner KG-31 (2)
  • Kato Gas Burner KG-31 (3)
  • Kato Gas Burner KG-31 (5)

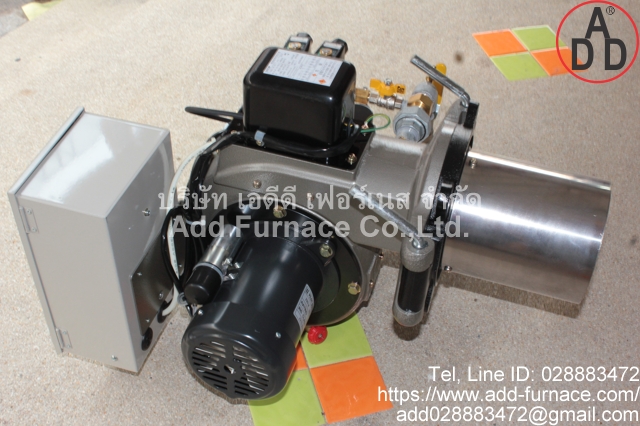

  • Kato Gas Burner KG-31 (6)
  • Kato Gas Burner KG-31 (7)
  • Kato Gas Burner KG-31 (8)
  • Kato Gas Burner KG-31 (9)
