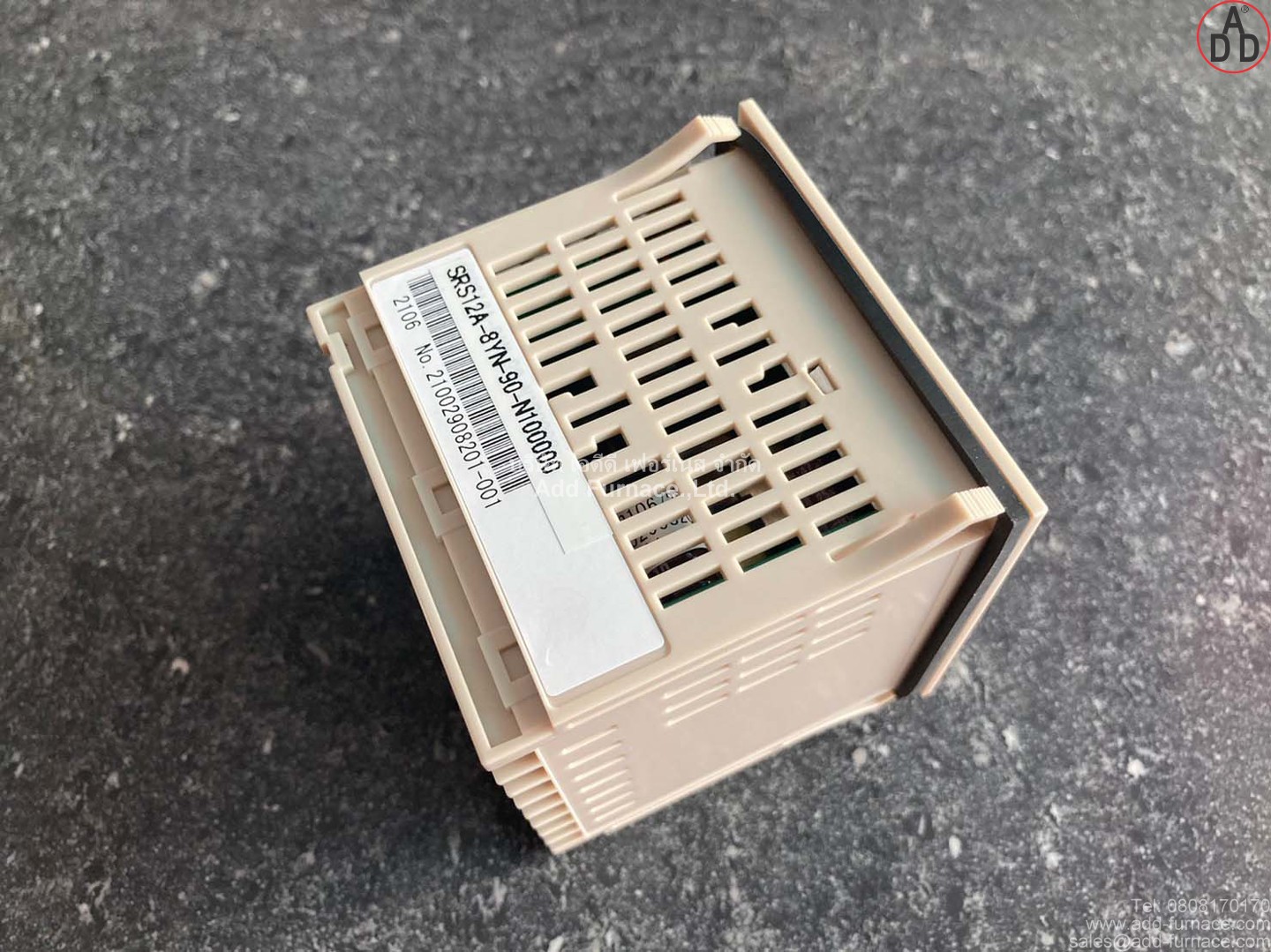

SRS12A-8YN-90-N100000

Shimaden Temperature Controller

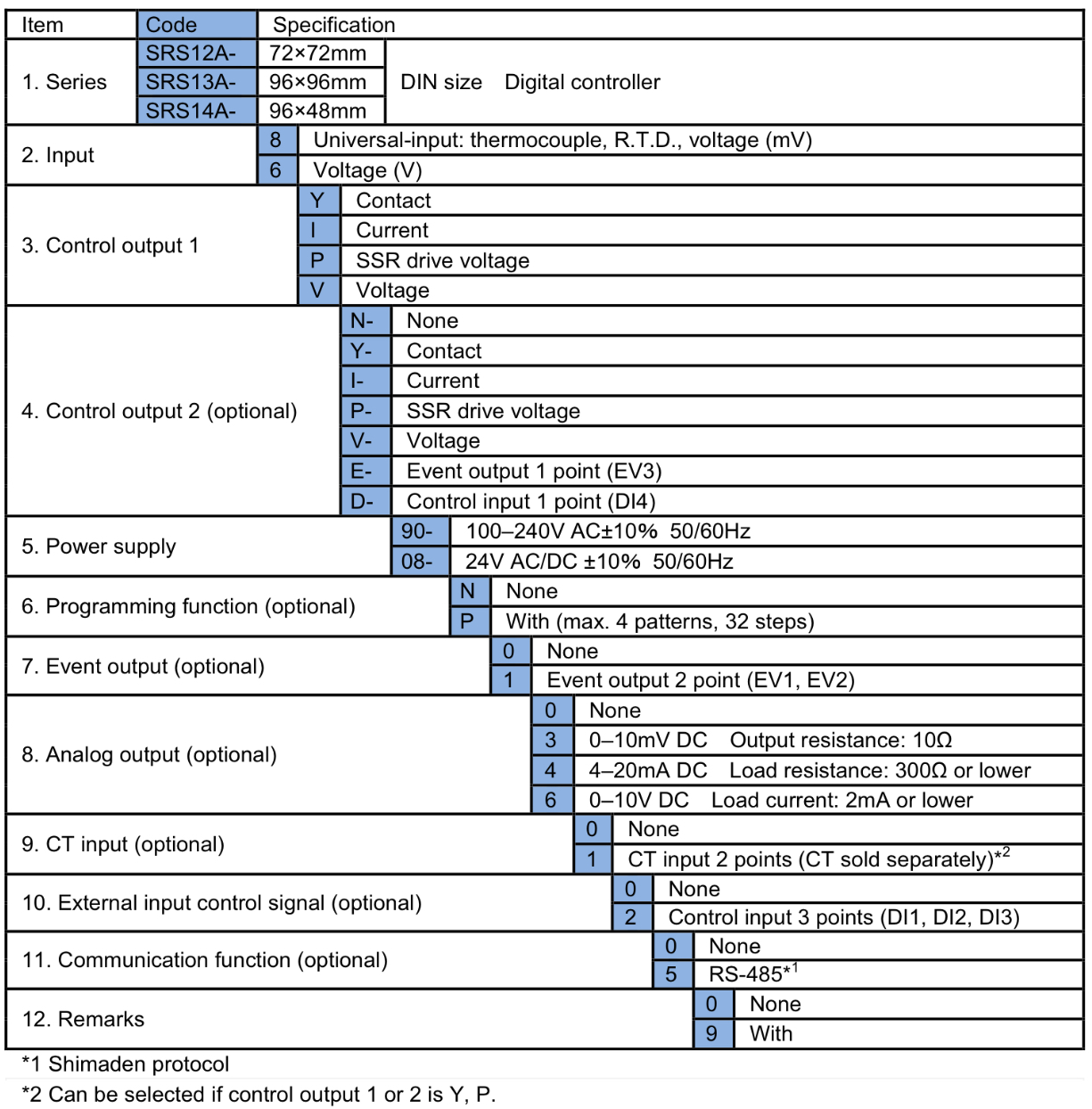

Type : SRS12A-8YN-90-N100000
SRS12A : DIN 72x72 Digital Controller
8 : INPUT Thermocouple: B, R, S, K, E, J, T, N, PLII, WRe5-26,{U, L (DIN43710)}, AuFe-Cr
R.T.D.: Pt100/JPt100 Voltage (mV): -10 – 10, 0 – 10, 0 – 20, 0 – 50, 0 – 100, 10 – 50mV DC
Y : CONTROL OUTPUT 1 Contact: 1a, Contact capacity: 240V AC 2A/resistive load Proportional cycle: 1 – 120 sec.
N- : CONTROL OUTPUT 2 (OPTION) None
90- : POWER SUPPLY 100 – 240V AC±10%, 50/60Hz
N : PROGRAM FUNCTION (OPTION) None
1 : EVENT OUTPUT(OPTION) Event output 2 points (EV1, EV2)
0 : ANALOG OUTPUT (OPTION) None
0 : CT INPUT (OPTION)None
0 : EXTERNAL INPUT CONTROL SIGNAL (DI)(OPTION) None
0 : CONMMUNICATION FUNCTION(OPTION) None
0 : REMARKS Without
Brand: Shimaden
How to Shimaden SRS Standard
How to Shimaden SRS Programmer
How to Shimaden SRS Manual Output
Origin: Made in Japan 100%
SRS12A Product Catalog
