HopeBurner Type SGL-3

HopeBurner Type SGL-3
  • フレームジェットガスバーナーFlame Jet Gas Burner: HopeBurner Type SGL-3
  • รุ่นType型式: SGL-3
  • แคลอรี่Max capacity燃焼容量: 372kW(320x1,000kcal/h)
  • แก๊สเข้าGas Inlet Pressure基準圧ガス: 2~10kPa(20~100mBar),อากาศAir Inlet Pressure基準圧エアー: 6kPa (60mBar)
  • ขนาดท่อแก๊สGas Inlet接続口径ガス: RC 1.1/2", ท่ออากาศเข้าAir Inlet続口径エアー: RC 3"
  • Circumstanes temperature : 1400'C
  • Applications: This burner can mix the furnace by the high-speed heating gas at 60-80m/sec.So,distributed heating is uniform.The ratio of turndown is high, 10:1. Therefore this burner can be used for hot air.
  • ยี่ห้อBrand: HOPE
  • Made in Japan
  • HopeBurner Type SGL-3 (1)

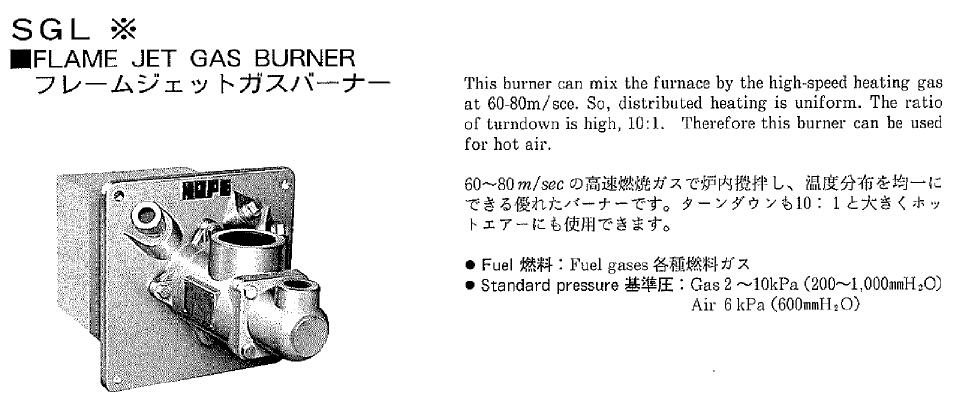

  • Flame Jet Gas Burner
  • Flame Jet Gas Burner Dimension and Flame Pattern
  • HopeBurner Type SGL-3 (2)
  • HopeBurner Type SGL-3 (3)
  • HopeBurner Type SGL-3 (5)
  • HopeBurner Type SGL-3 (6)
  • HopeBurner Type SGL-3 (7)
  • HopeBurner Type SGL-3 (8)
  • HopeBurner Type SGL-3 (9)
  • HopeBurner Type SGL-3 (10)
  • HopeBurner Type SGL-3 (11)
  • HopeBurner Type SGL-3 (12)

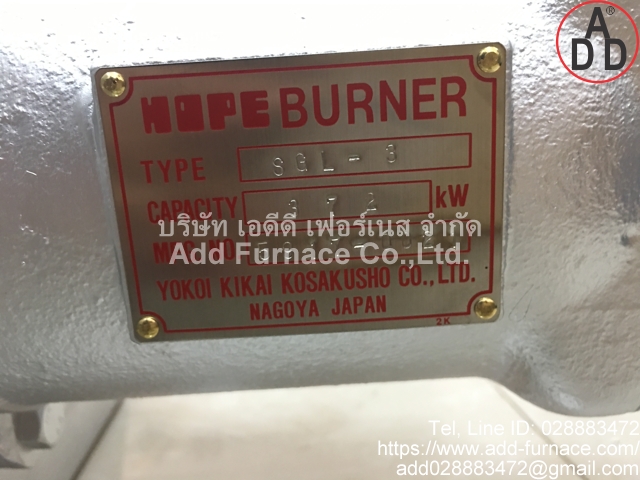

  • HopeBurner Type SGL-3 (13)
