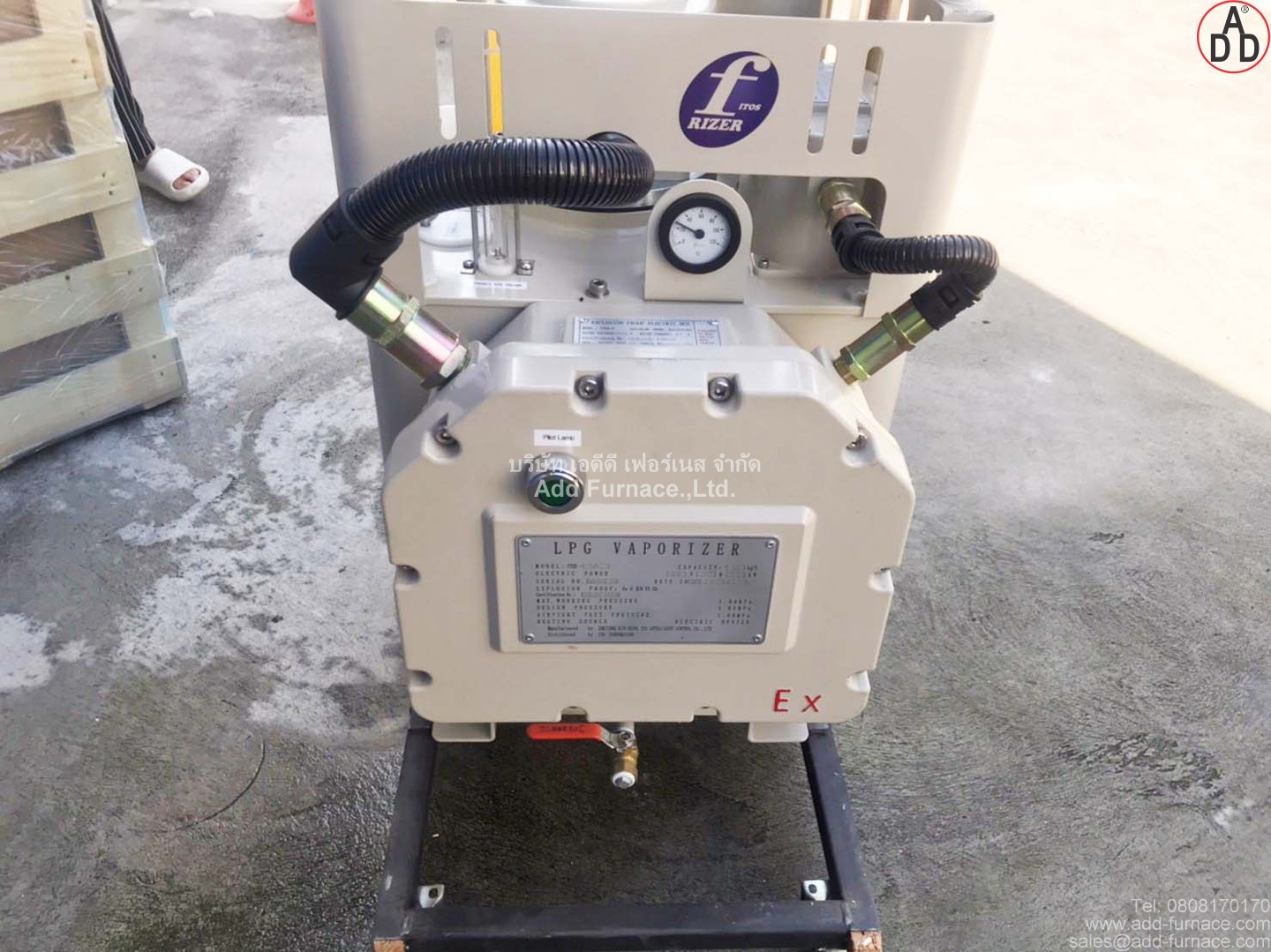

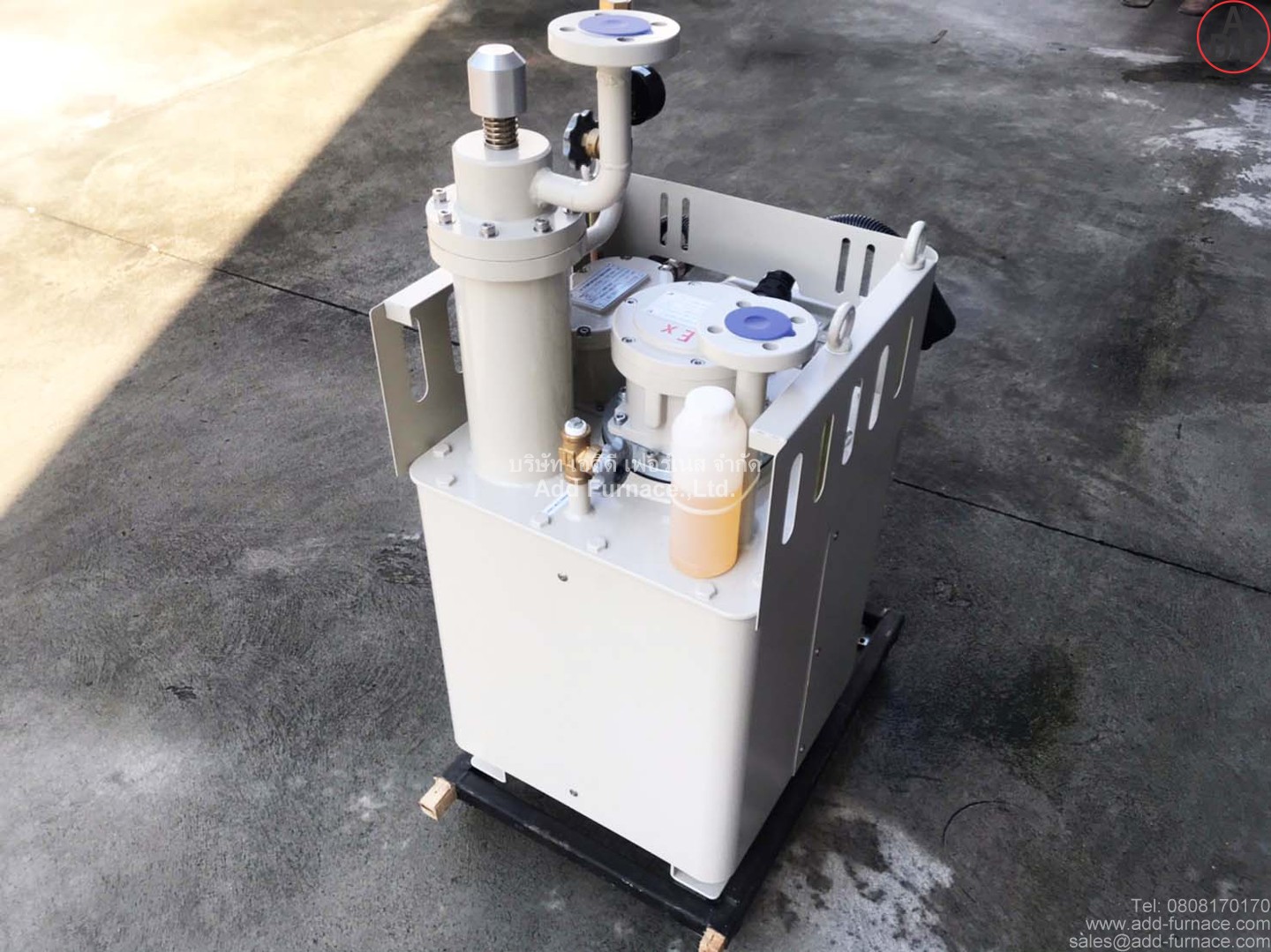

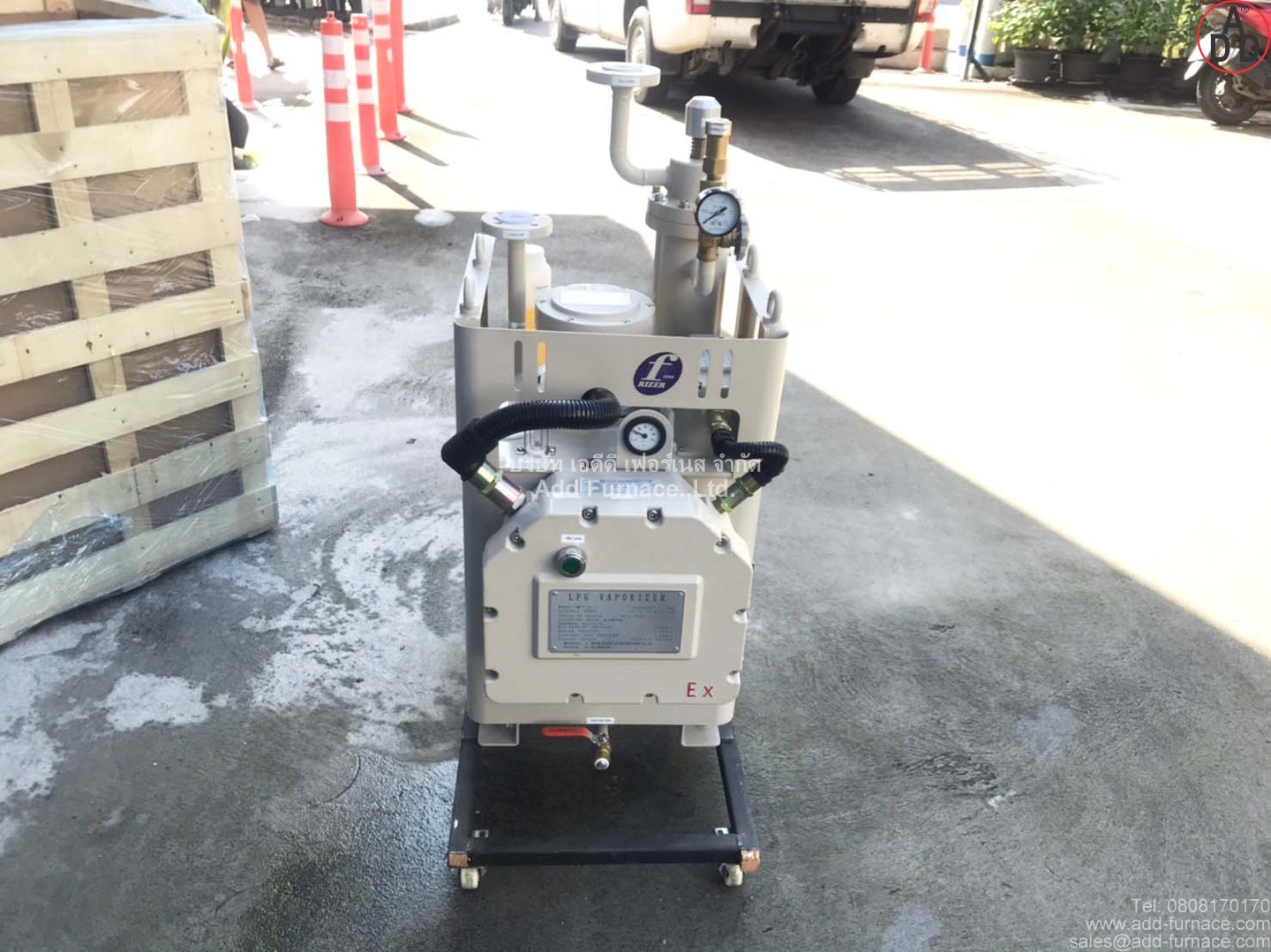

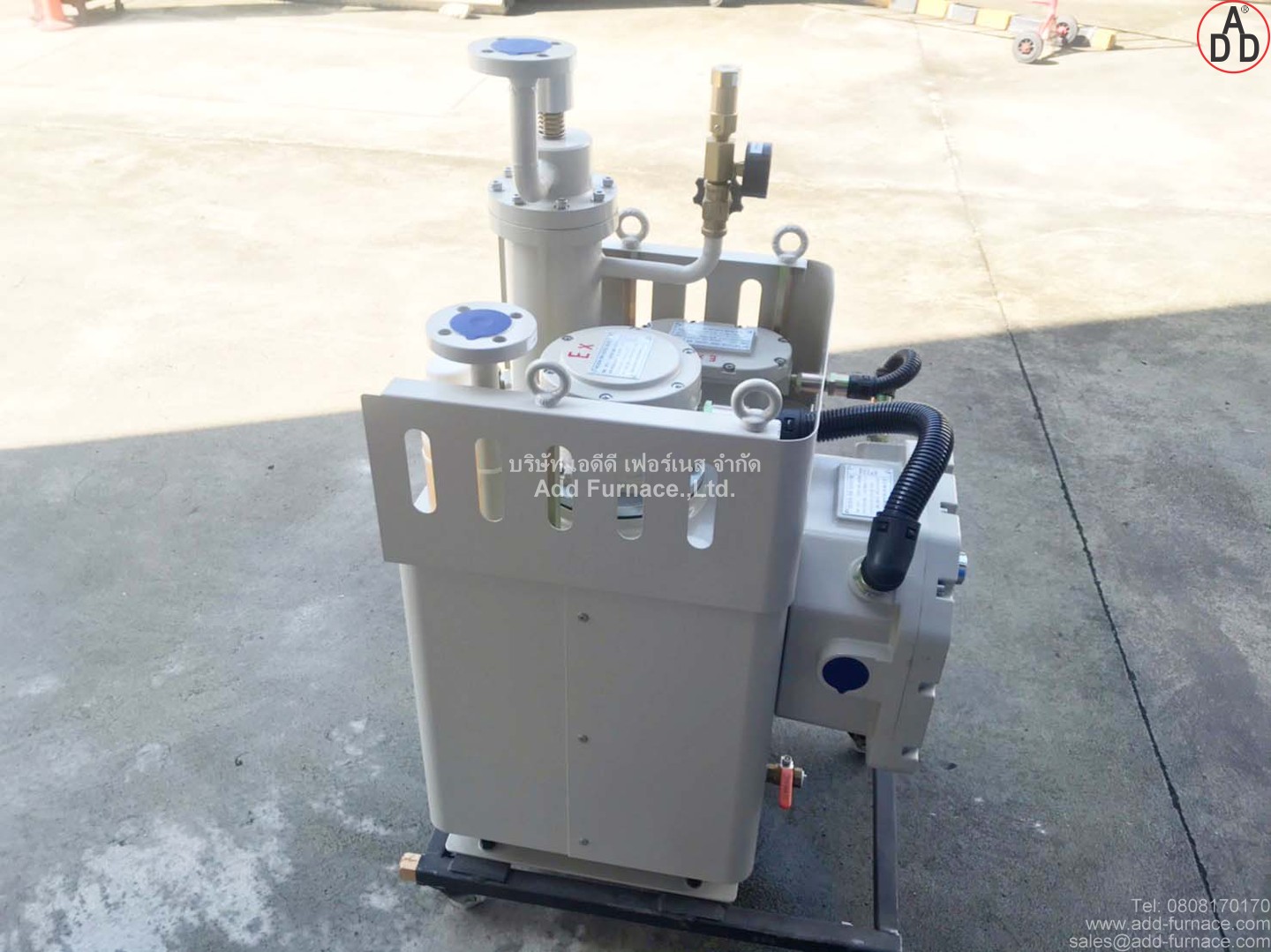

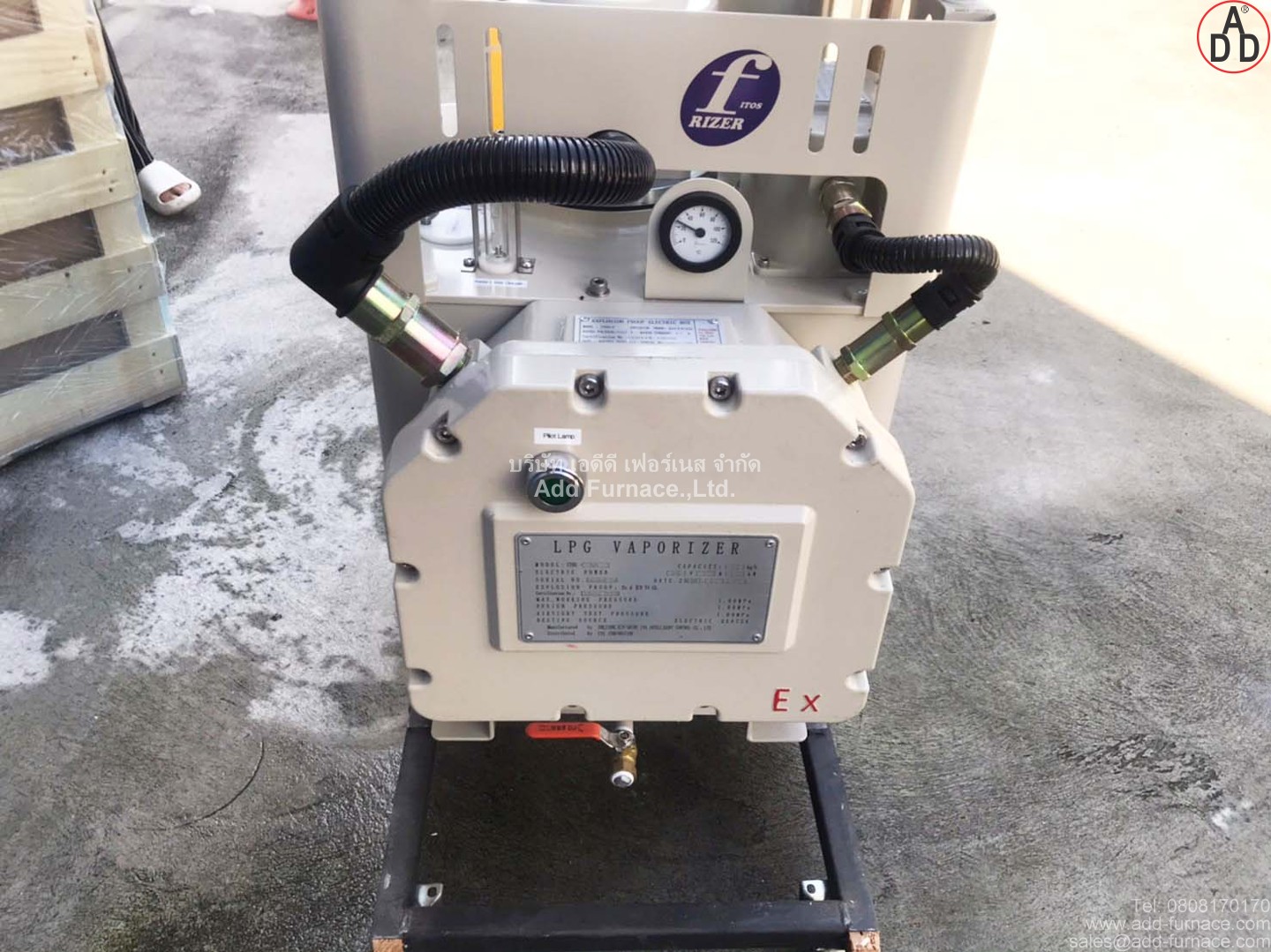

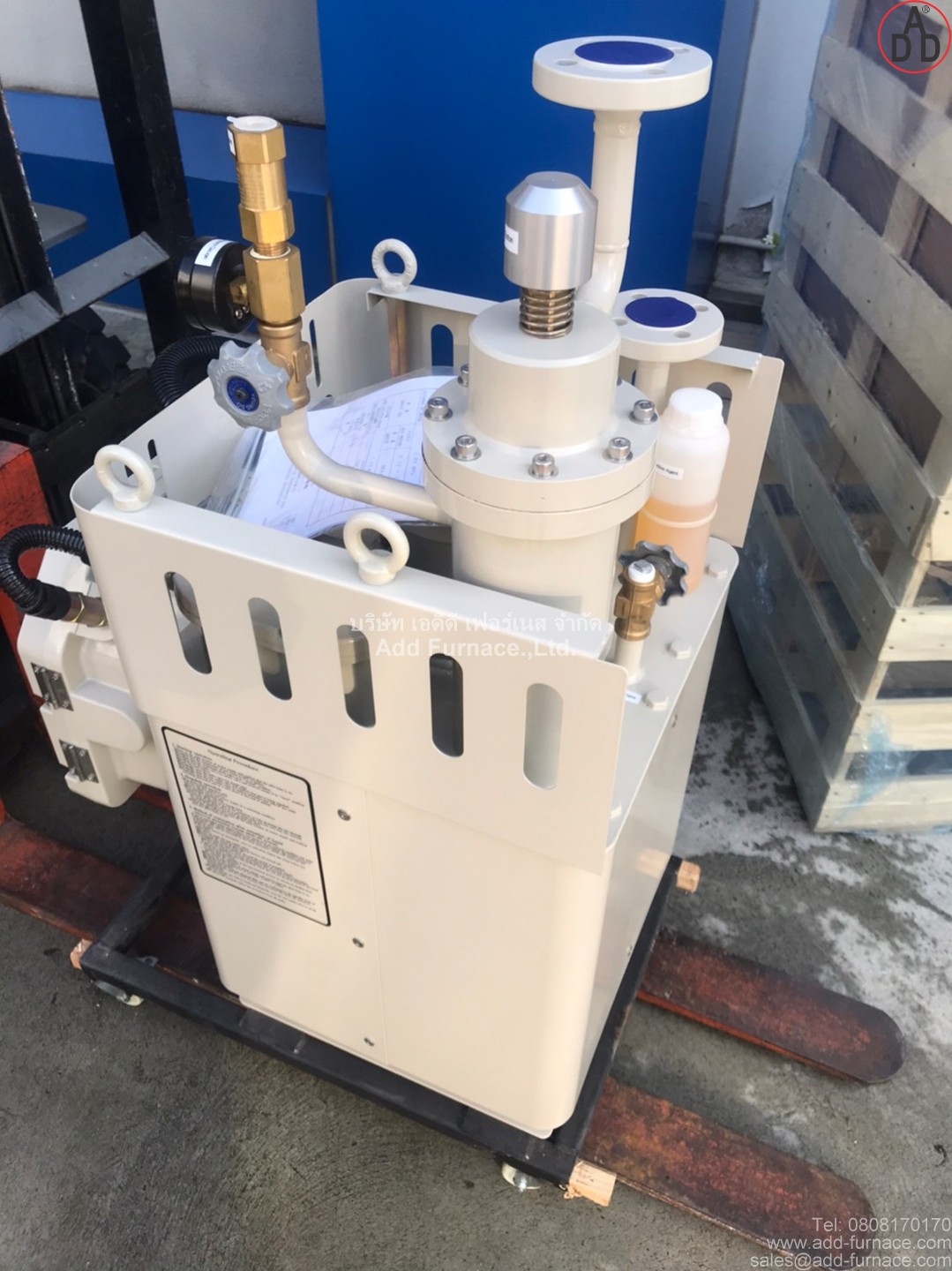

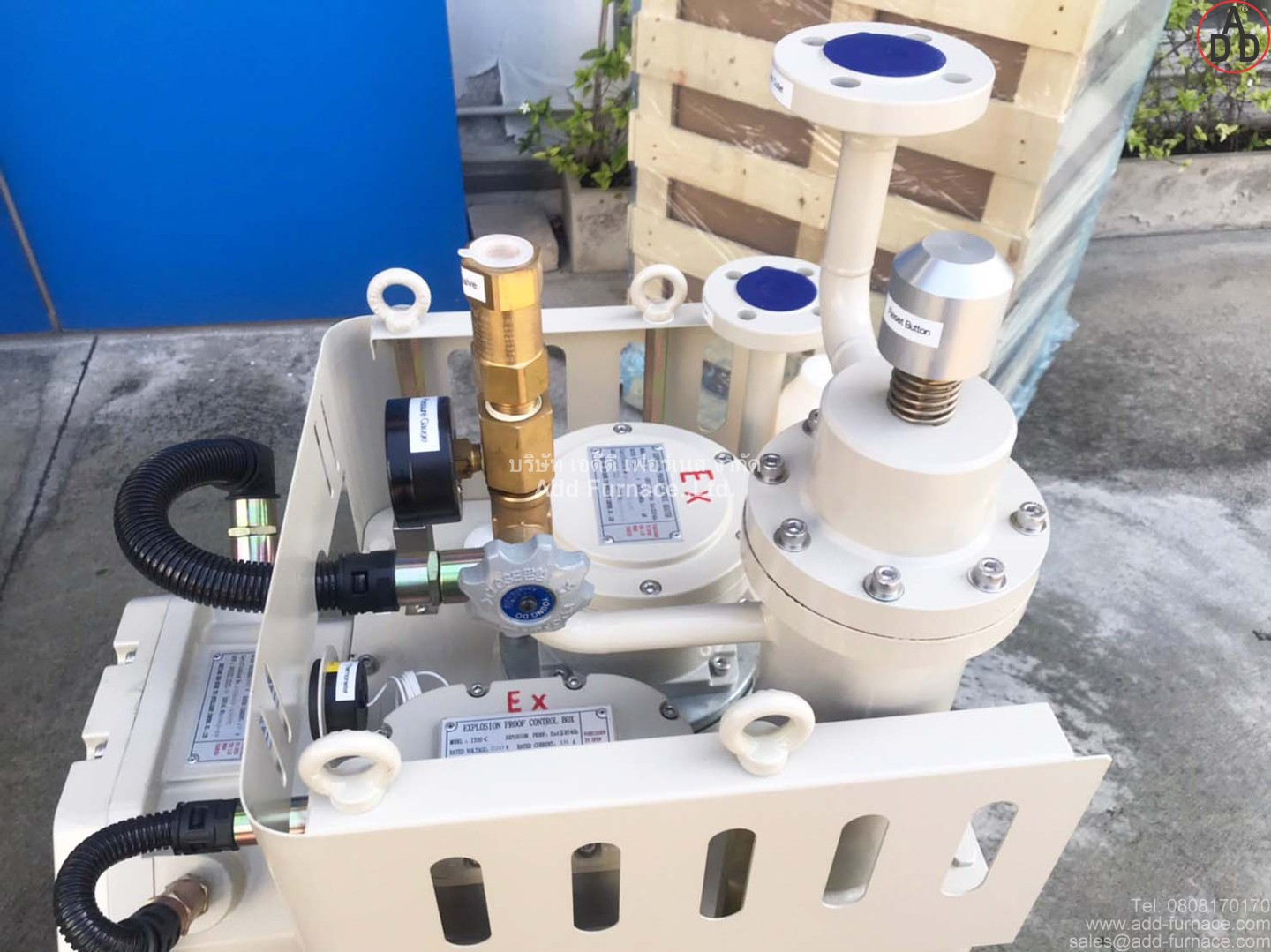

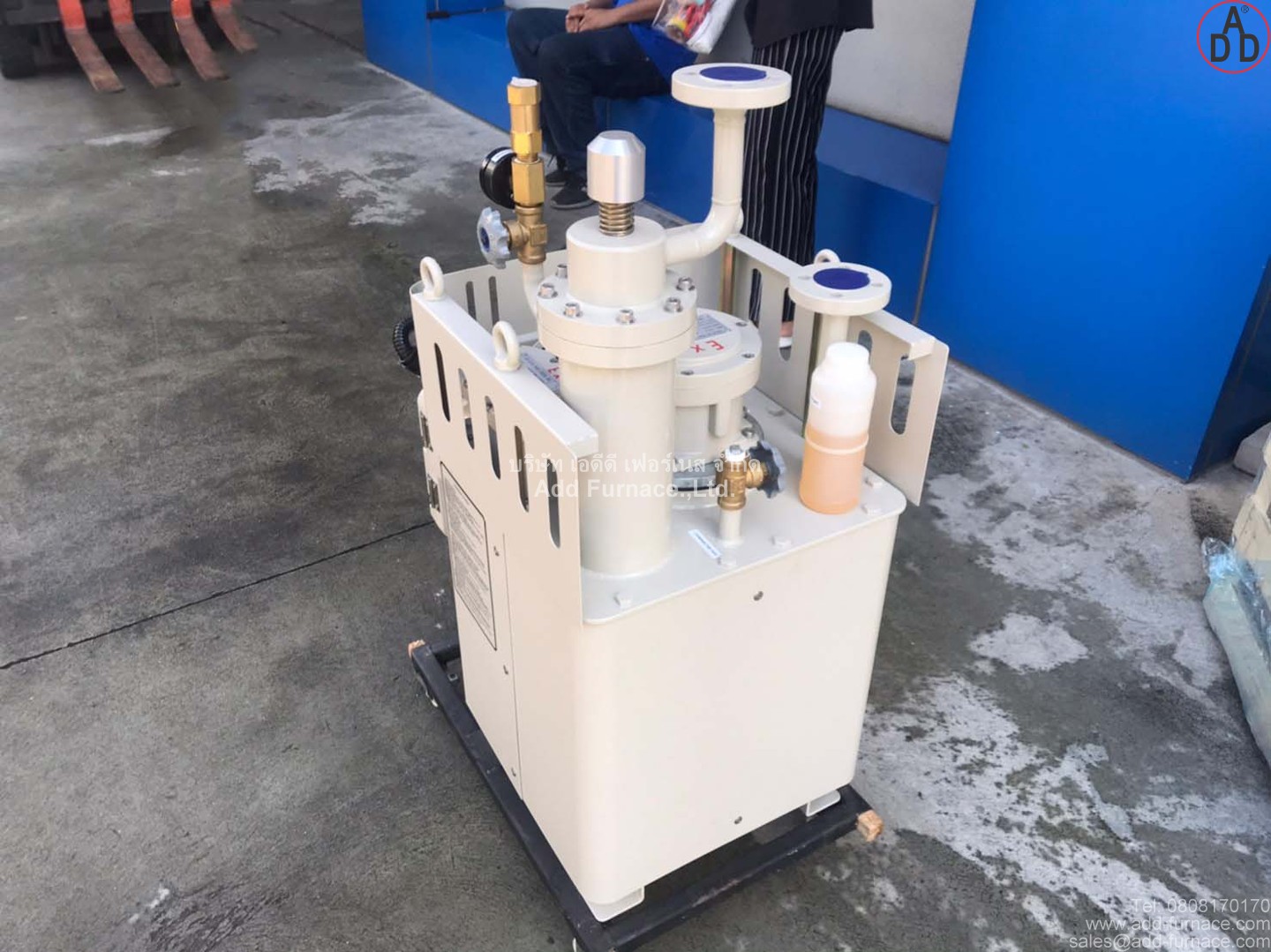

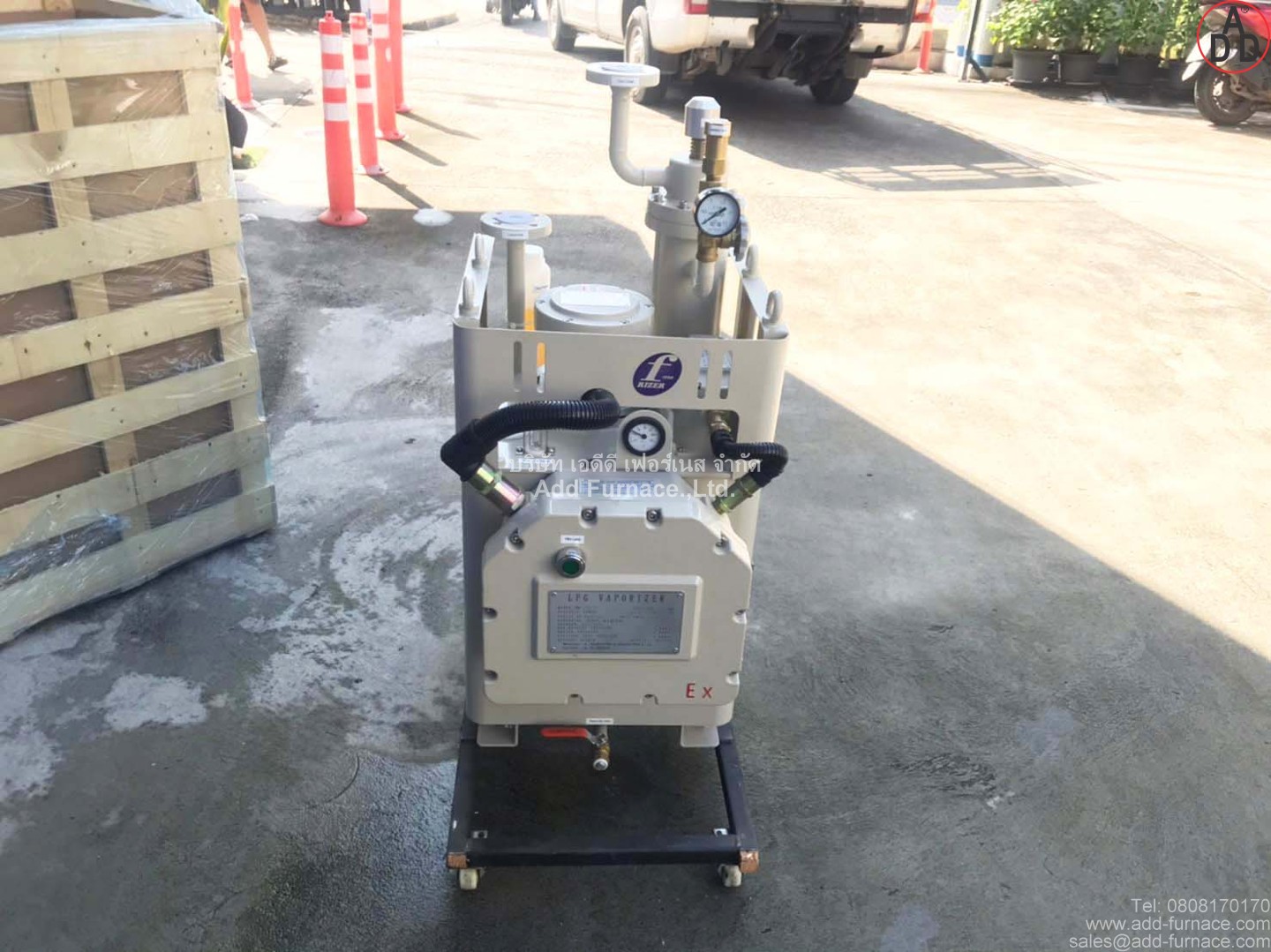

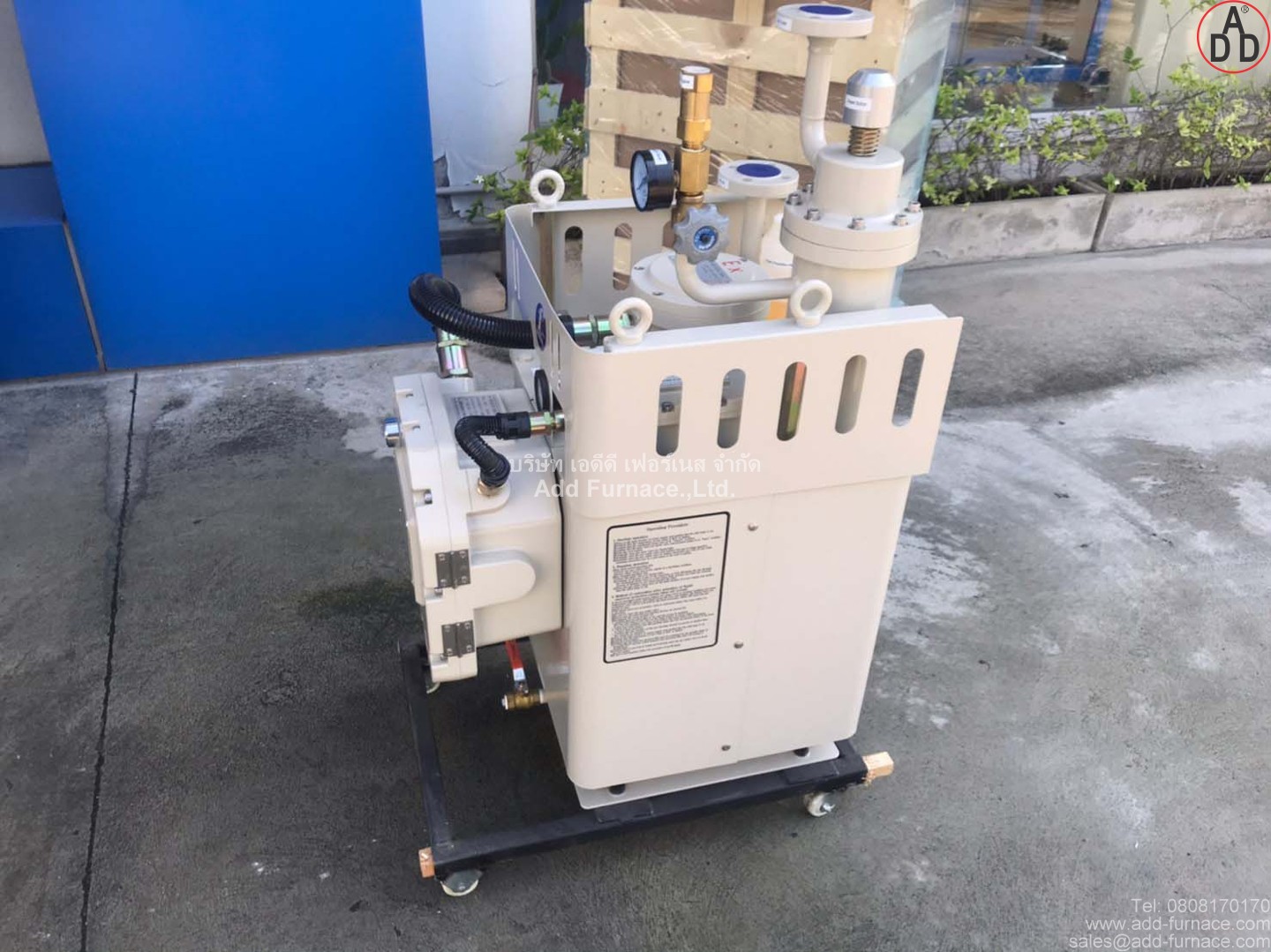

Electrical Heating Type Vaporisers ITOS-50

Electrical Heating Type Vaporisers ITOS-50

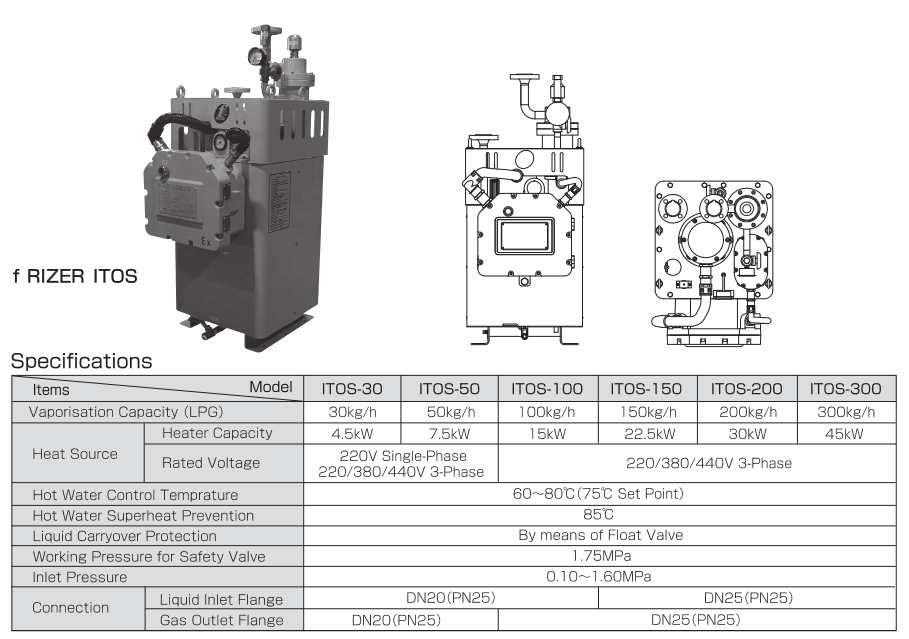

  • Electrical Heating Type Vaporisers

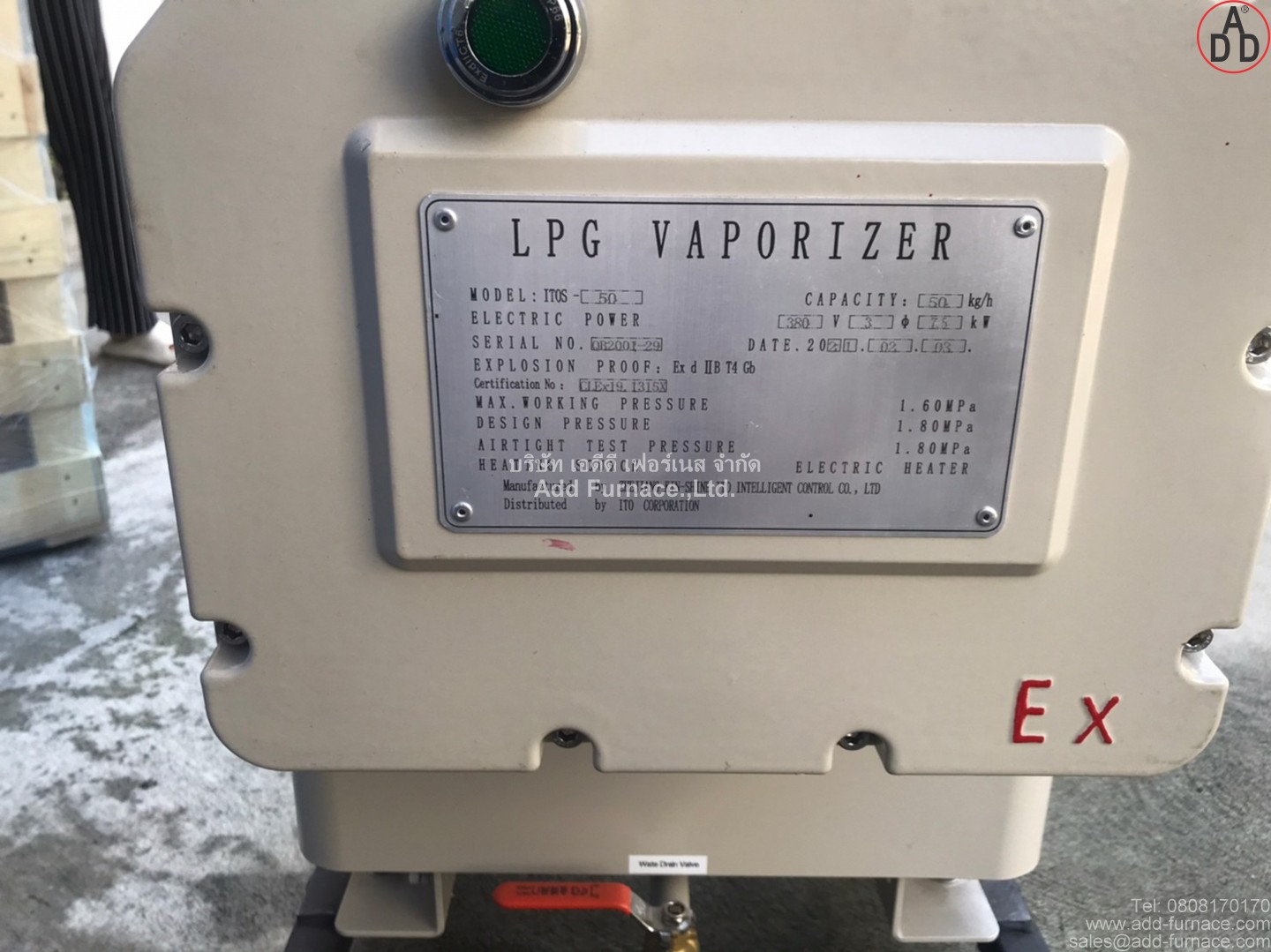

  • Model : ITOS-50
  • Capacity : 50kg/h
  • Electric Power : 380V 3-phase
  • Heater Capacity : 7.5kW

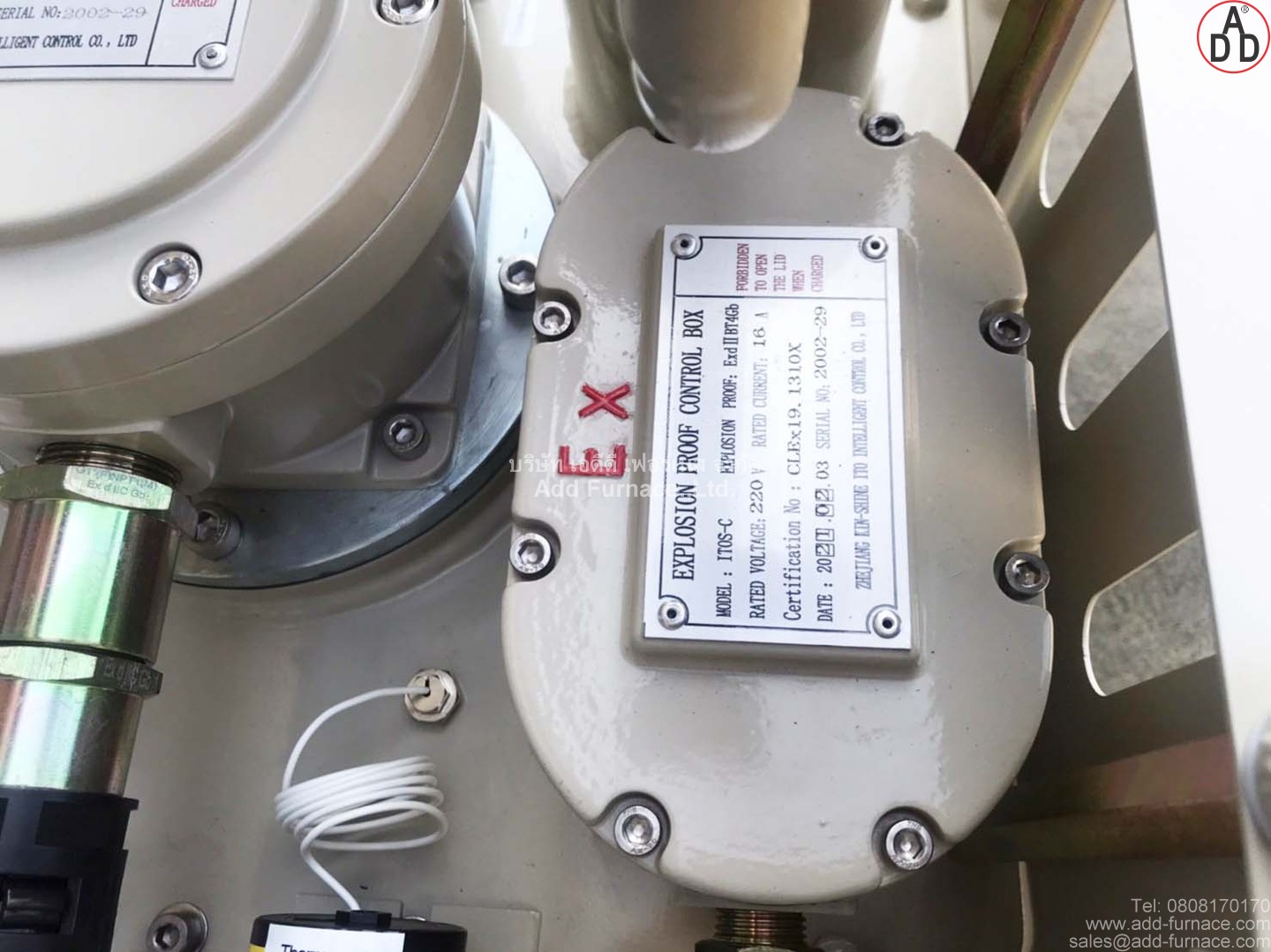

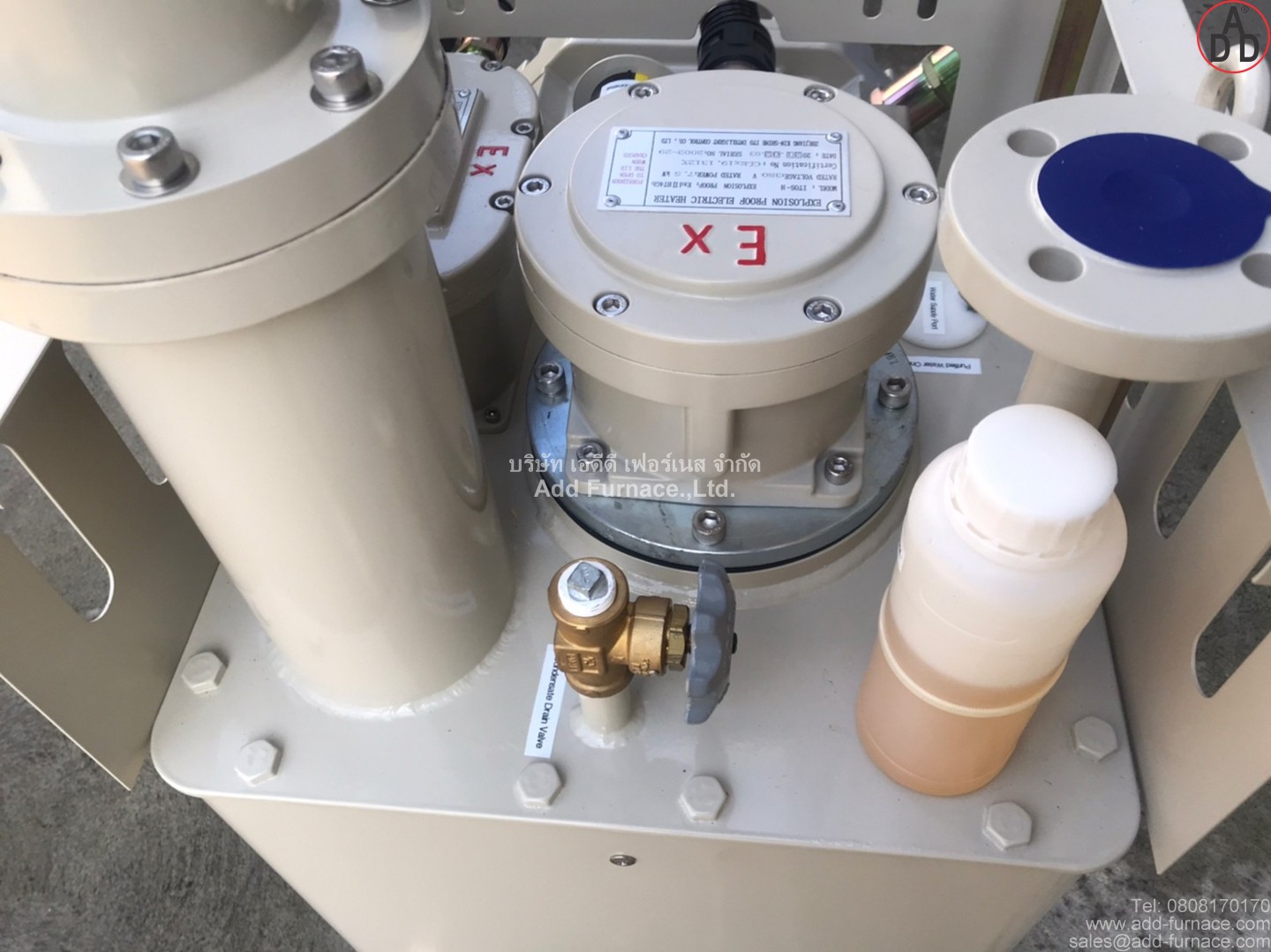

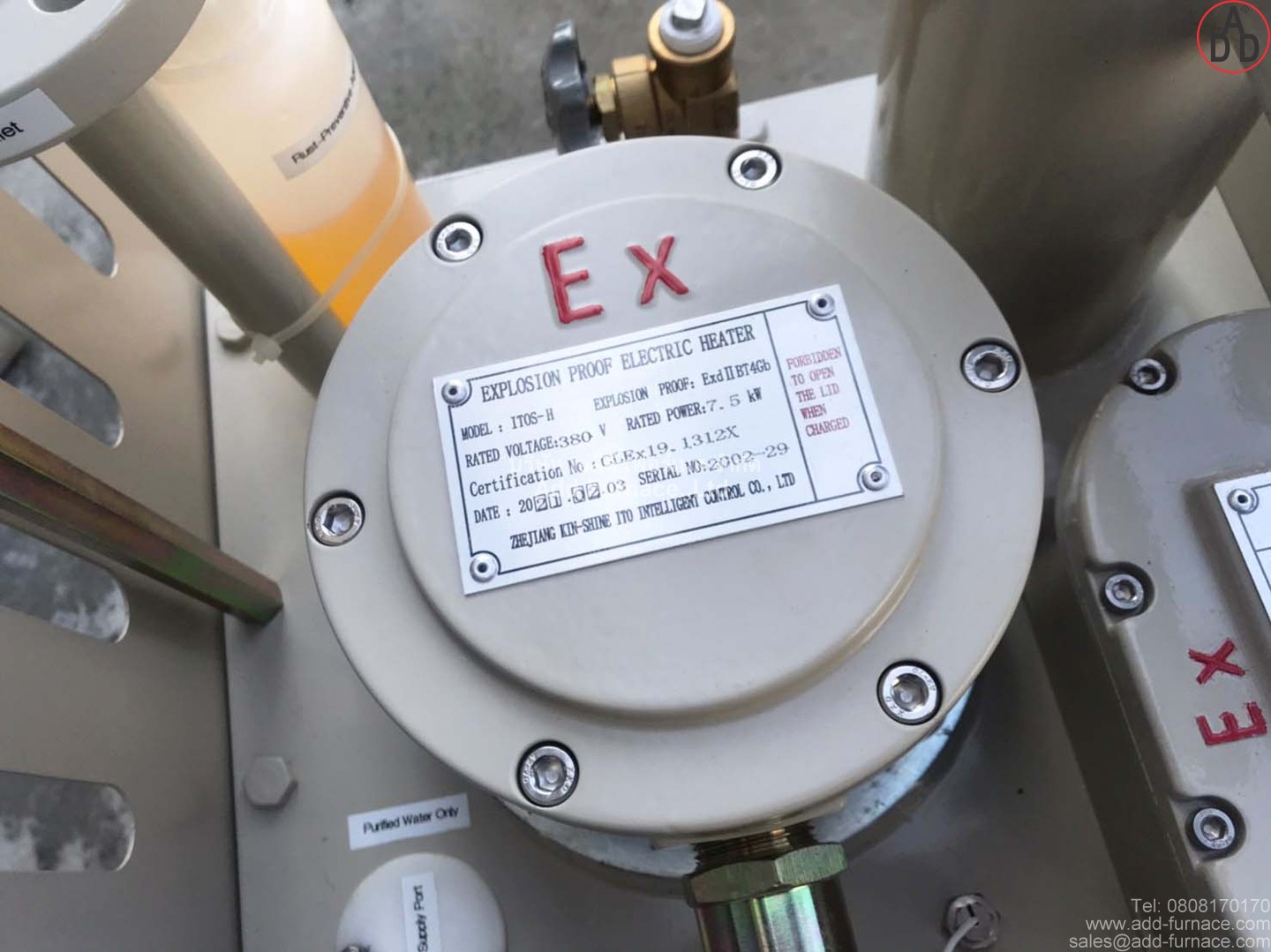

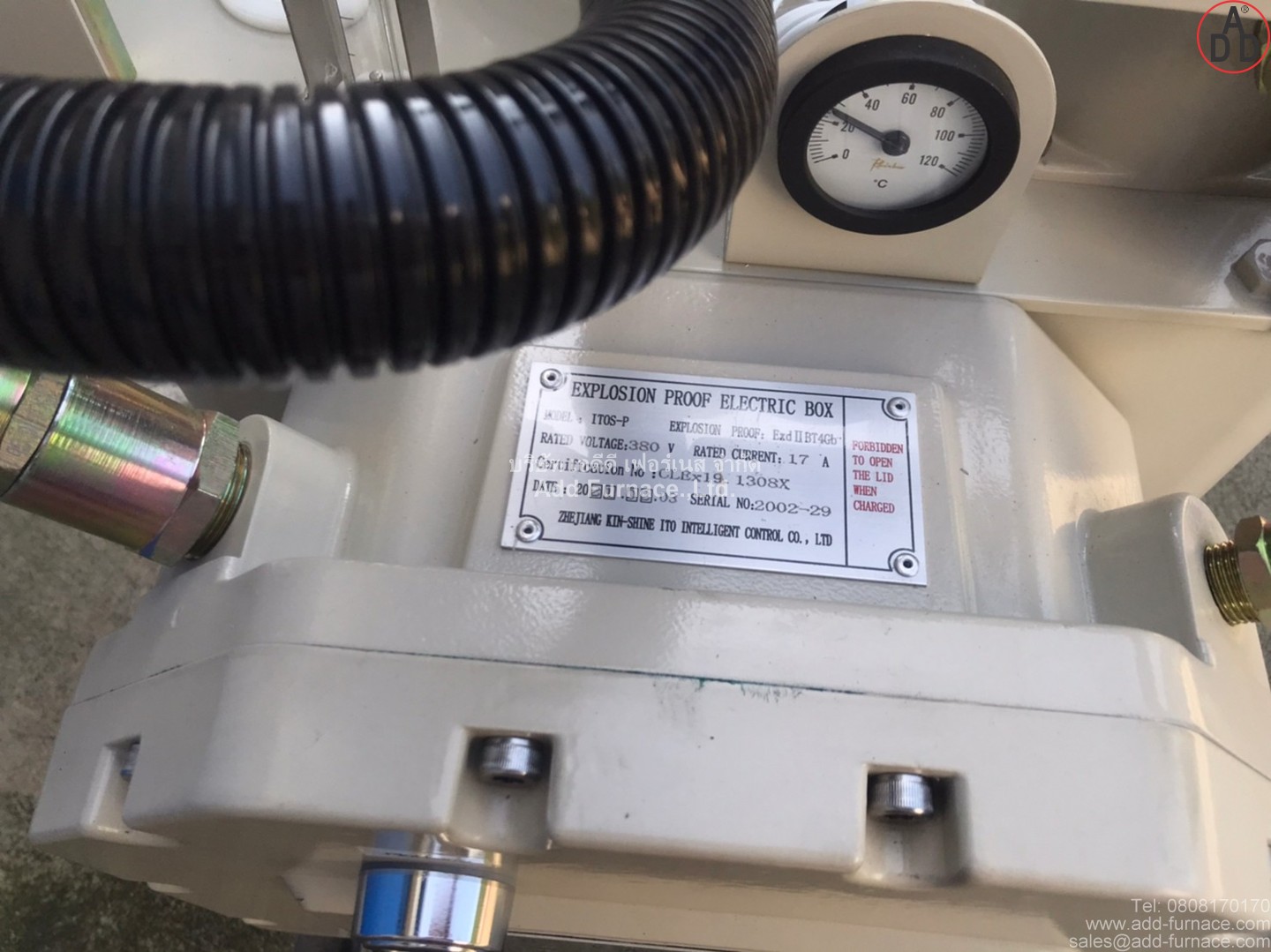

  • Explosion Proof : Ex d IIB T4 Gb
  • Inlet Pressure : 1.60MPa
  • Design Pressure : 1.80MPa
  • Airtight Test Pressure : 1.80MPa
  • Hydrostatic Test : 2.70MPa

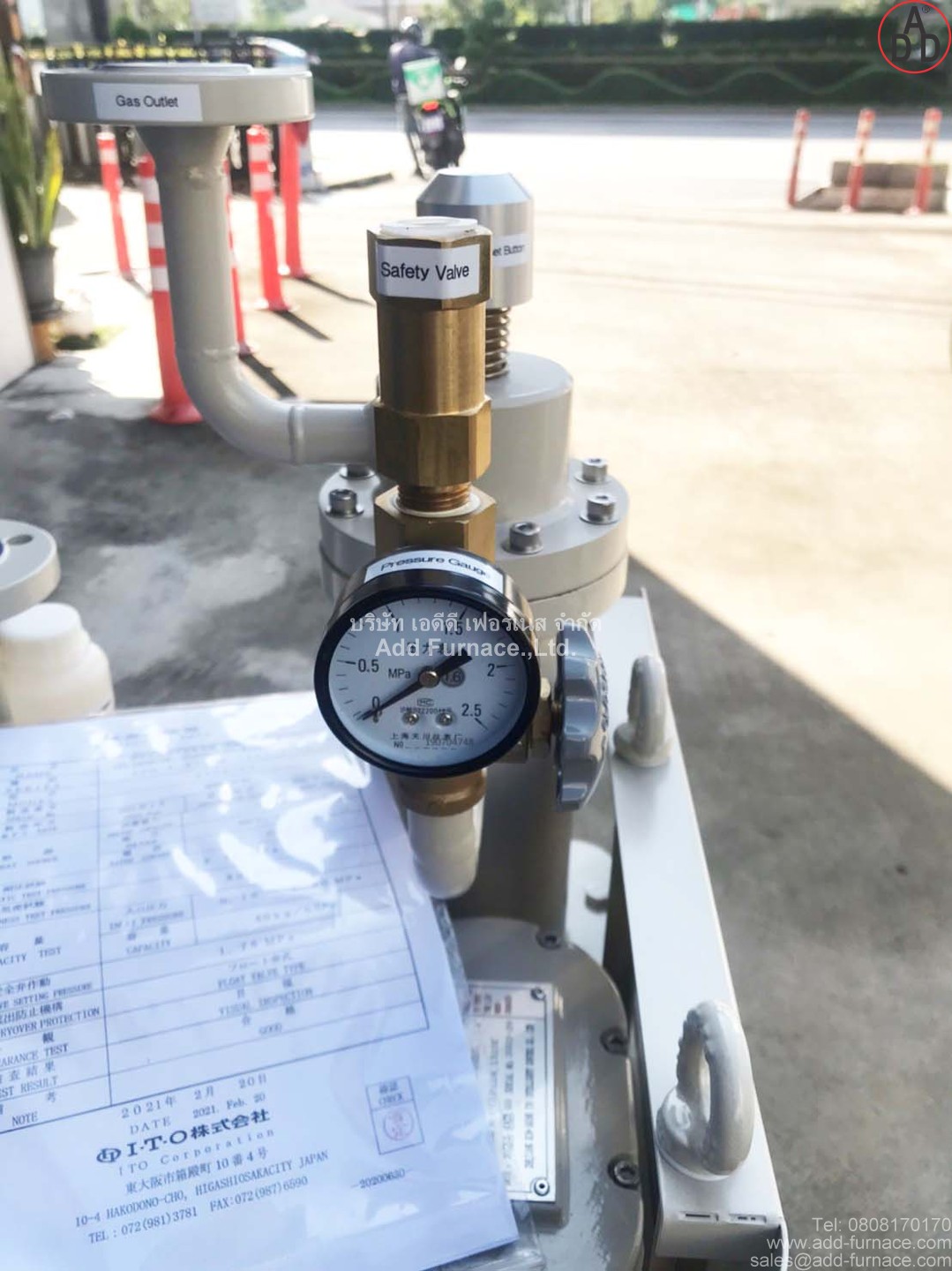

  • Working Pressure for Safety Valve : 1.75MPa
  • Working Temperature : -25-60˚C
  • Connection Liquid Inlet : DN20 Flange(PN25)
  • Connection Gas Outlet : DN20 Flange(PN25)
  • Gas Type : LPG

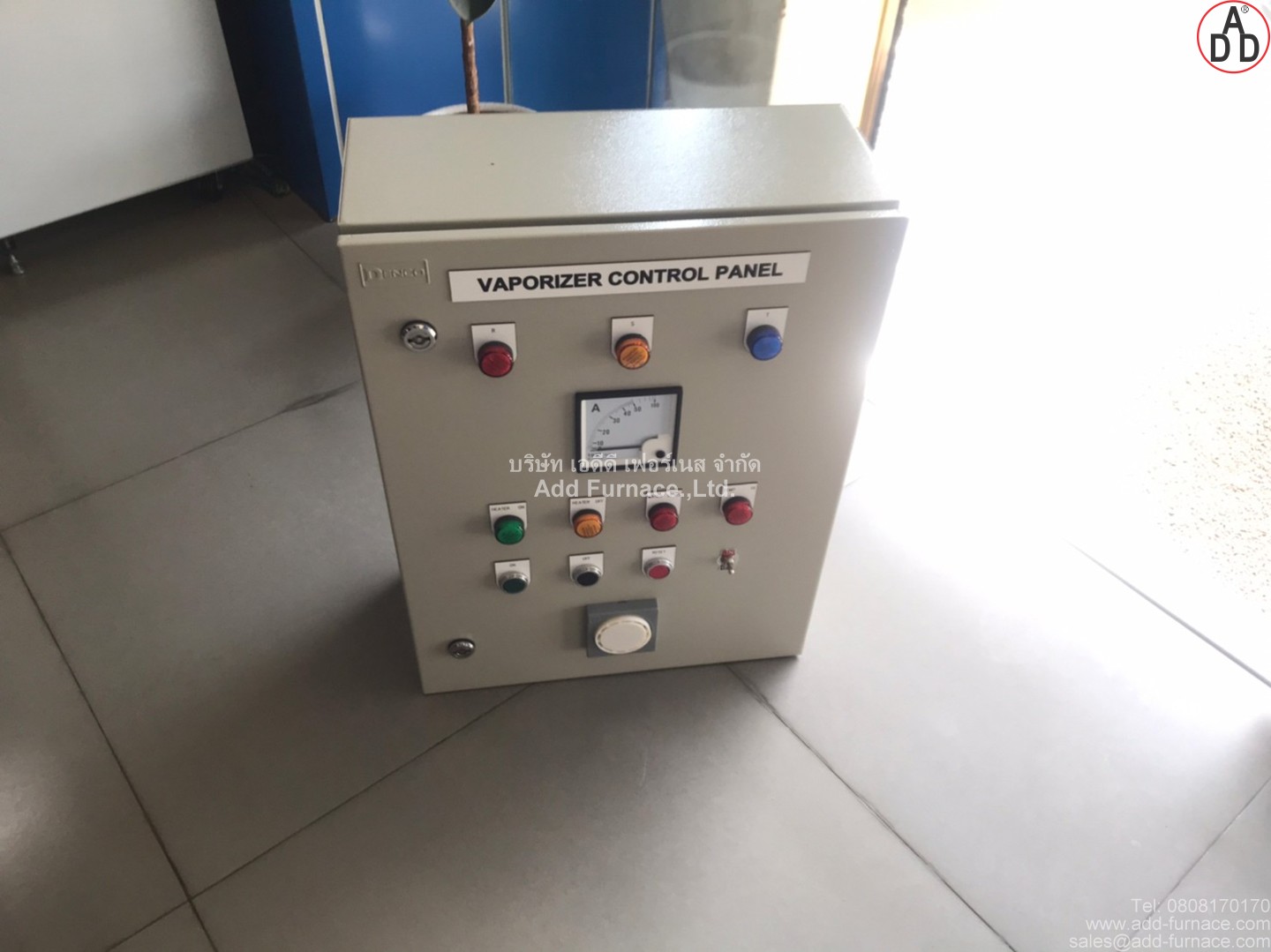

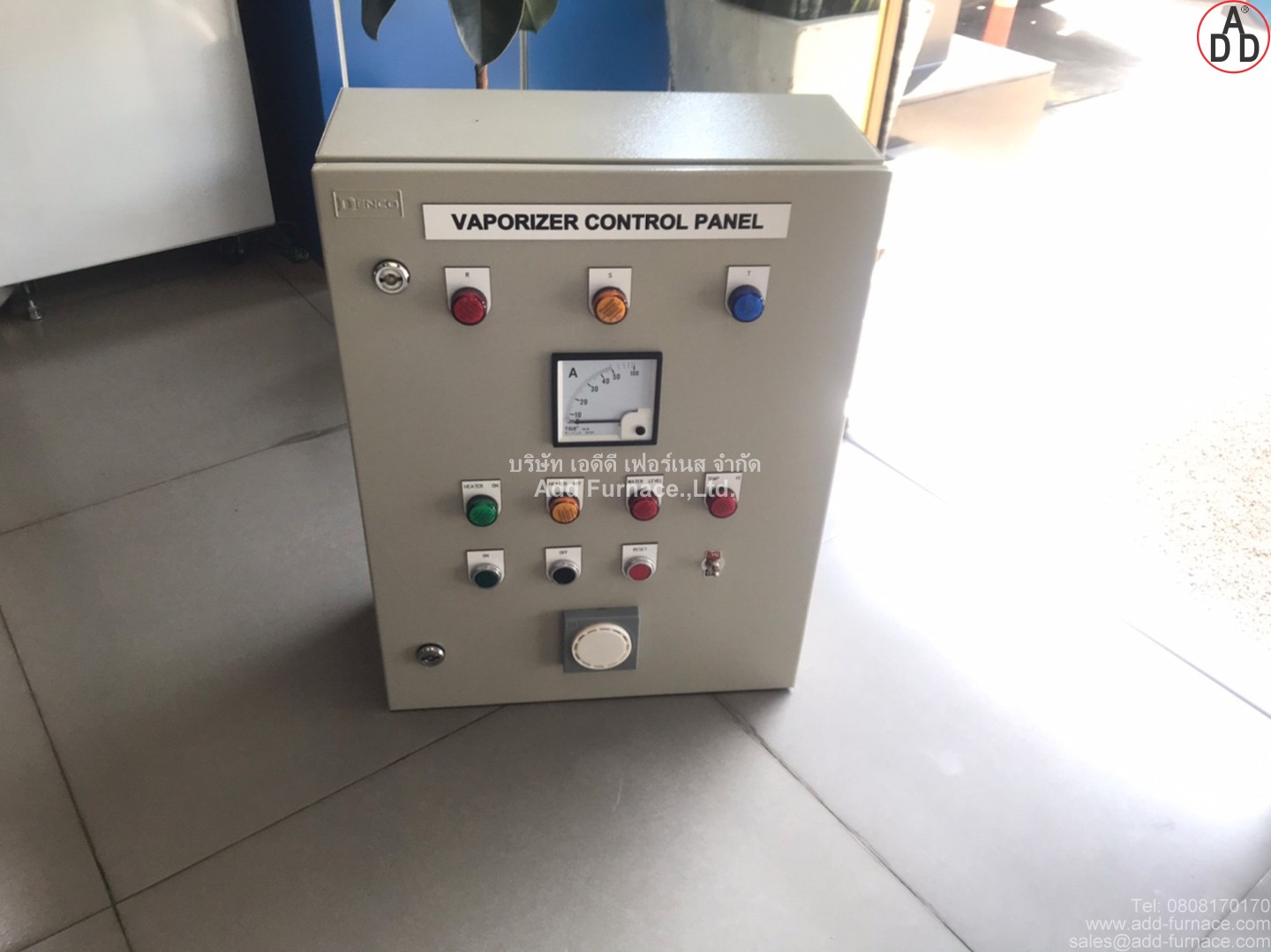

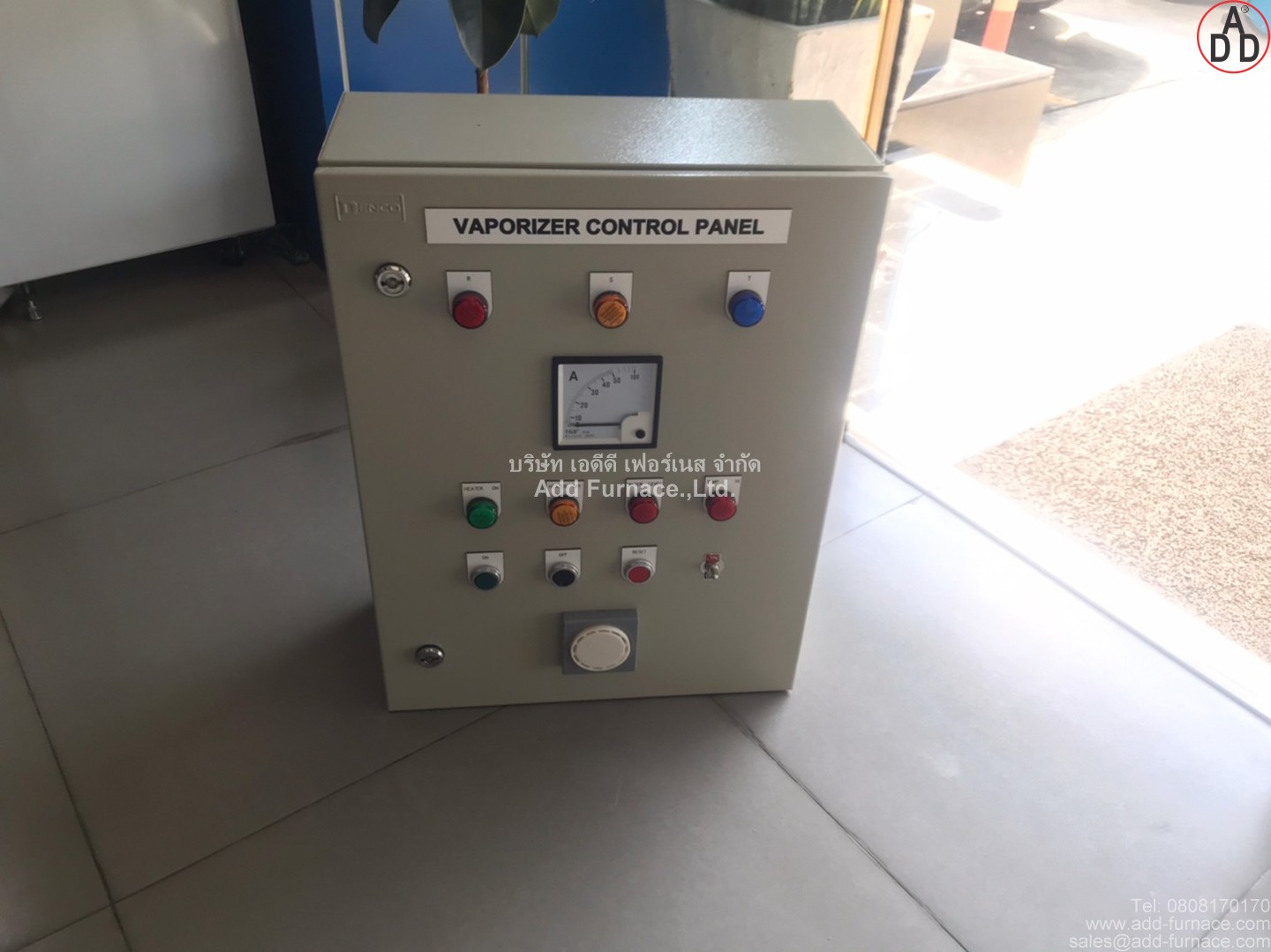

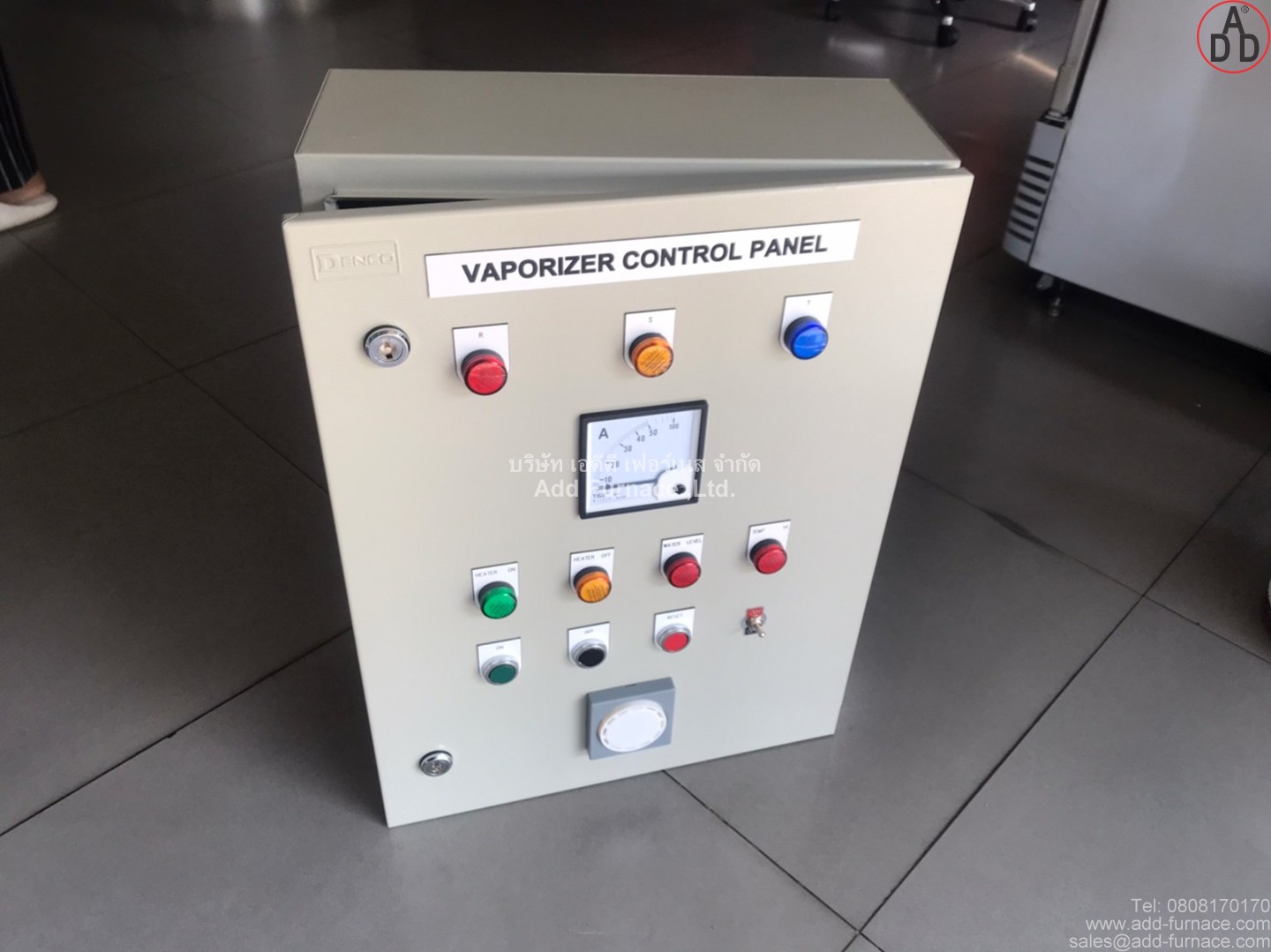

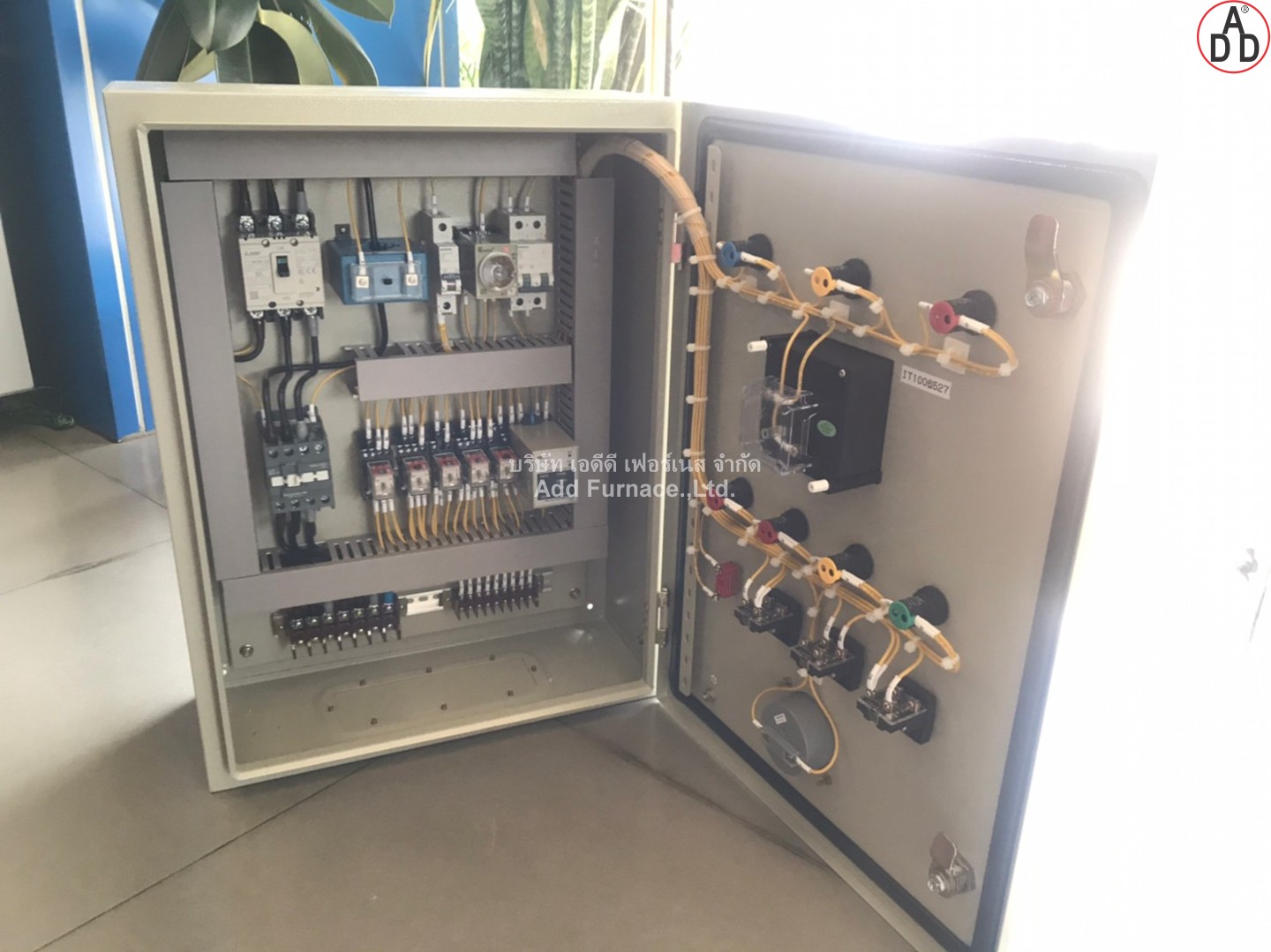

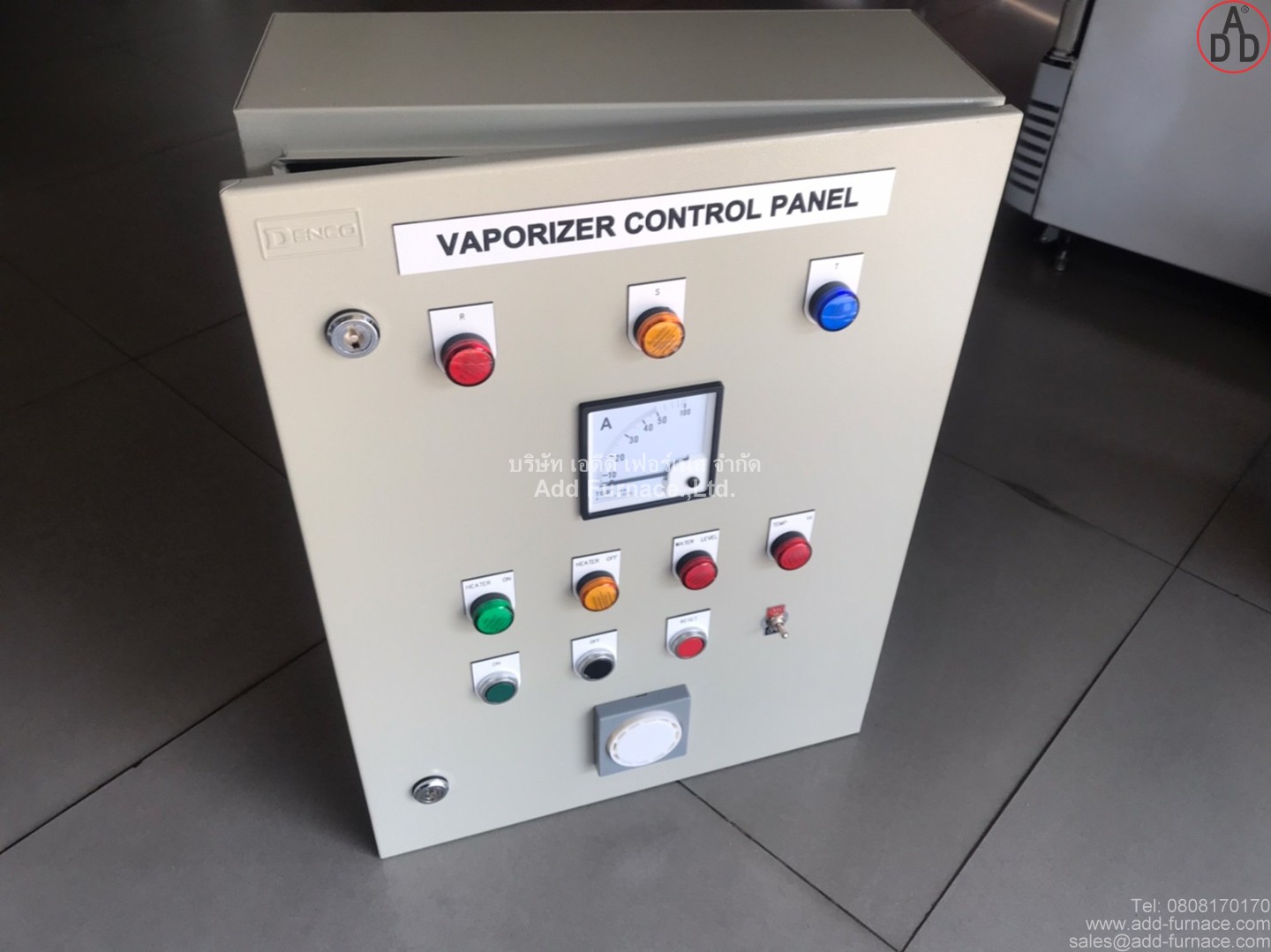

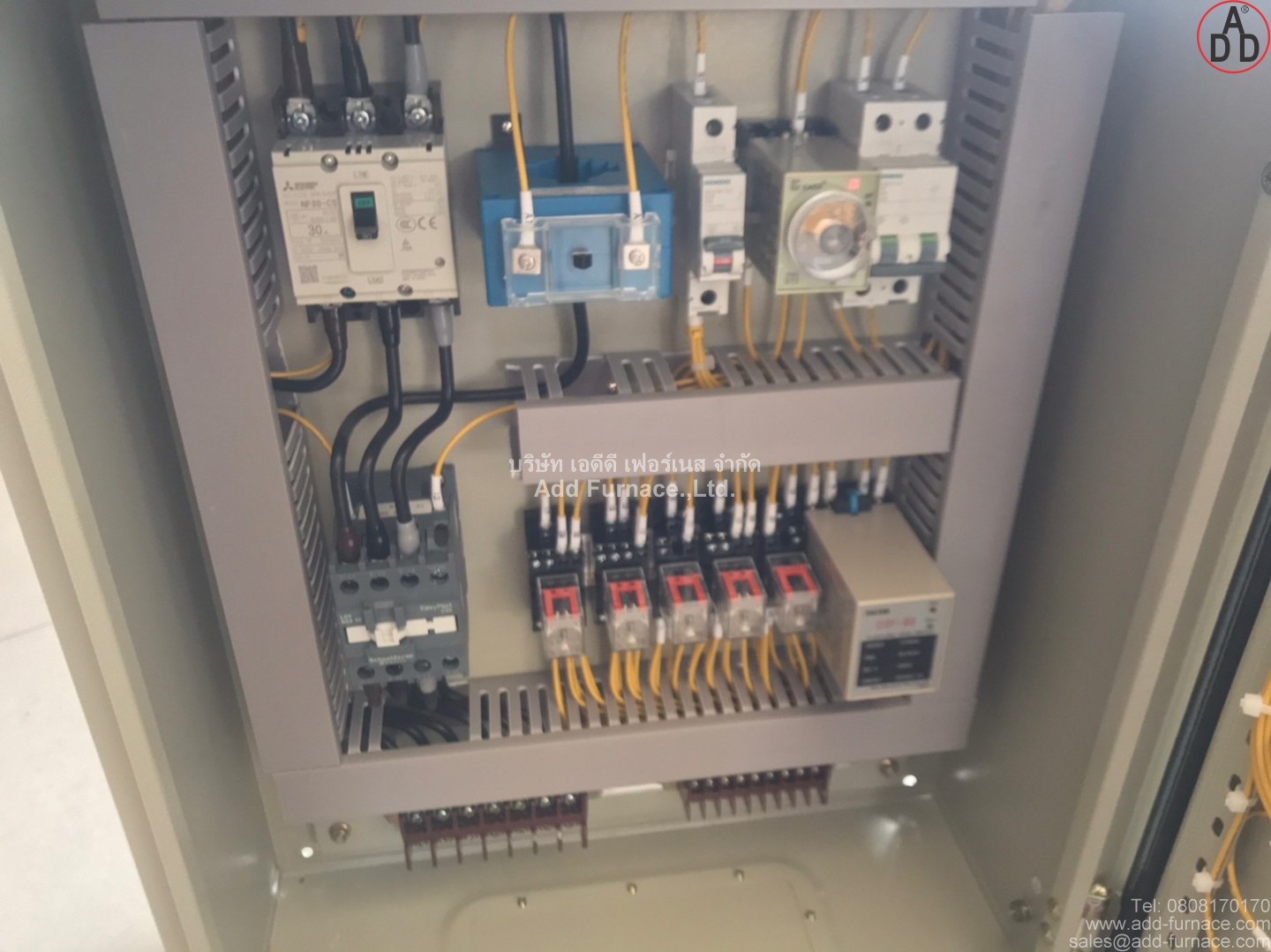

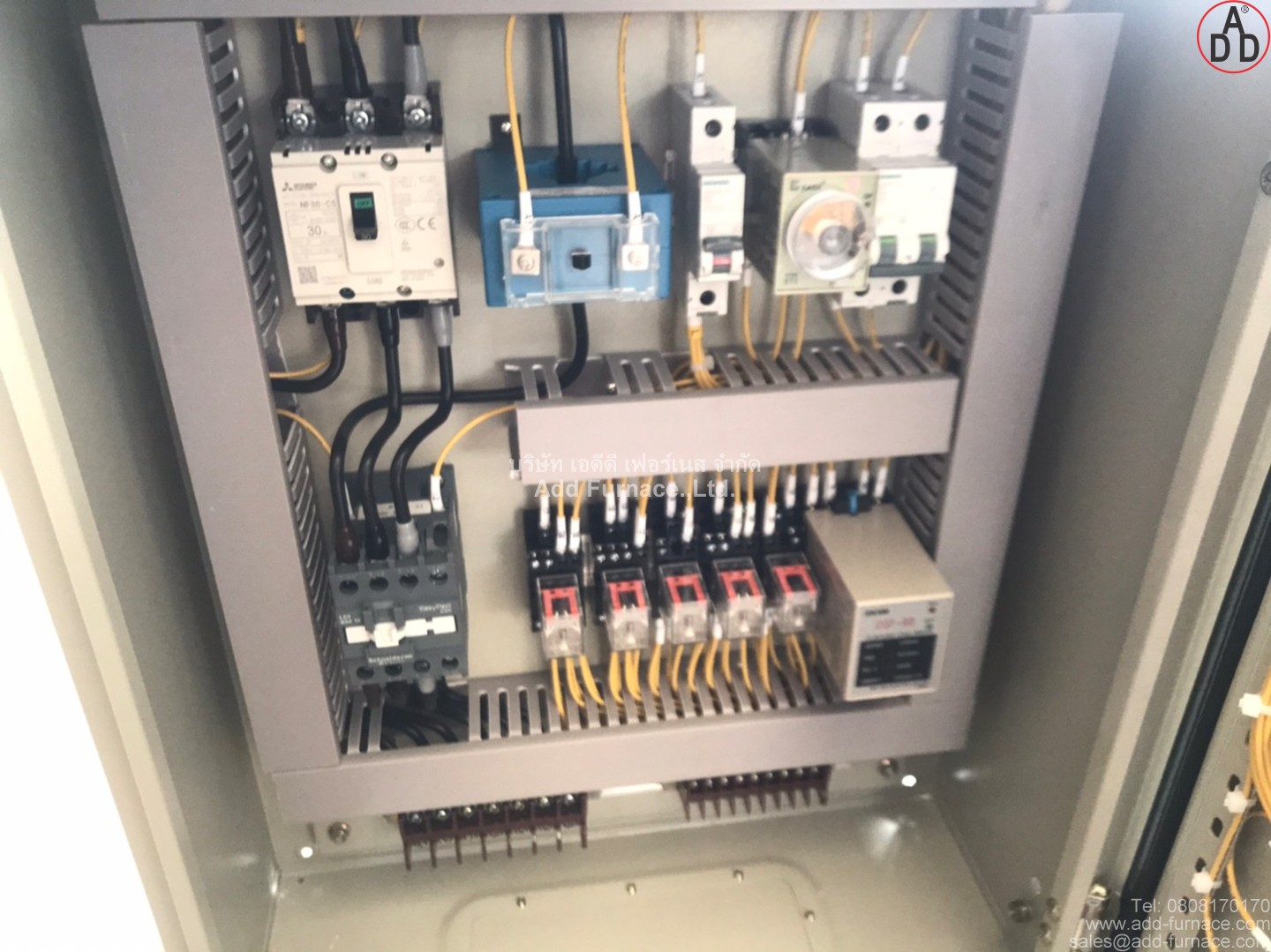

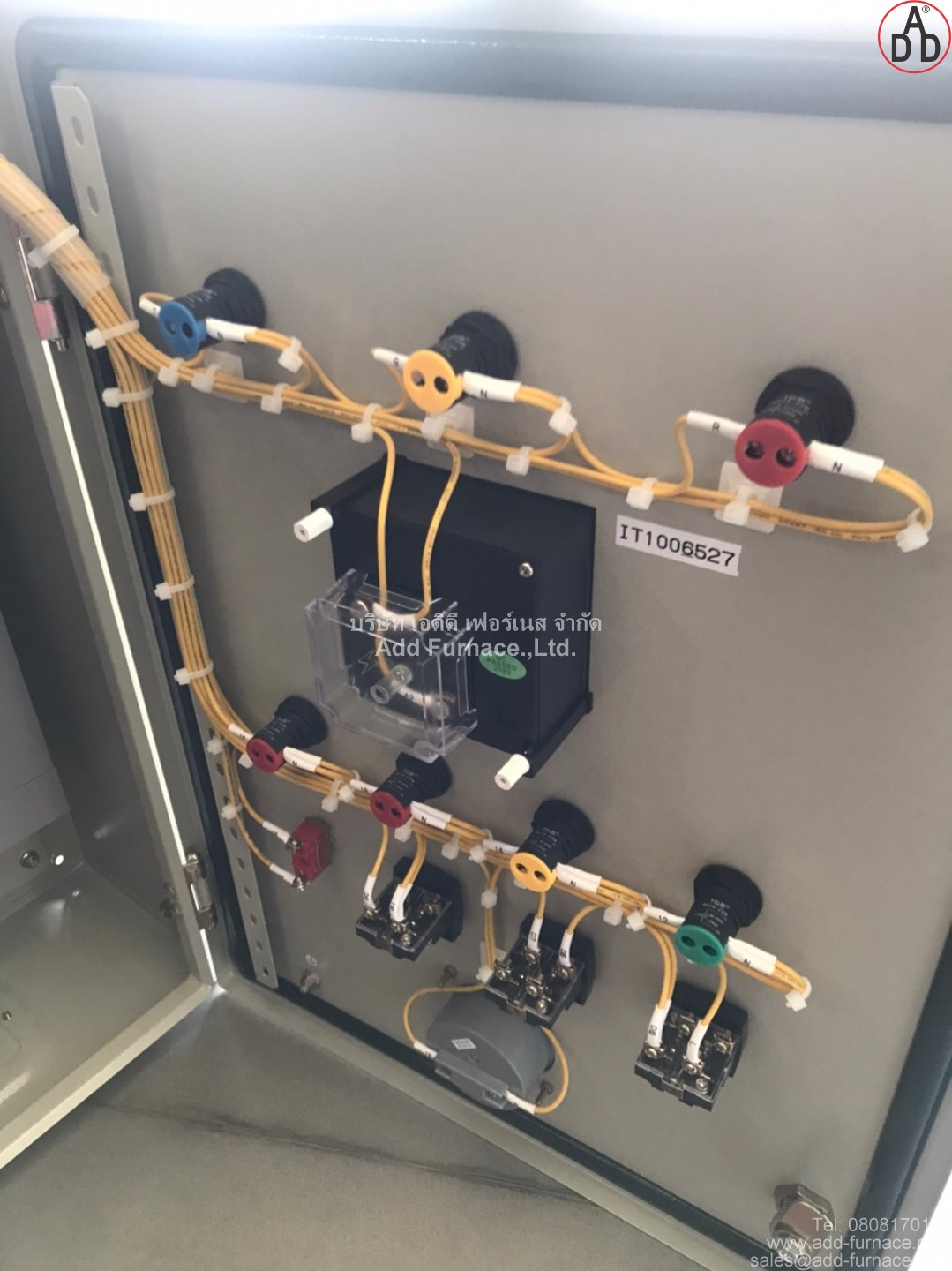

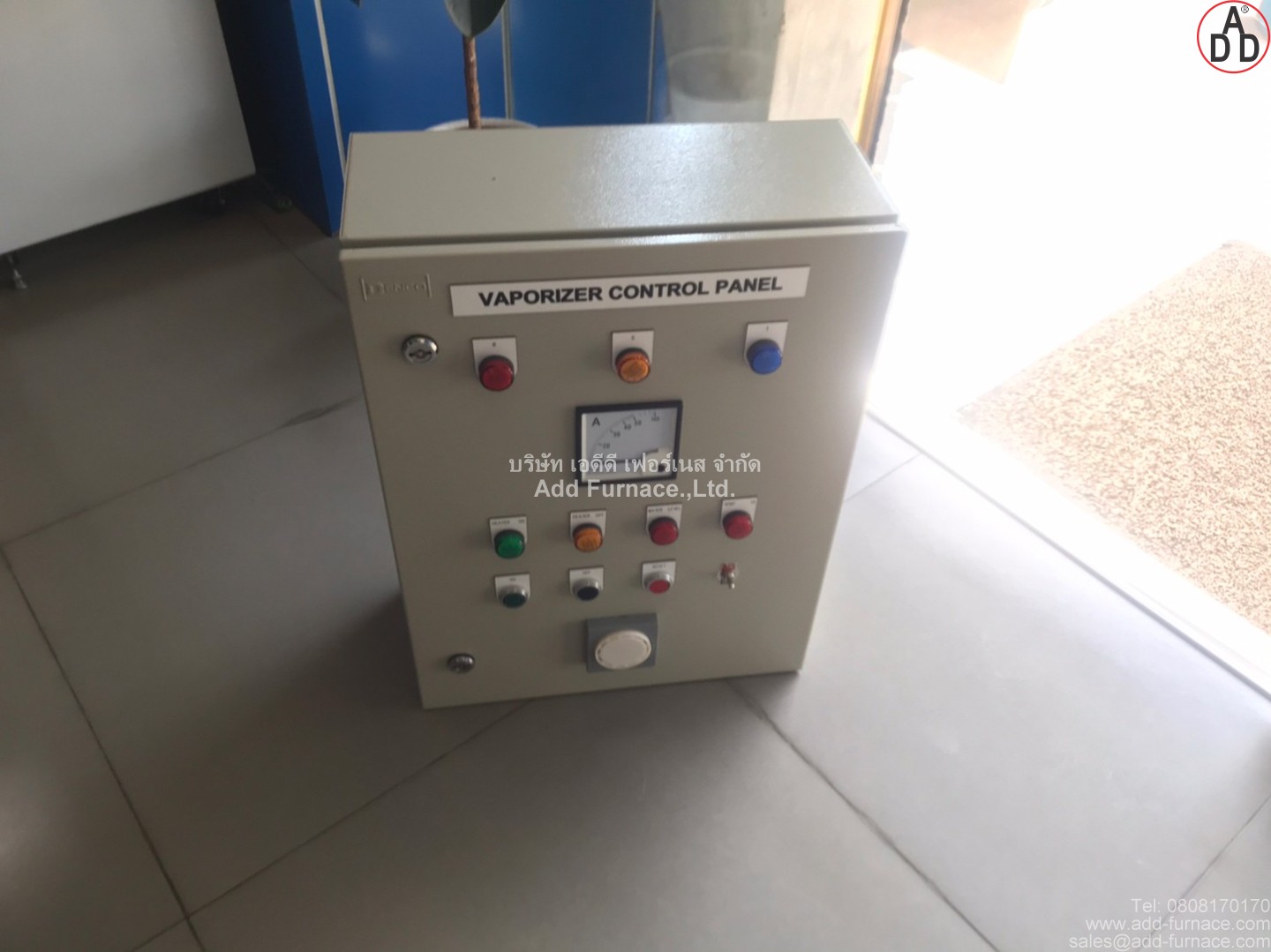

  • ITO KOKI CONTROL PANEL FOR TYPE-S 100 kg/hr
  • Made in Japan
