Home › Azbil Thailand › AUR890G230 | azbil Burner Controller

AUR890G230

AUR890G230 | azbil Burner Controller (1)
  • azbil Burner Controller: AUR890G230
  • Type型　番: AUR890G230
  • Power Supply: 200V 50Hz/60Hz 10W max
  • Prepurge Timeプレパージlock-out timing: 13.5±1.5
  • Ignition TimeイグニッショントライアルFlame response: 3±1
  • Flame Detector(UV sensor): azbil AUD100/110/120,Honeywell C7035A,C7027A
  • This product at systems which start and stop at least once within 24 hours
  • Brand: Azbil
  • Made in Japan
  • AUR890G230 Standard Manual
  • AUR890G230 | azbil Burner Controller)
  • azbil AUR890 Series

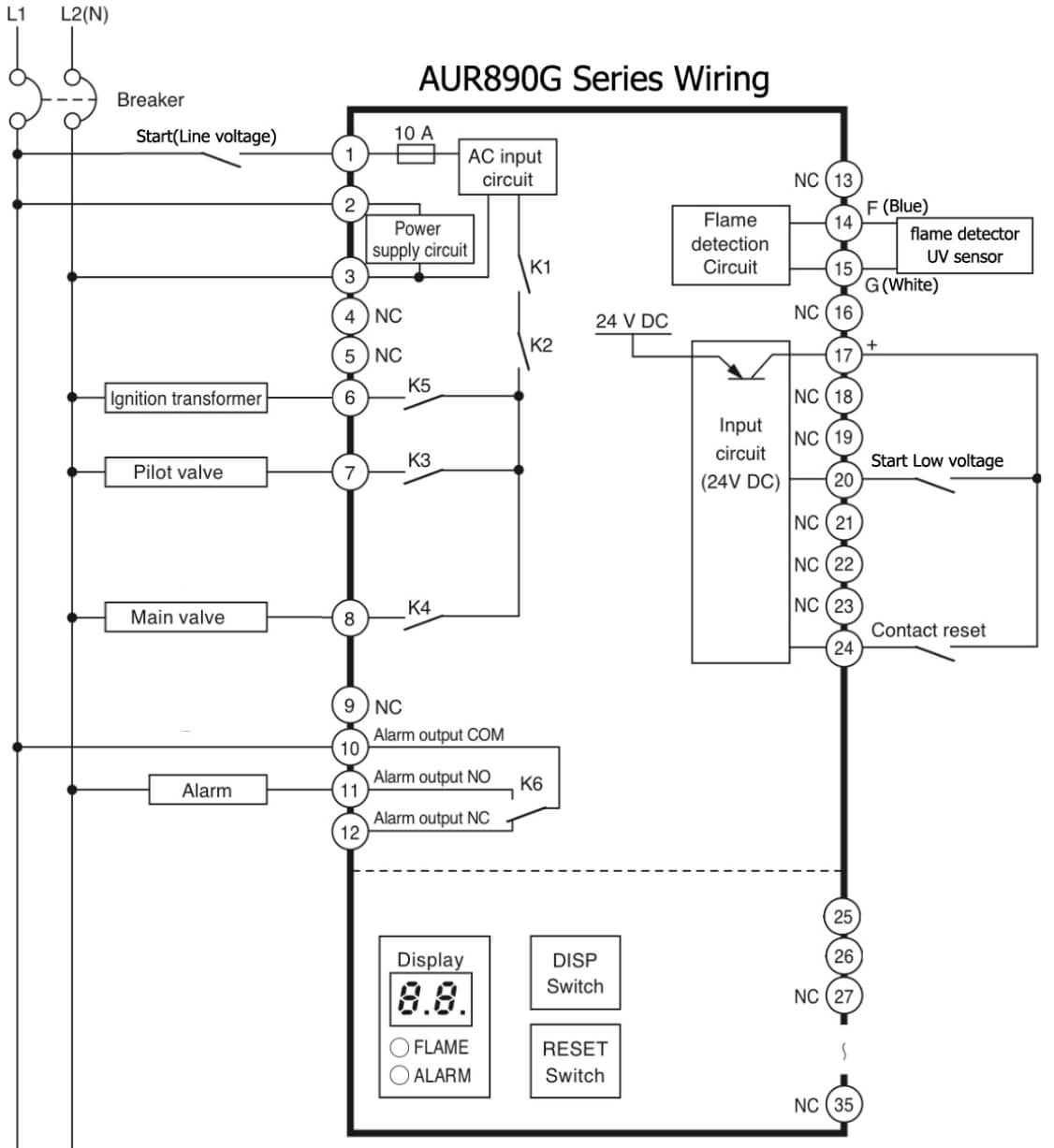

  • Azbil AUR890G Series Burner Controller Wiring

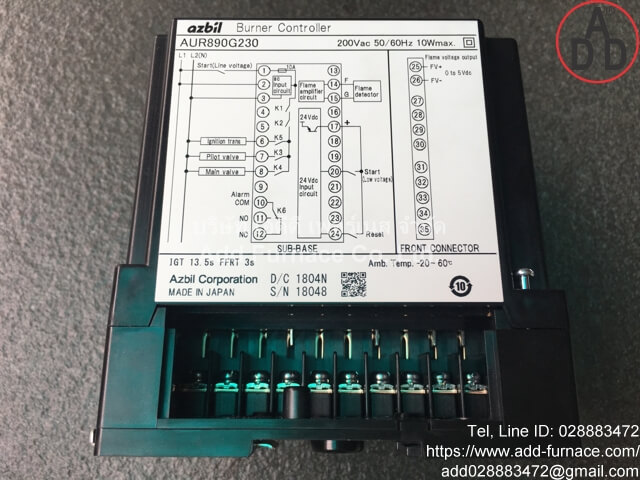

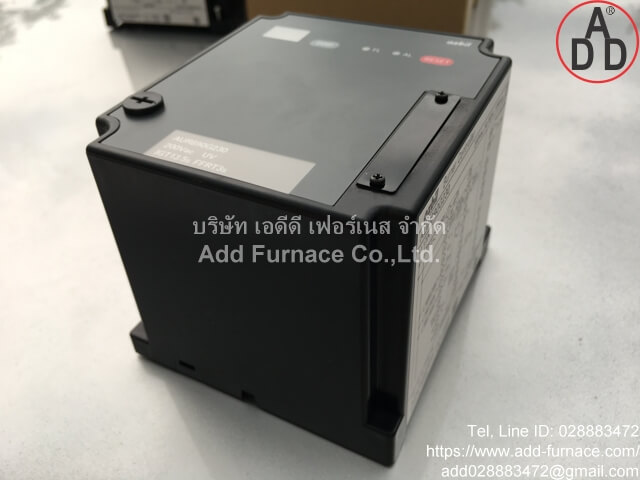

  • AUR890G230 | azbil Burner Controller (1)
  • AUR890G230 | azbil Burner Controller (2)
  • AUR890G230 | azbil Burner Controller (3)
  • AUR890G230 | azbil Burner Controller (4)
  • AUR890 With The BC-R05A100 Sub Base Diemensions
  • AUR890G230 | azbil Burner Controller (5)
  • AUR890G230 | azbil Burner Controller (6)
  • AUR890G230 | azbil Burner Controller (7)

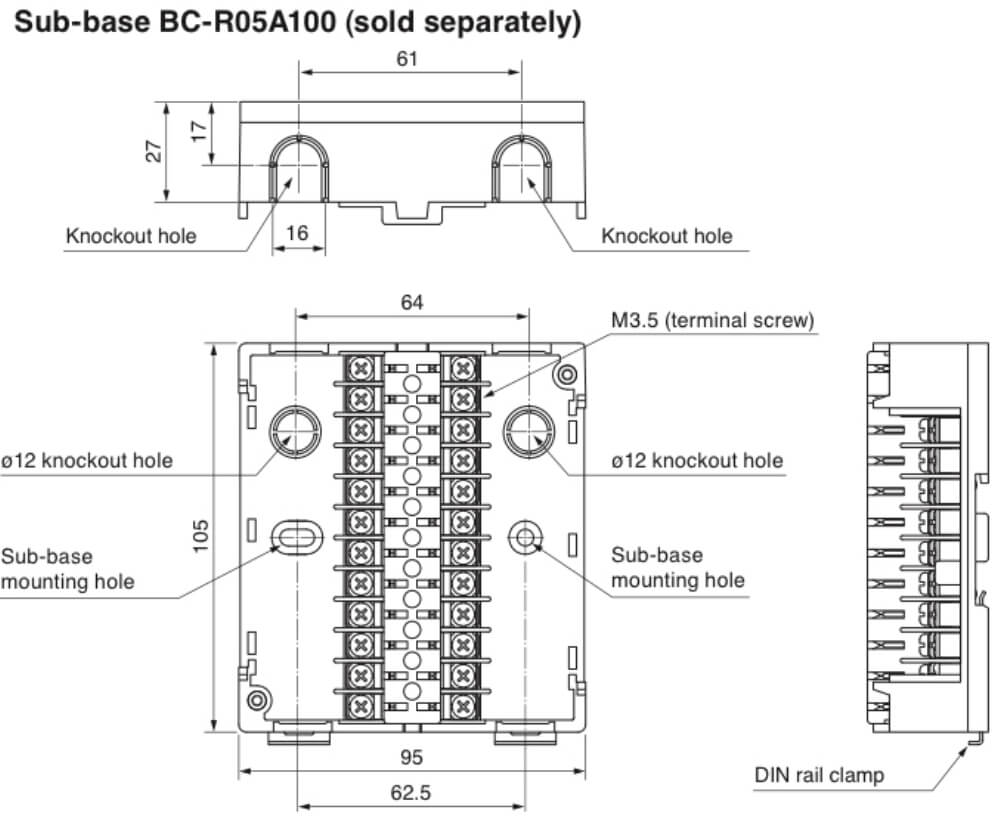

  • Sub Base BC-R05A100 Sold Separately
  • AUR890G230 | azbil Burner Controller (8)
  • AUR890G230 | azbil Burner Controller (9)
  • AUR890G230 | azbil Burner Controller (10)
  • AUR890G230 | azbil Burner Controller (11)
  • AUR890G230 | azbil Burner Controller (12)
