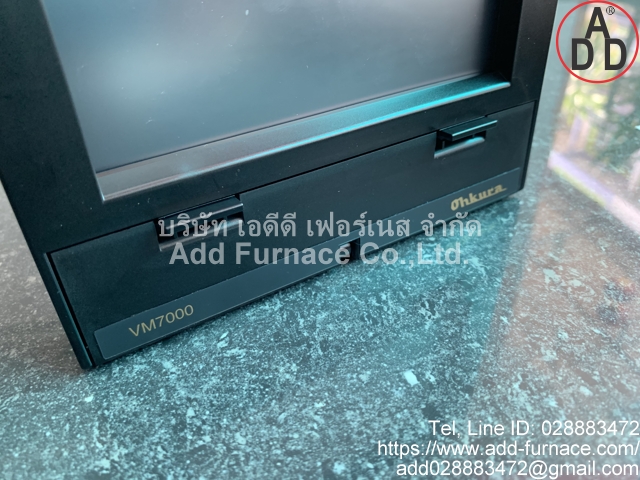

VM7000 Ohkura

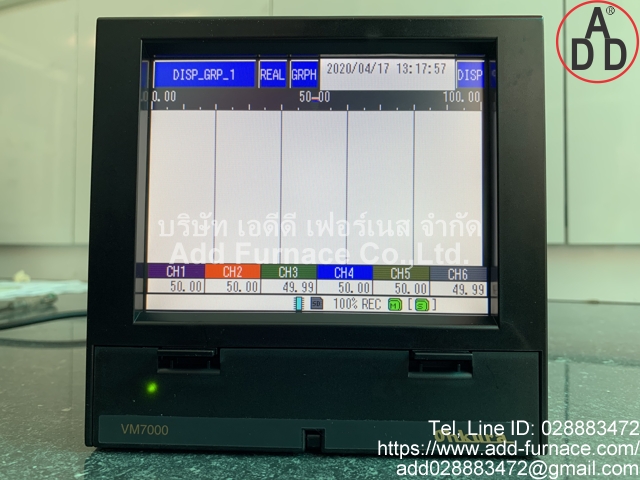

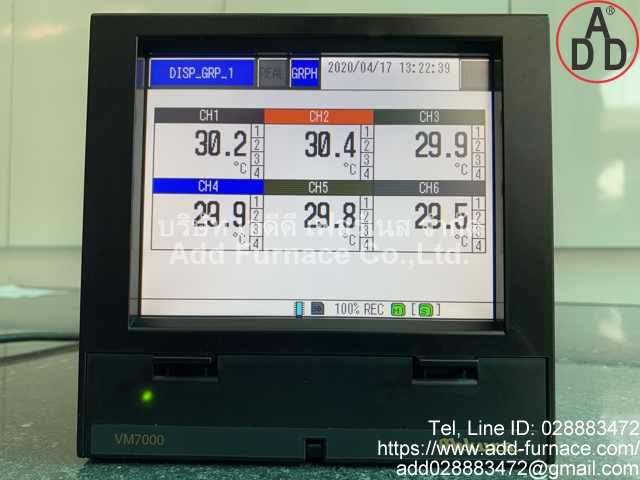

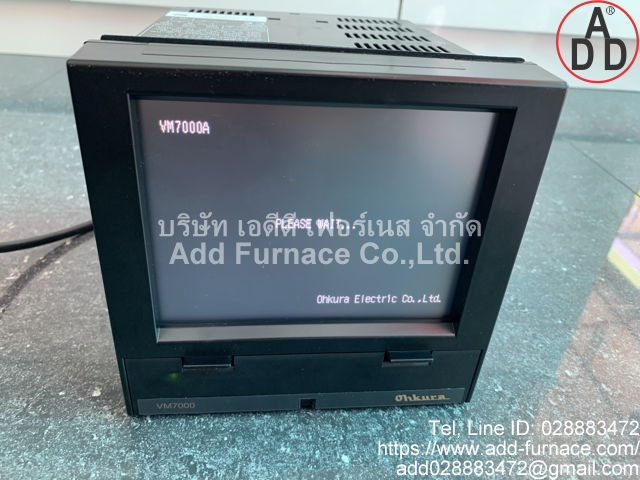

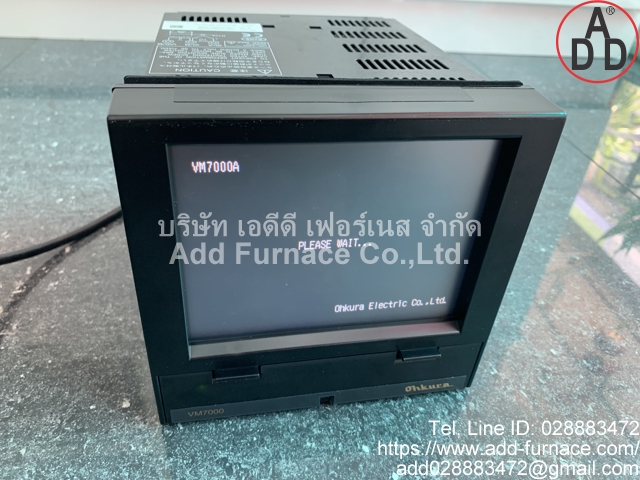

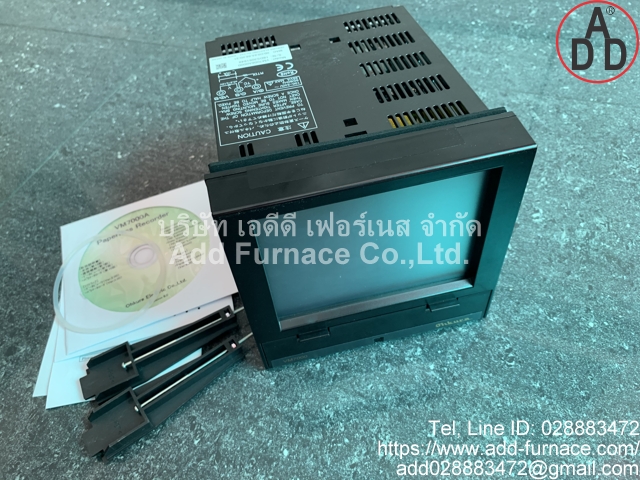

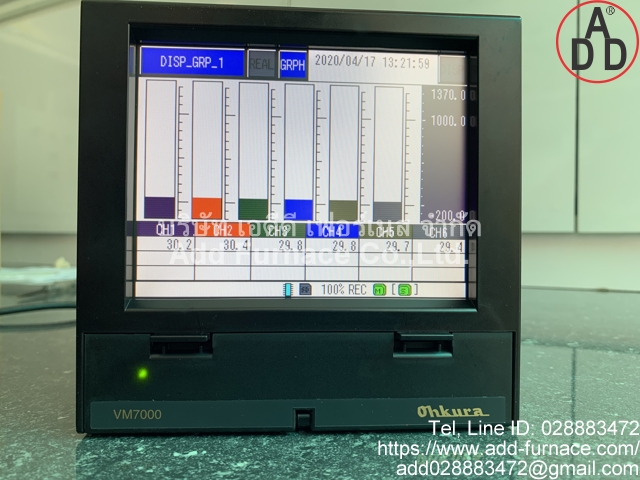

Paperless Recorder: VM7000 Ohkura
Input signal:
Thermocouple:K,E,J,T,C,N,PLII,U,L,R,S,B,PR40-20,Au-Fe
Resistance: PT100,JPT100
DC voltage: -10 to +10mV, 0-20mV, 0-50mV, -0.2 to +0.2v, -1 to +1V, -10 to +10V, 0 to 5V
DC current:4-20mA, Exteral shunt resistance
The measuring data can be stored only within the main body for about 3 weeks. (input: 6 channels, data record cycle: 1 sec, file record cycle: 1 day, only the binary form, maximum/minimum value)

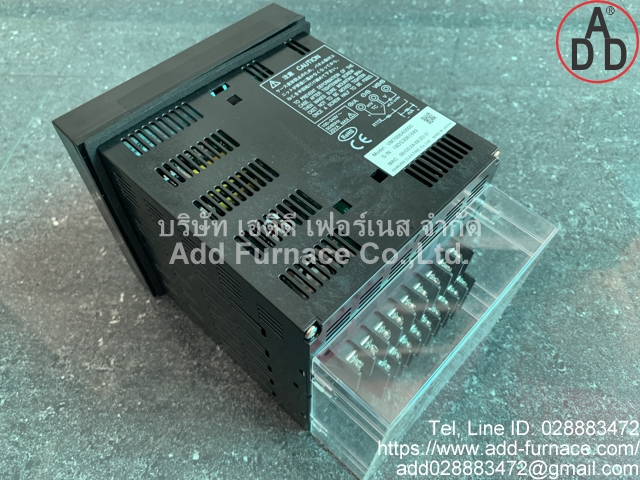

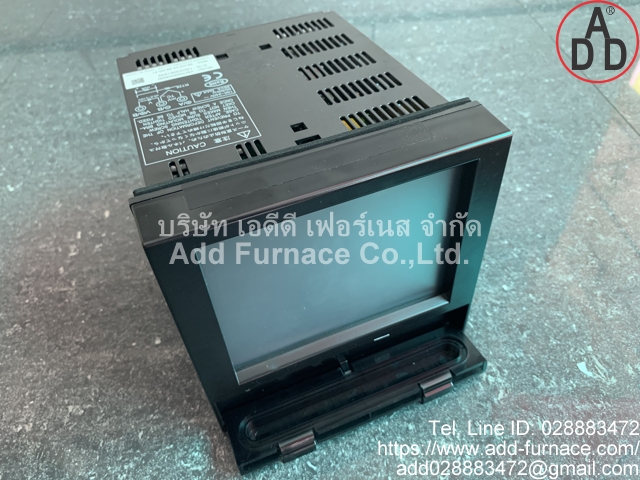

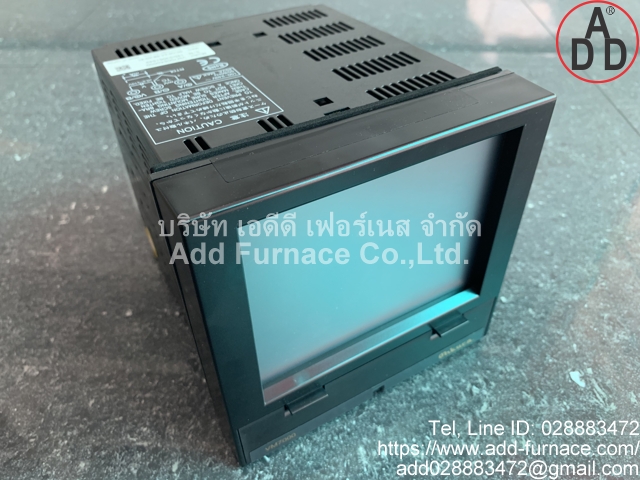

Compact size and Lightness 150 (W) × 144 (H) × 181.8 (D) mm (The terminal stand cover is contained.) About 1.0kg mass (6 channels input, without option)

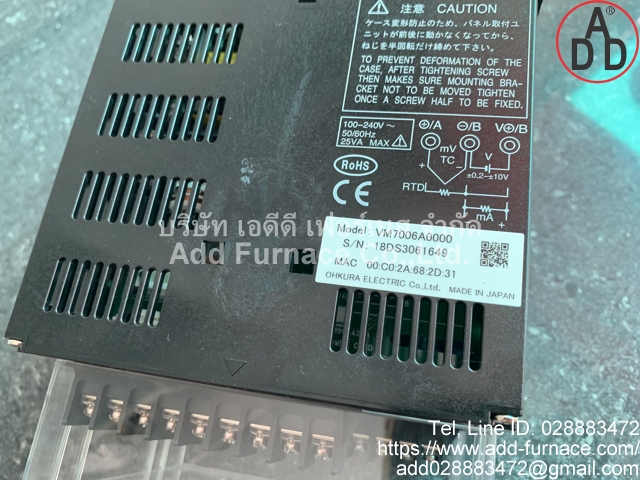

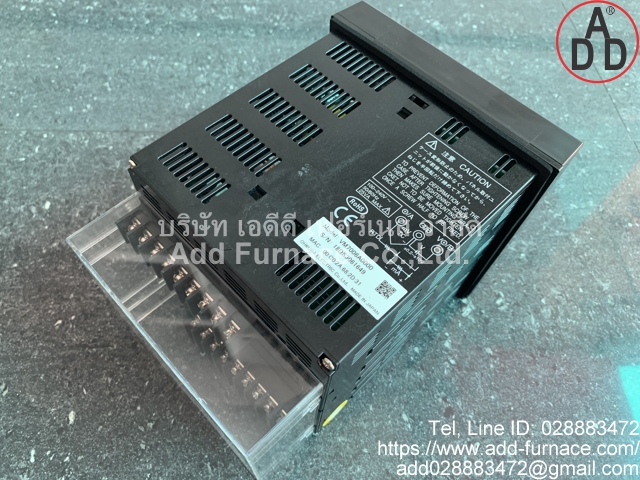

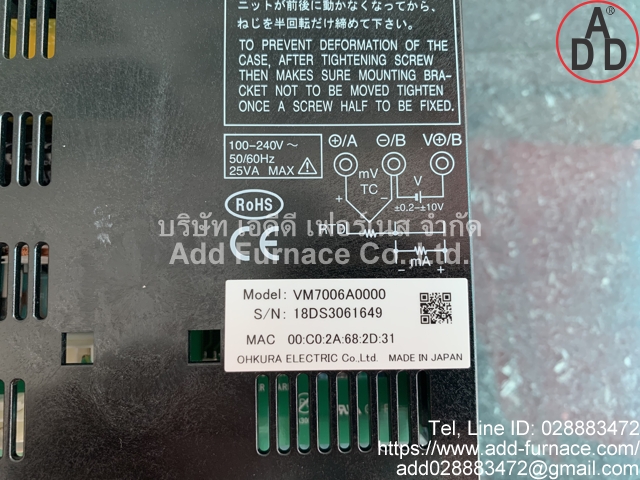

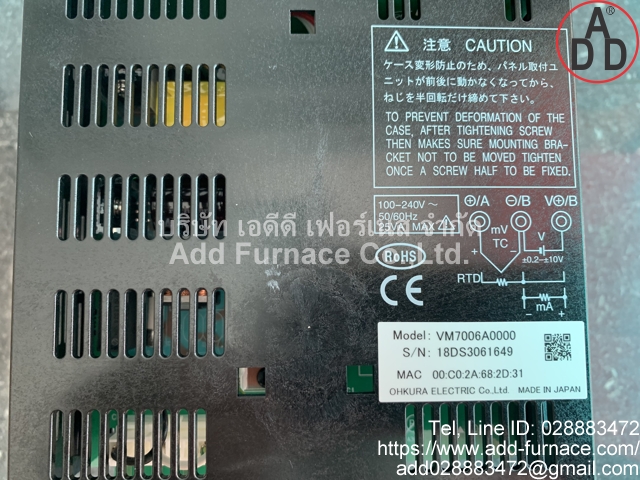

S/N:18DS3061649

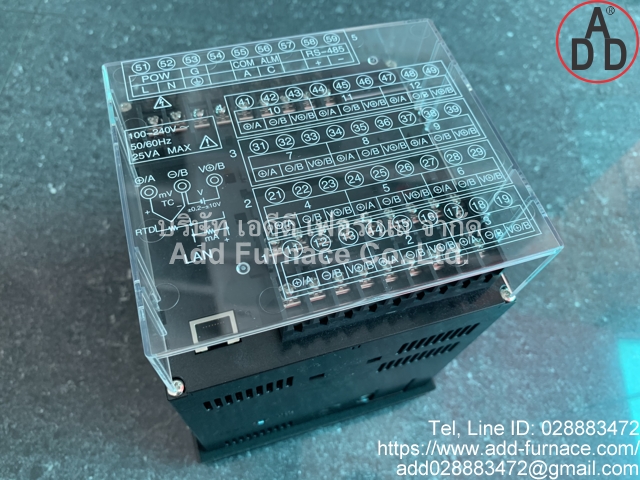

100-240V~
50/60Hz
25 VA MAX
MAC 00:C0:2A:68:2D:31
Brand:OHKURA
Made in Japan
