Model: VM7006A0000

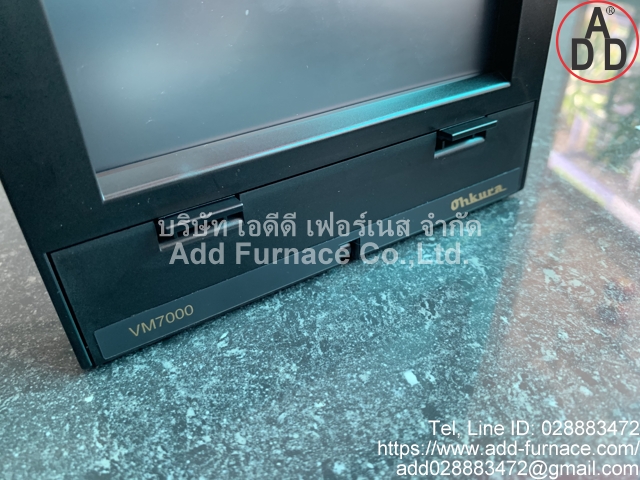

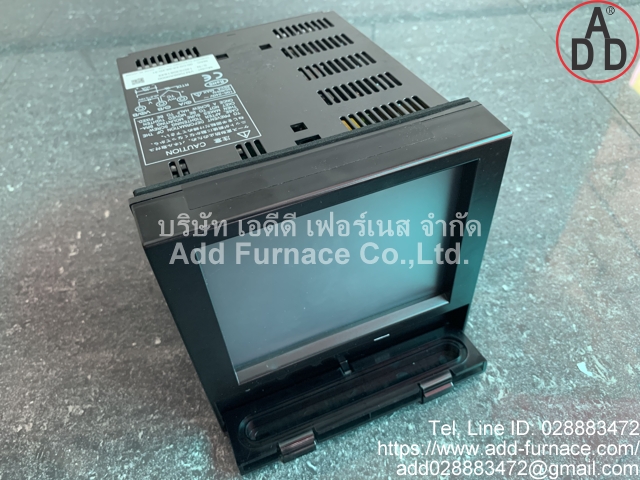

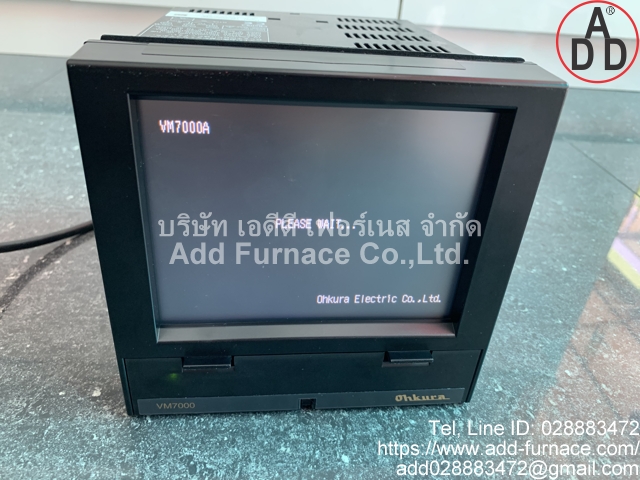

Ohkura Paperless Recorder: Model: VM7006A0000
Model: VM7006A0000
6point input (Multiple signal inputs)
Thermocouple:K,E,J,T,C,N,PLII,U,L,R,S,B,PR40-20,Au-Fe
Resistance: PT100,JPT100
DC voltage: -10 to +10mV, 0-20mV, 0-50mV, -0.2 to +0.2v, -1 to +1V, -10 to +10V, 0 to 5V
DC current:4-20mA, Exteral shunt resistance
The measuring data can be stored only within the main body for about 3 weeks. (input: 6 channels, data record cycle: 1 sec, file record cycle: 1 day, only the binary form, maximum/minimum value)
S/N:18DS3061649

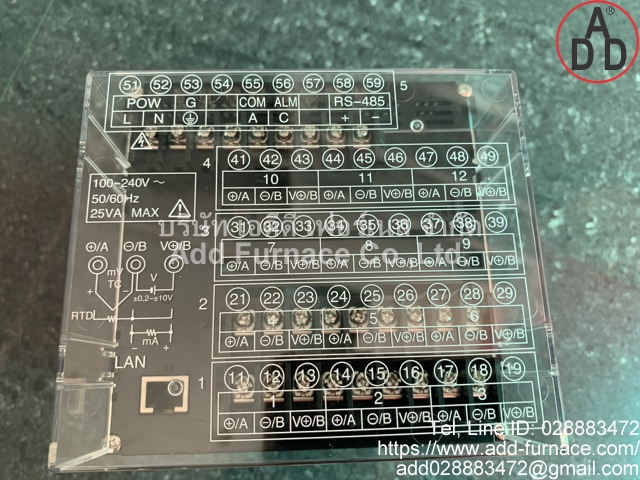

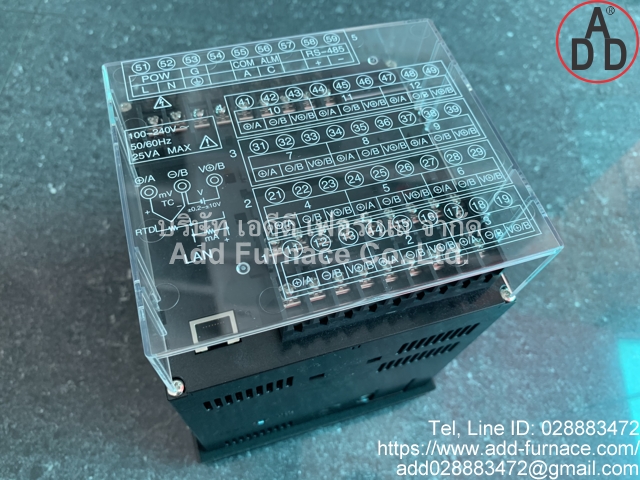

100-240V~
50/60Hz
25 VA MAX
MAC 00:C0:2A:68:2D:31
Brand:Ohkura
Made in Japan
