1. burner-motor
  2. SIMEL Type 52/58 IE3 IP55

SIMEL Type 52/58 IE3 IP55

SIMEL Type 52/58 IE3 IP55
  • SIMEL MOTOR
  • Type: 52/58 IE3 IP55~3ph-MOT
  • Duty S1 IP55 Th.CI.155(F)
  • poles 2 0005010263
  • 2,2kW 50Hz 2890 rpm cos𝜑 0,77
  • 220-240V - 8,0A
  • 380-415V - 4,6A
  • IE3 - 85,9(100%)- 85,9(75%) - 85,1(50%)
  • 2,2kW 60Hz 3510rpm cos𝜑0,76
  • 254-277V - 6,9A
  • 440-480V - 4,0A
  • IE3 - 86,5(100%)
  • Made in Italy

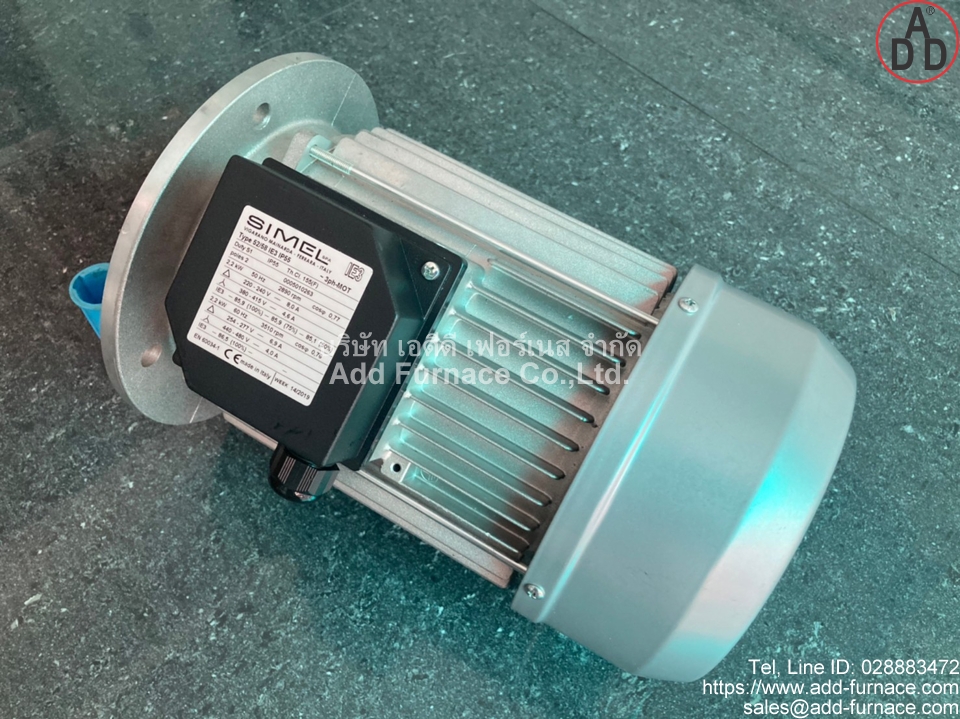

  • SIMEL Type 52/58 IE3 IP55 (1)
  • SIMEL Type 52/58 IE3 IP55 (2)
  • SIMEL Type 52/58 IE3 IP55 (3)
  • SIMEL Type 52/58 IE3 IP55 (4)
  • SIMEL Type 52/58 IE3 IP55 (5)
  • SIMEL Type 52/58 IE3 IP55 (6)
  • SIMEL Type 52/58 IE3 IP55 (7)
  • SIMEL Type 52/58 IE3 IP55 (8)
  • SIMEL Type 52/58 IE3 IP55 (9)
  • SIMEL Type 52/58 IE3 IP55 (10)
  • SIMEL Type 52/58 IE3 IP55 (11)
  • SIMEL Type 52/58 IE3 IP55 (12)
  • SIMEL Type 52/58 IE3 IP55 (13)
  • SIMEL Type 52/58 IE3 IP55 (14)
