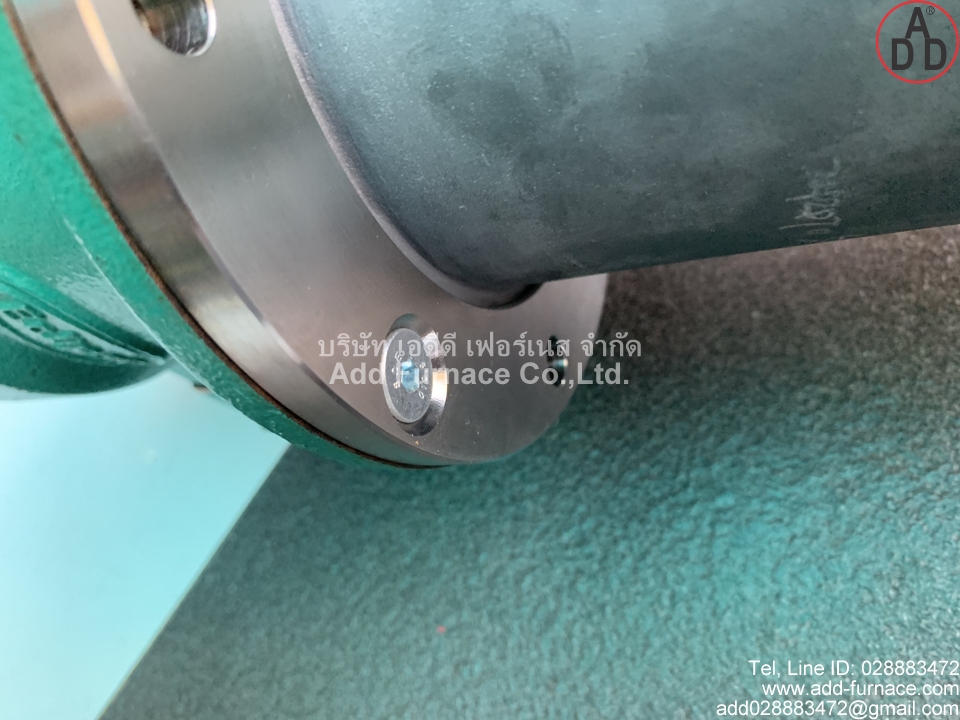

Eclipse ThermJet TJ075 With Silicon Carbide Combustor
.jpg)
- Industry Gas Burner: Eclipse ThermJet TJ075 With Silicon Carbide Combustor
- Model: ThermJet Burners Model TJ075 Silicon Carbide Combustor
- Capacity: 750,000Btu/h = 189,000Kcal/h = 220kW/h
- Maximum Chamber Temp Under Follow List:
- Silicon Carbide Combustor 1,371°C(2,500°F)(Default)
- Spark Plug: Eclipse 10019728
- Sensor: Flame Rod or Uv Sensor
- Brand: Eclipse
- Made in U.S.A
- Applications: Tempering Furnaces, Hardening Furnaces, Reheating Furnaces, Fluidized Bed Dryers, Thermal Oxidizers, Non-Ferrous Melting,Ladle/Tundish, Glass Lehrs Environmental Applications,Preheated Air
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
