azbil RN748 | RN748A0000

azbil RN748 | RN748A0000
  • azbil controller: azbil RN748
  • type: RN748A0000
  • Input signal Control: 4-20mA
  • DC/postion proportional conventer, motor driver 100~240vac, With motor driver relay output MFB, 3 event relay outputs, 3 digital inputs
  • size: 48mm x 96mm x 65mm
  • Brand: Azbil
  • Application: With 4-20mA Input Temperature controller Control Motor 3 Line (ON/OFF) and MFB,The RN748A is a signal conerter that receives a 4-20mA dc input signal from a controller and outputs a relay contact signal to drive a control motor with a build-in feedback potentiometer for position proportioning operation.Also, By seeting the centr of the angle of rotation and the proportional band for the input signal, split operation is possible.
  • RN748A0000 Standard Manual
  • azbil RN748 | RN748A0000 (1)
  • azbil RN748 | RN748A0000 (2)
  • azbil RN748 | RN748A0000 (3)
  • azbil RN748 | RN748A0000 (4)

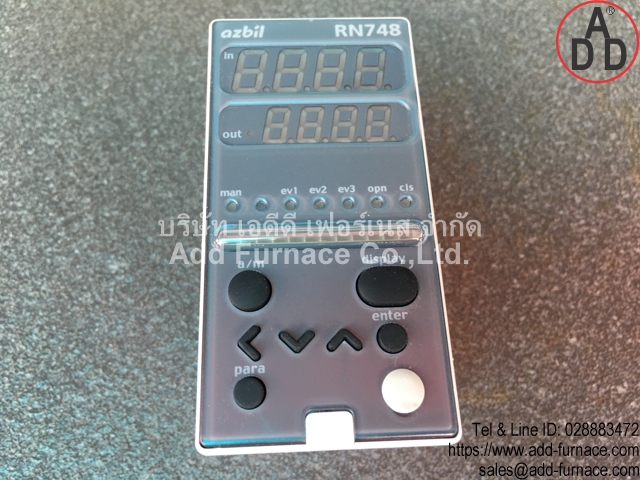

  • azbil RN748 | RN748A0000 (5)
  • azbil RN748 | RN748A0000 (6)
  • azbil RN748 | RN748A0000 (7)
