KA-32AKF

ka-32akf

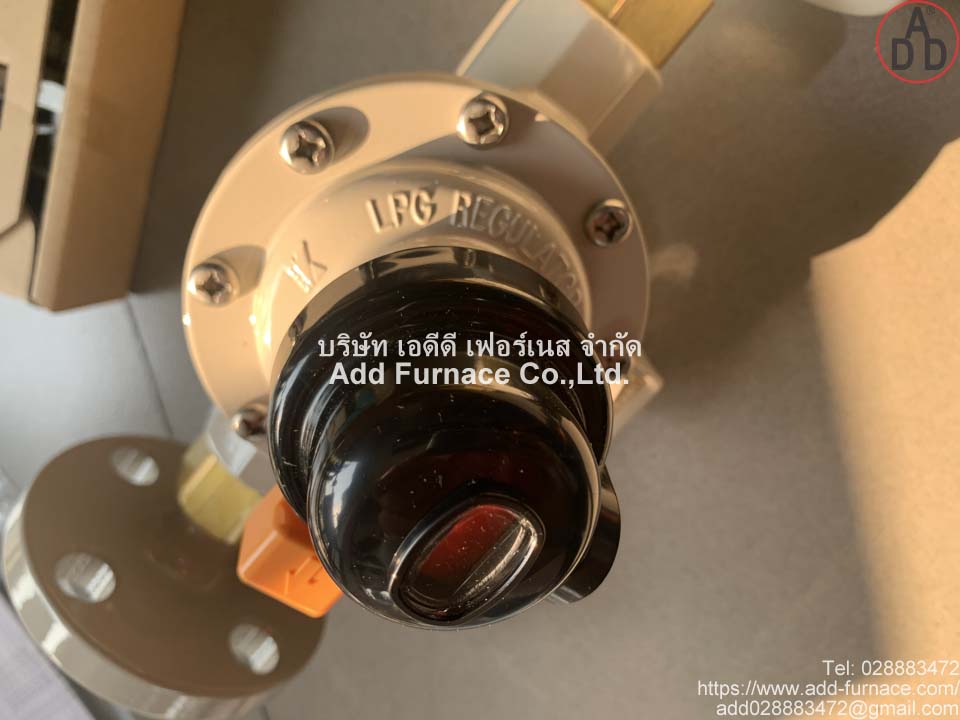

  • L.P.G Rugulator:KA-32AKF
  • Model:KA-32AKF
  • Capacity (Q):32kg/h
  • Entrance connection:Nominal pressure 20K 15A flange
  • Exit connection:Rc½ (Female screw)
  • Inlet pressure (P1):0.2～1.56MPa
  • Outlet pressure (P2): 0.07～0.17MPa
  • exit Criteria pressure
  • -R1(User side):0.14MPa
  • -R2(Spare side):0.11MPa
  • Maximum blockage pressure:0.18MPa
  • Made in Japan
  • KA-32AKF Standard Manual
  • ka-32akf(1)
  • ka-32akf(2)
  • ka-32akf(3)
  • ka-32akf(4)
  • ka-32akf(5)
  • ka-32akf(6)
  • ka-32akf(7)
  • ka-32akf(8)
  • ka-32akf(9)
