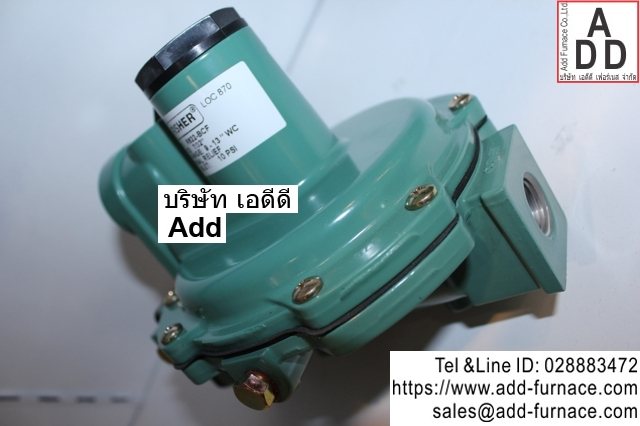

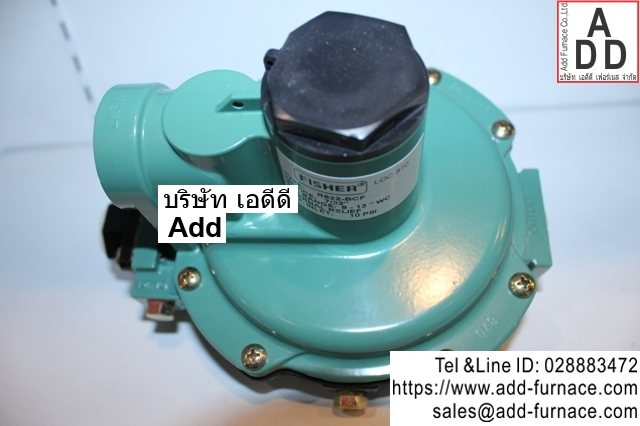

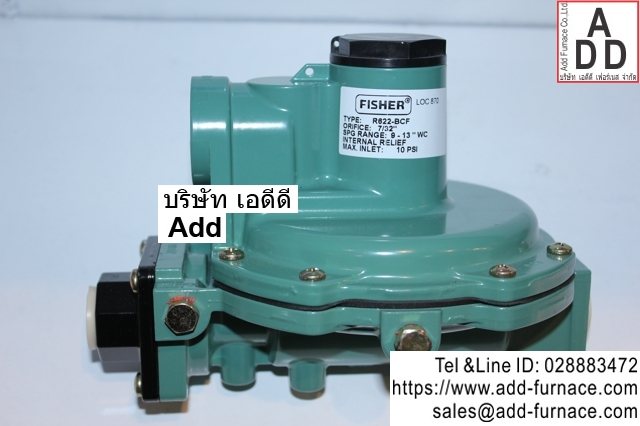

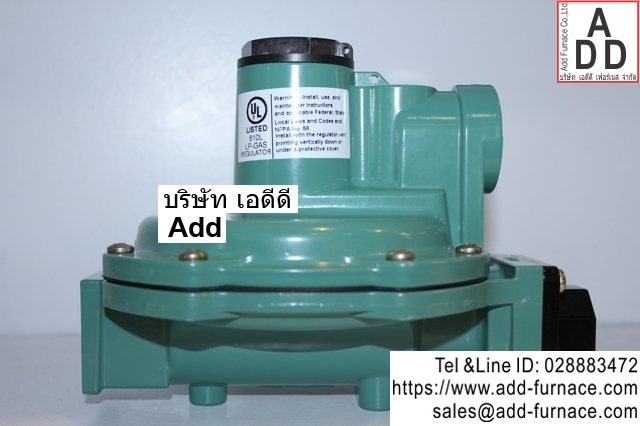

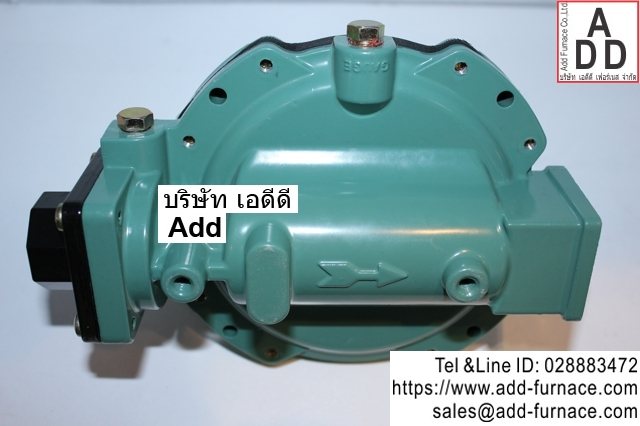

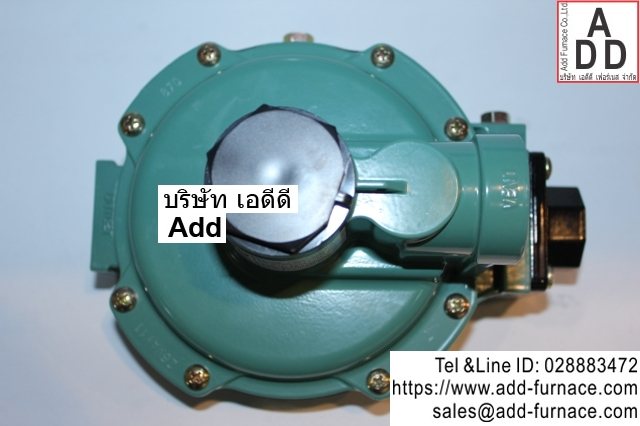

fisher r622-bcf | low pressure regulator
- Gas Pressure Regulator:fisher r622-bcf(low pressure regulator)คู่มือ
- inlet pressure:10psi (0.7kg/cm^2) ตารางเปรียบเทียบหน่วย
- outlet pressure range: 0.3~0.46psig (22~32mbar) ตารางเปรียบเทียบหน่วย

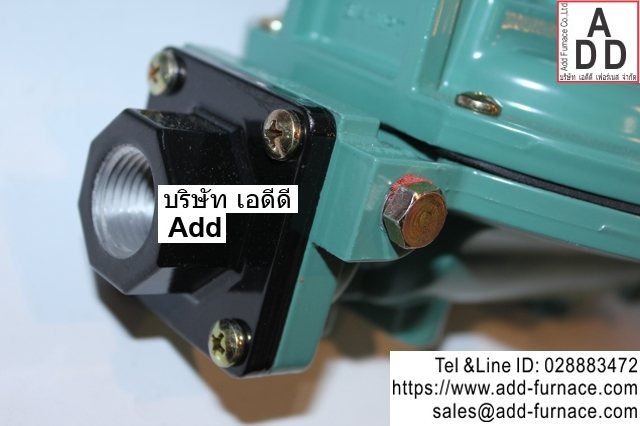

- inlet and outlet connections: 1/2" fnpt
- capacity btu/hr propane: 875,000
- origin: u.s.a
- brand: fisher
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
type r622 (fisher r622-bcf | low pressure regulator) is designed for two-stage domestic applications. the r622's time proven design and corrosion resistant materials, provde a recommended replacement life of 20years. utilizing a large orifice and diaphragm area, the r622 is capable of handling domestic applications up 1,400,000btu/hr.
type r622 contains a high performance relief valve and a large 3/4" screened vent to limit downstream pressure to less than 2 psig(0.14 bar) in an overpressure situation as required by nfpa58. the relief valve design exceeds the industry standard by limiting the downstream pressure to 2 psig (0.14bar) even in a double failure situation when used with a fisher type r622h or r122h isrst-stage reglator. the type r622 is adjustable from 22-32mbar with a factory set point 27mbar.
