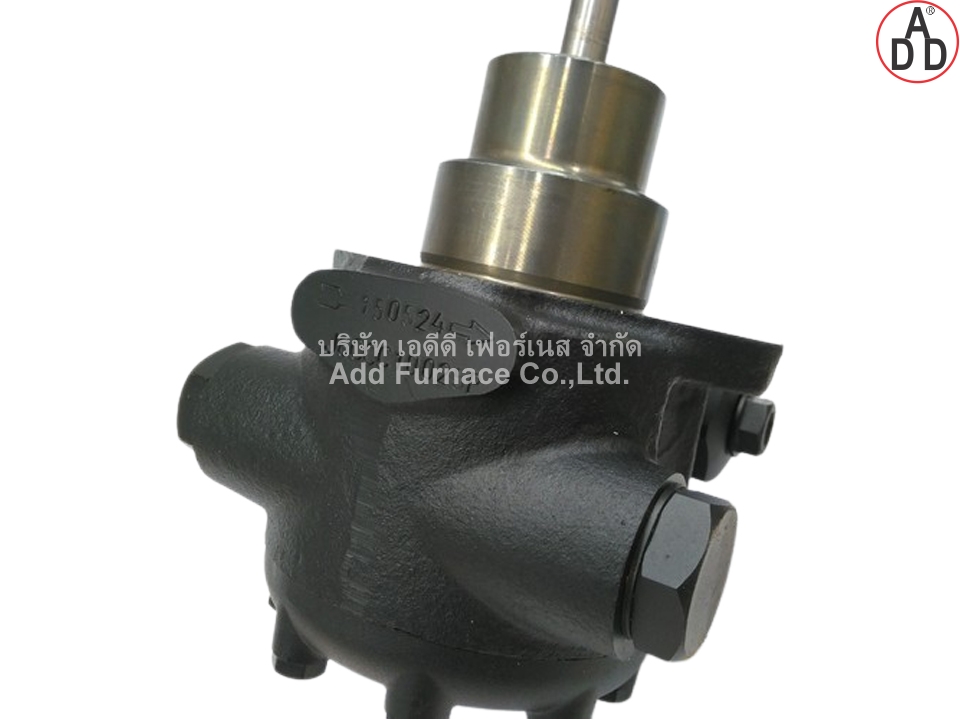

SUNTEC J6CCC10025P

SUNTEC Oil Pump
TypeSUNTEC J6CCC10025P
J : Pressure regulation
6:Gear set capacity(see pump capacity curves)
C:Strainer
C:Shaft rotation and nozzle location(seen from shaft end)anti clockwise rotation/left hand nozzle.
C:Pressure range:10-21 bars
1:Flange mounting
002 :Cylindrical connection threads by-pass nozzle, no cut-off function
5 :Revision number for J4 and J6
P :Installation by-pass plug installed in return port for two-pipe operation
Operating viscosity:3 - 75 mm²/s (cSt)
Oil temperature: 0 - 90°C in the pump.
Made in FRANCE
