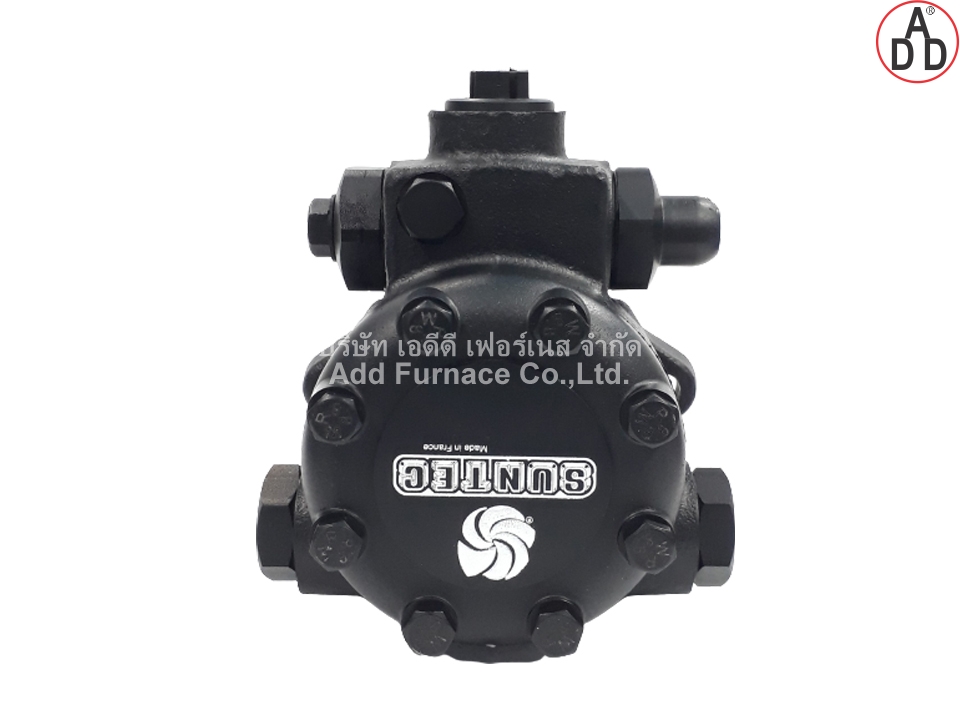

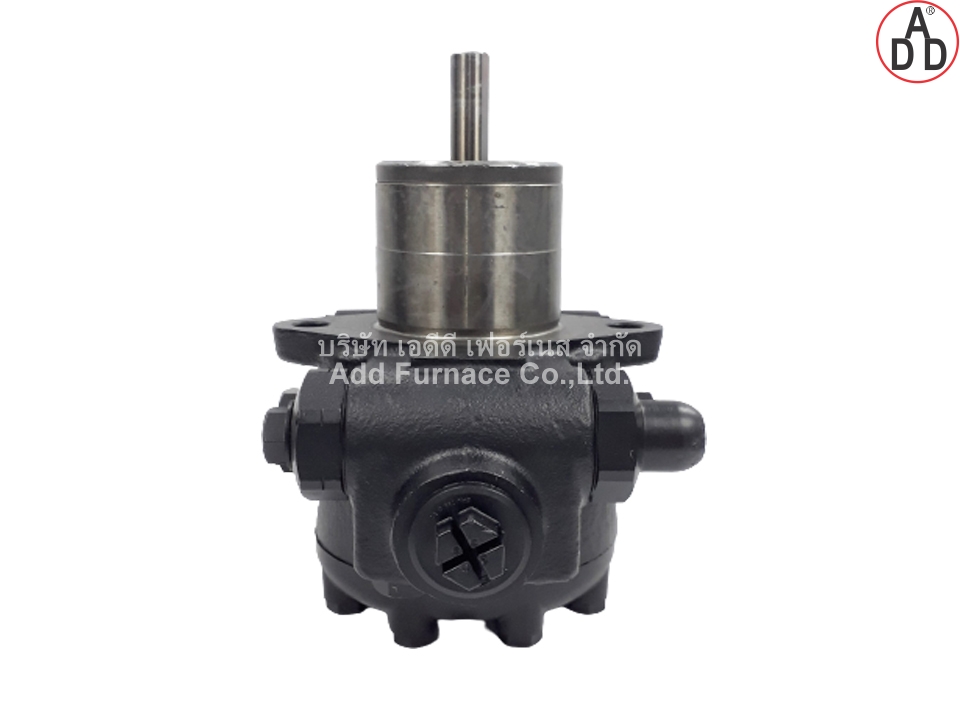

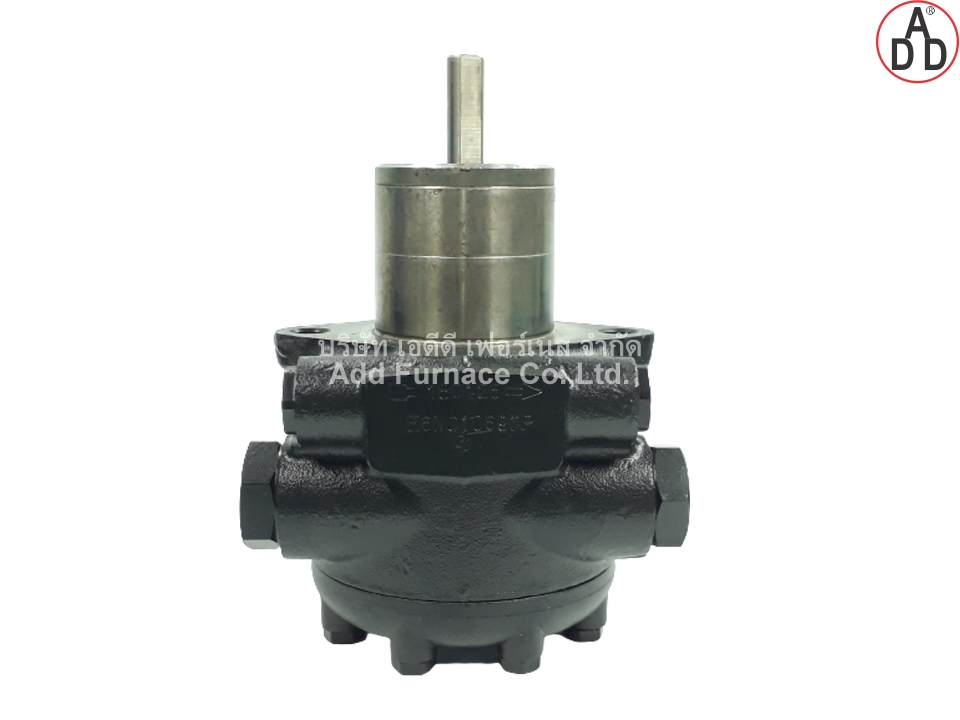

SUNTEC E6NC10697P

SUNTEC Oil Pump
Type:SUNTEC E6NC10697P
E : Pressure regulation
6:Gear set capacity(see pump capacity curves)
N:Strainer
C:Shaft rotation and nozzle location(seen from shaft end)anti clockwise rotation/left hand nozzle.
1:Flange mounting
069: body with preheater cavity; model without cut-off function
7:Revision number
P:Installation by-pass plug installed in return port for two-pipe operation
Nozzle pressure range: 14 - 30 bars
Oil temperature: 0 - 130°C in the pump.
Weight: 4 kg
Made in FRANCE
