1. Oil Pump
  2. SUNTEC E6NC10016P

SUNTEC E6NC10016P

SUNTEC E6NC10016P

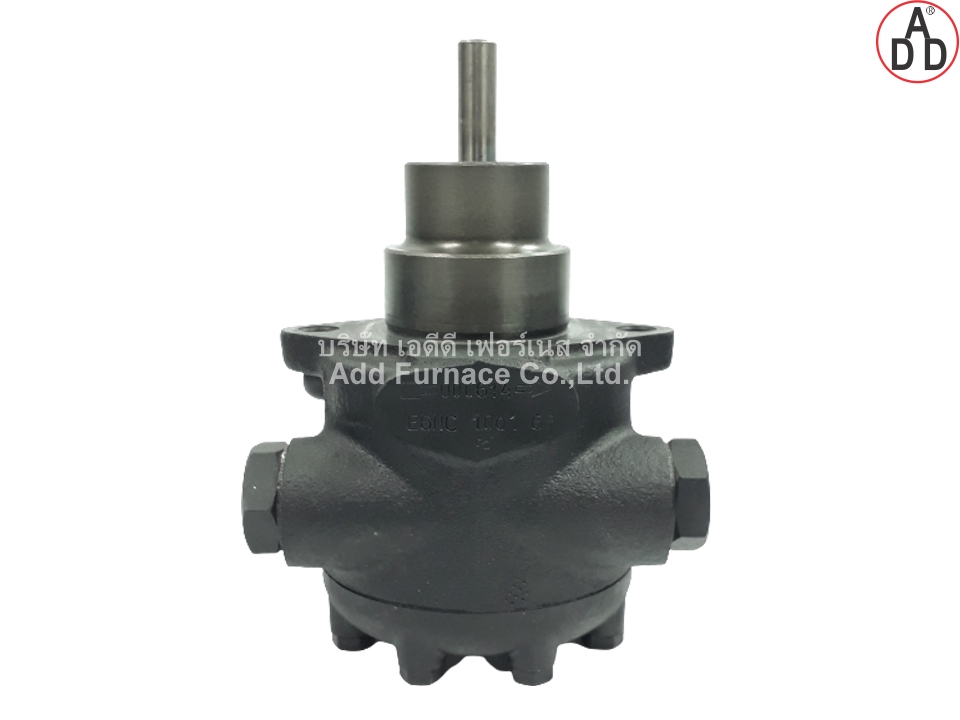

  • SUNTEC Oil Pump
  • Type:SUNTEC E6NC10016P
  • E : Pressure regulation
  • 6:Gear set capacity(see pump capacity curves)
  • N:Strainer 550 μm
  • C: anti clockwise rotation/left hand nozzle.
  • 1:Flange mounting
  • 001:standard model with cut-off function
  • 6:Revision number for E4 and E6
  • P:Installation by-pass plug installed in return port for two-pipe operation
  • Nozzle pressure range: 14 - 30 bars
  • Oil temperature: 0 - 90°C in the pump.
  • Weight: 4 kg
  • Made in FRANCE
  • SUNTEC E6NC10016P (1)
  • SUNTEC E6NC10016P (2)
  • SUNTEC E6NC10016P (3)
