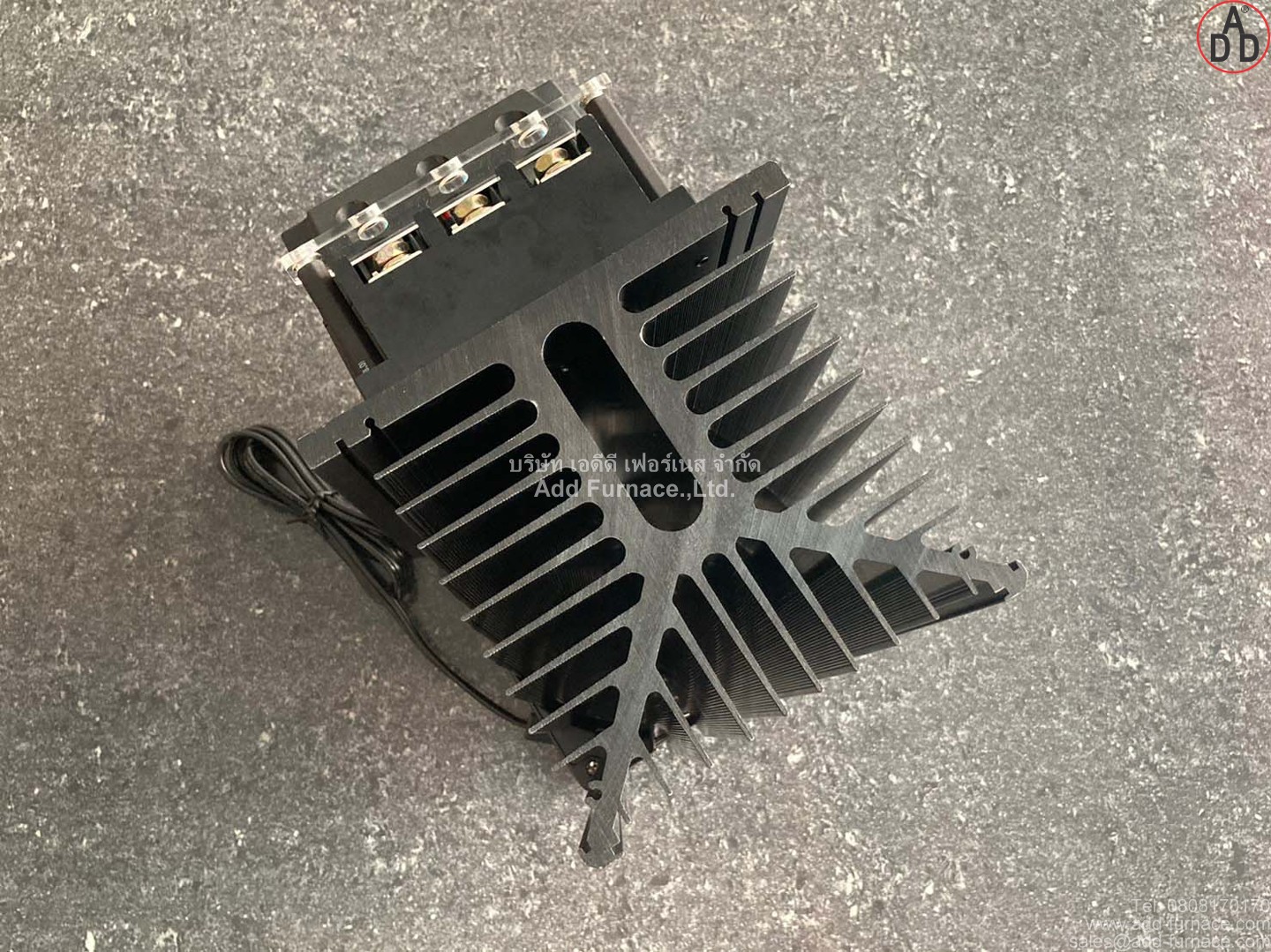

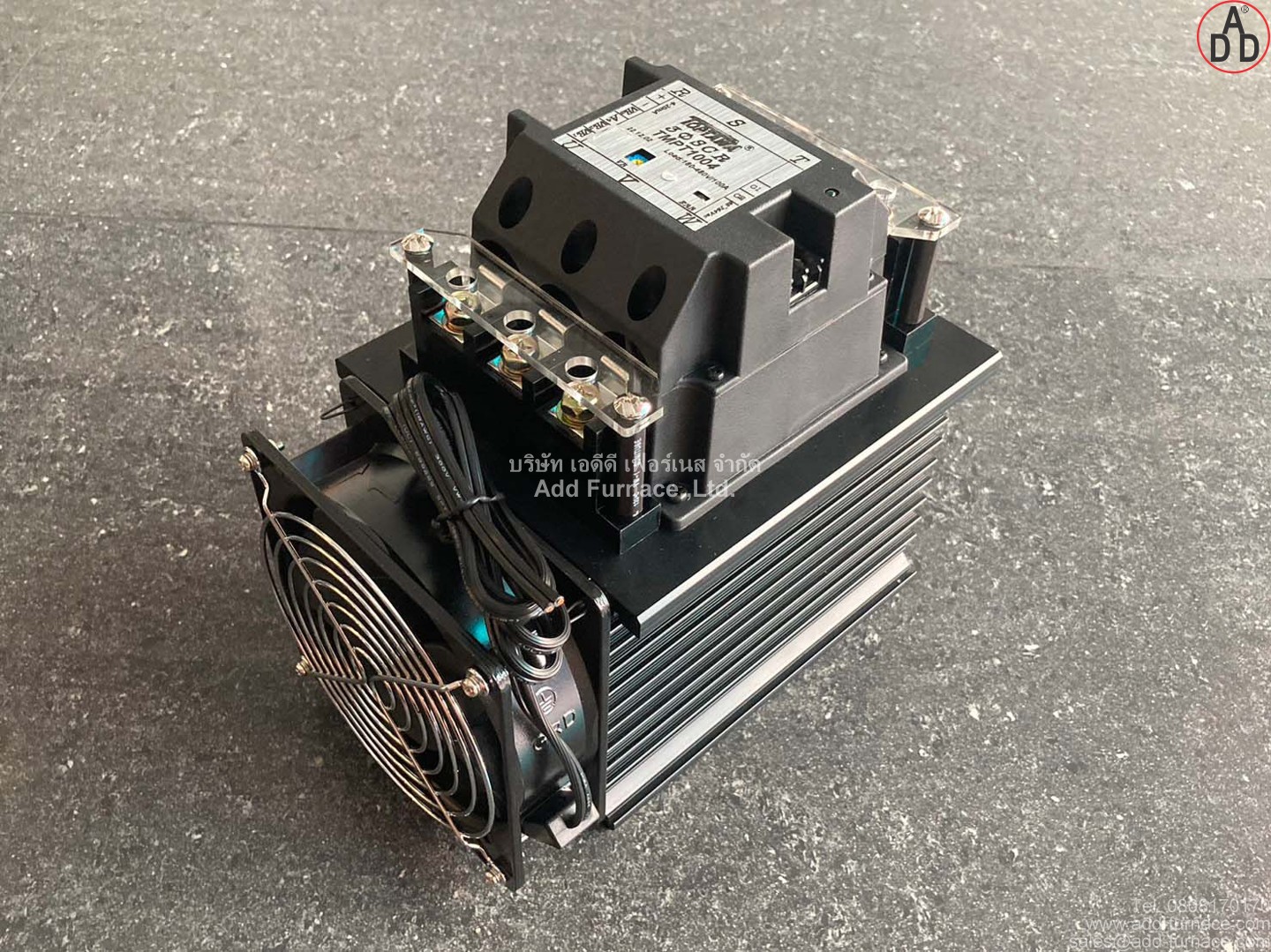

SCR TMPT1004 100A 380/440V Power Regulator

SCR TMPT1004 100A 380/440V Power Regulator
  • Power Regulator 3Φ phase power controller
  • Model : TMPT1004
  • Load Current Rating : 100A
  • Load Voltage : 380/440V
  • Auxiliary Power : 88-264V(50Hz/60Hz)
  • Min Load Current : 0.6A
  • Off state Leakuge Current : 8mm under(R.C FILTER)
  • Power consumption : 3.2w(Max)
  • Frequency Range : 50Hz or 60Hz ±5%
  • Control type : DCA(4-20mA.0-20ma).DCV(0-5V,1-5V,2-10V,0-10V)
  • Input Resistance : DCA(250Ω）DCV（4.7KΩ or 10KΩ)
  • Isolution Voltage : AC2000V(1 MIN)
  • Weight : 5300g.
  • Dimension : L208xW140xH200mm
  • Maden in TaiWan
  • Power Regulator 3Φ phase Data Sheet
