R8001V1031
.jpg)

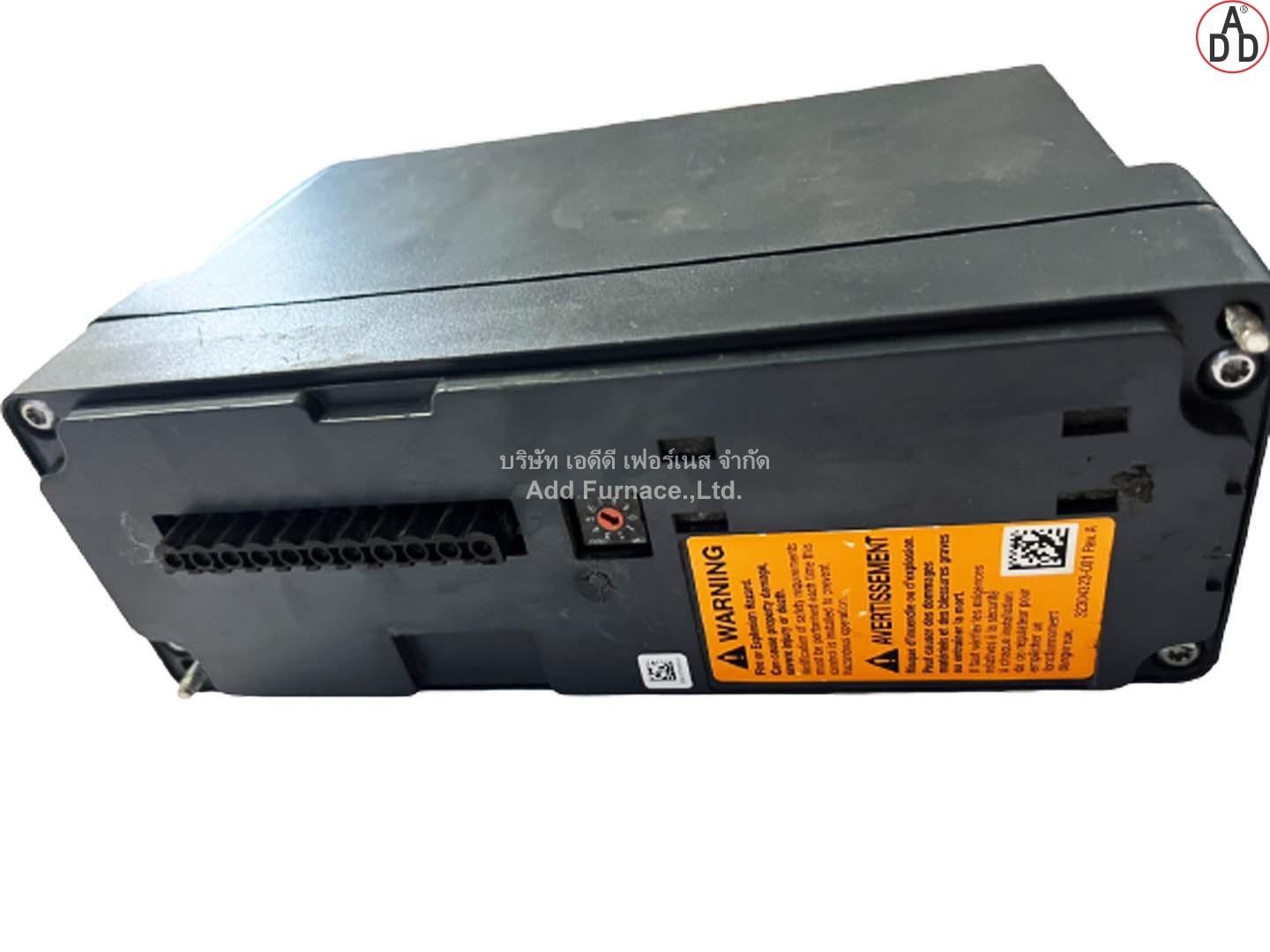

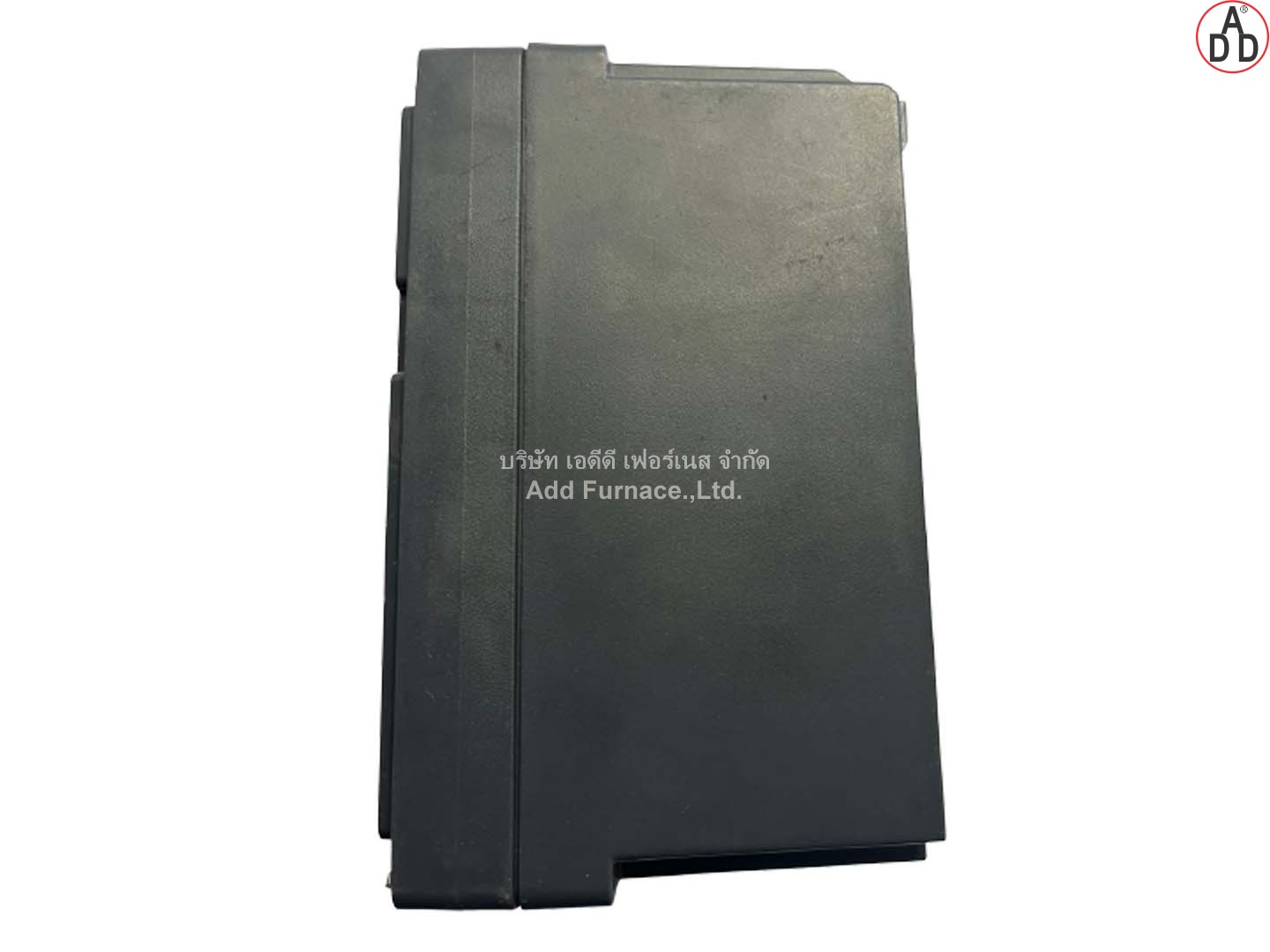

- Rectification Ampli-Check Flame Amplifier
- Type : R8001V1031
- Voltage and Frequency:24 VDC (± 15%),24 VAC (± 15%), 50/60 Hz,85–264 VAC, 50/60 Hz
- Ambient Temperature : -20°F to +150°F (-29°C to +66°C).
- Used with the C7000X detector series
- Brand : Honeywell
R8001V1031 INSTALLATION INSTRUCTIONS
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
