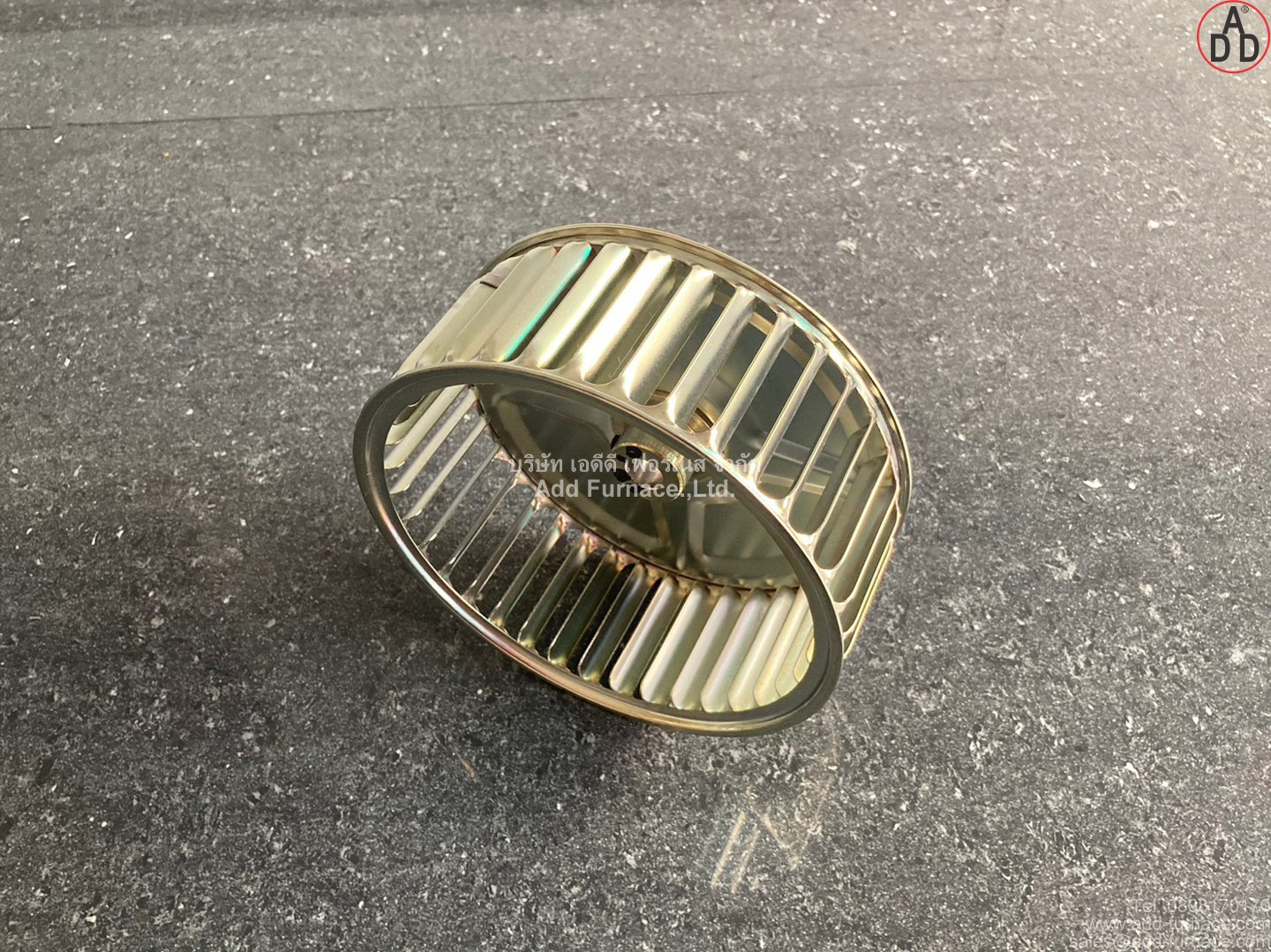

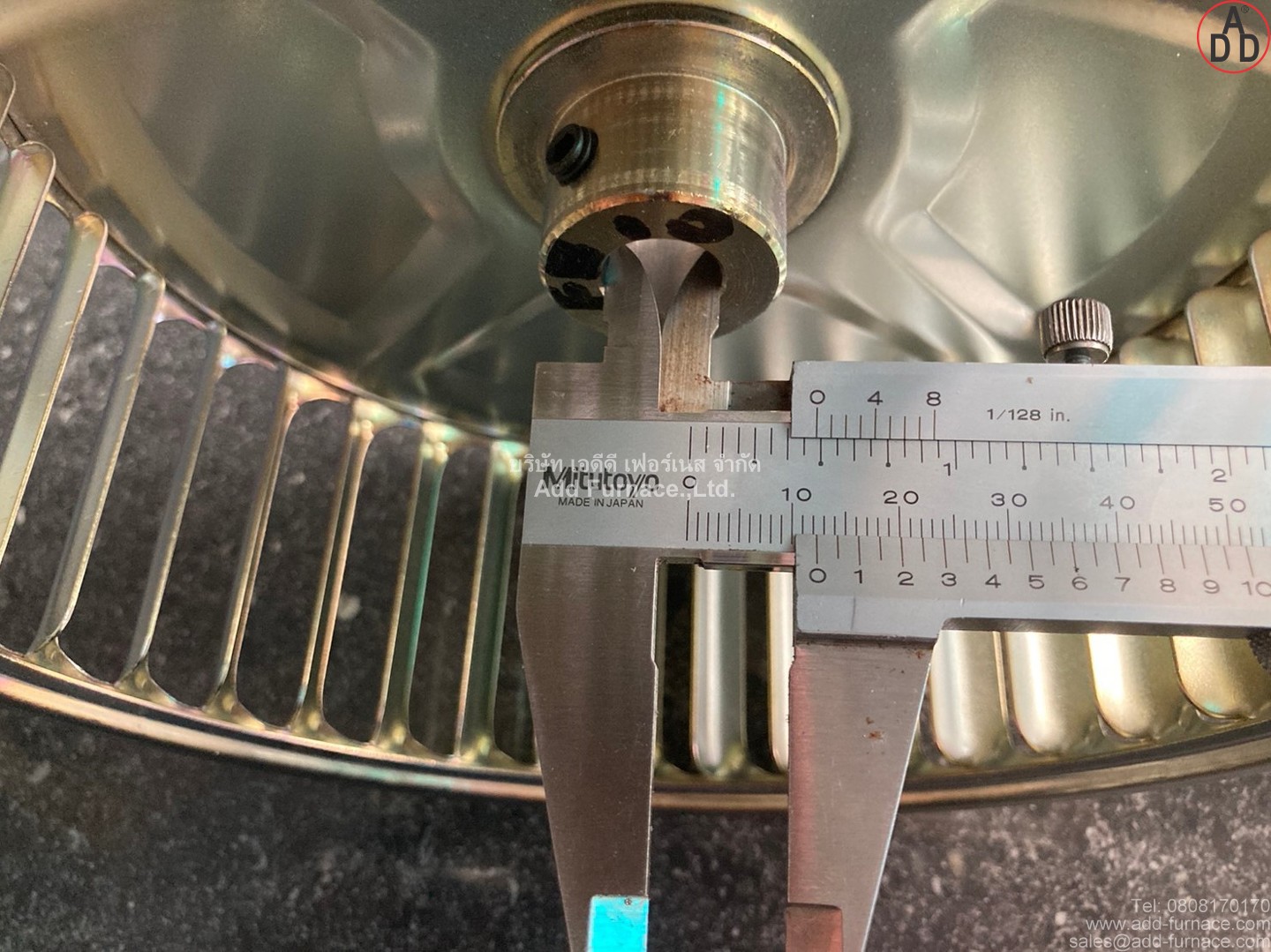

Pilot Burner Blower Wheel Size 158x63xOD12.7mm

Centrifugal Blower TYPE MS-751

0.75 kW,3phase,380-400V

0.7kPa/1kPa,23/25m³/min

Blower TYPE CX-100A

1.5 kW,380-400V,2770/3200rpm

2/3 KPa,20/23m³/min

Air Outlet Size:Φ4",DN100

Blower TYPE HTB75-104

1.5 kW,3phase,380-400V

6.5/8 KPa(65~80mbar),6.5/8m³/min

Air Outlet Size:Φ3",DN80

Centrifugal Blower TYPE HTB75-105

1.5 kW,3phase,380-400V

4.2/6 KPa(42~60mbar),6.5/8.5m³/min

Air Outlet Size:Φ3",DN80

Centrifugal Blower TYPE HTB100-203

1.5 kW,3phase,380-400V

5/7 KPa(50~70mbar),11/14m³/min

Air Outlet Size:Φ4",DN100

Centrifugal Blower TYPE HTB100-304

2.2 kW,3phase,380-400V

6.5/9 KPa(6.5~90mbar),12.5/16m³/min

Air Outlet Size:Φ4",DN100

Centrifugal Blower TYPE HTB125-503

3.7 kW,3phase,380-400V

5.8/7.9 KPa(58~79mbar),19/23m³/min

Air Outlet Size:Φ5",DN125
