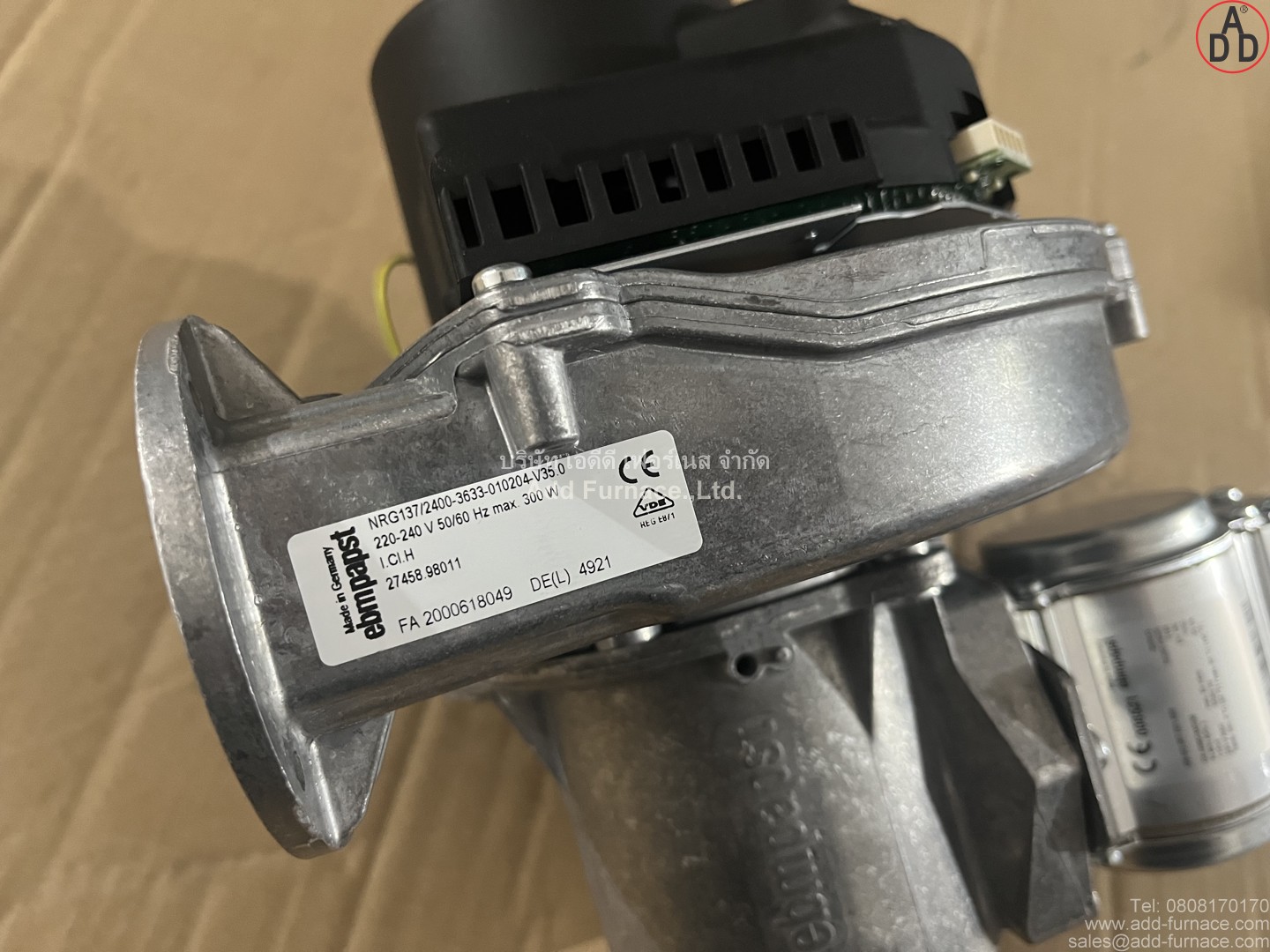

NRG137/2400-3633-010204-V35.0 with GB-ND 057 D01 S00
.jpg)
- Blower : EBMPAPST NRG137/2400-3633
- Type : NRG137/2400-3633-010204-V35.0
- Rated Voltage : 220-240V
- Freguency : 50/60Hz
- max. air flow : 235m³/h
- max.pressure increase : 3500Pa
- max.power input : 300W
- max.speed : 9000 min‾¹
- Zero pressure regulator : EBMPAPST GB-ND 057 D01 S00
- Max. inlet pressure : 65 mbar (6.5 kPa)
- Voltage : 230 V RAC
- frequency : 50/60 Hz
- Coil load : 25VA
- Degree of protection : IP40
- Tamb : min.0˚C(32˚F)/max.60˚C (140˚F)
- Made in Germany
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
