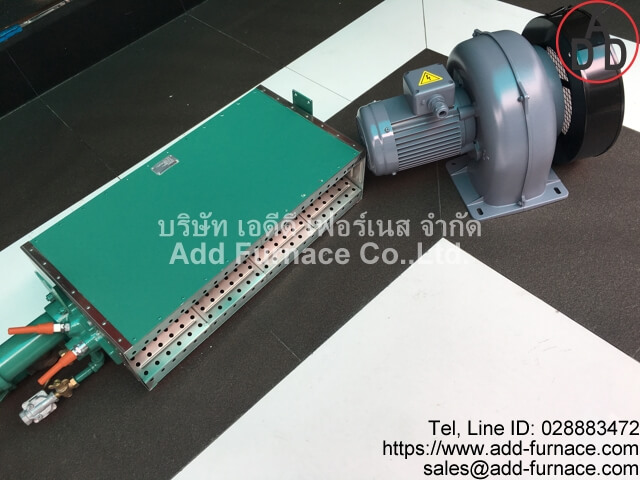

Eclipse 160 RAH

Eclipse 160 RAH
  • Eclipse AirHeat Burners: 160 RAH
  • AirHeat Burners Type: Eclipse 160 RAH
  • Capacity: 1,600,000Btu/h = 466~586kW/h = 400,000Kcah/h
  • AIRHEAT
  • AH13.109271-
  • 01XXXXXX
  • S/N 80S1001877-
  • 0001-14
  • Max Temperature 400℃,750℉
  • L.P.G(Propane,Butane) Pressure Range:20~28mbar,200~280mmAq,2~2.8kPa,8~11"WC
  • LNG(Natural) Pressure Range:35~40mBar,350~400mmAq,3.5~4kPa,14~16"WC
  • Applications:
  • Hot Air
  • Dry-off curing ovens
  • Indirect air heating
  • Textile Drying
  • Food,Processing/baking
  • Ceramic Drying
  • Brand: Eclipse
  • Made in U.S.A
  • 160 RAH Standard Manual
  • Eclipse 160 RAH(1)
  • Eclipse 160 RAH(2)
  • Eclipse 160 RAH(3)
  • Eclipse 160 RAH(4)
  • Eclipse 160 RAH(5)
  • Eclipse 160 RAH(6)
  • Eclipse 160 RAH(7)
  • Eclipse 160 RAH(8)
  • Eclipse 160 RAH(9)
  • Eclipse 160 RAH(10)
  • Eclipse 160 RAH(11)
  • Eclipse 160 RAH(12)
  • Eclipse 160 RAH(13)
  • Eclipse 160 RAH(14)
  • Eclipse 160 RAH(15)
  • Eclipse 160 RAH(16)
  • Eclipse 160 RAH(17)
  • Eclipse 160 RAH(18)
  • Eclipse 160 RAH(19)
  • Eclipse 160 RAH(20)
  • Eclipse 160 RAH(21)
  • Eclipse 160 RAH(22)
  • Eclipse 160 RAH(23)
  • Eclipse 160 RAH(24)
  • Eclipse 160 RAH(25)
