EBMPAPST RG148/1200-3633 with EBMPAPST GB-ND 057 D01 S00
.jpg)
- Blower : EBMPAPST RG148/1200-3633
- Type : RG148/1200-3633
- Rated Voltage : 230V AC
- Freguency : 50Hz
- max. air flow : 190m³/h
- max.pressure increase : 3200Pa
- max.power input : 200W
- max.speed : 8500 min‾¹

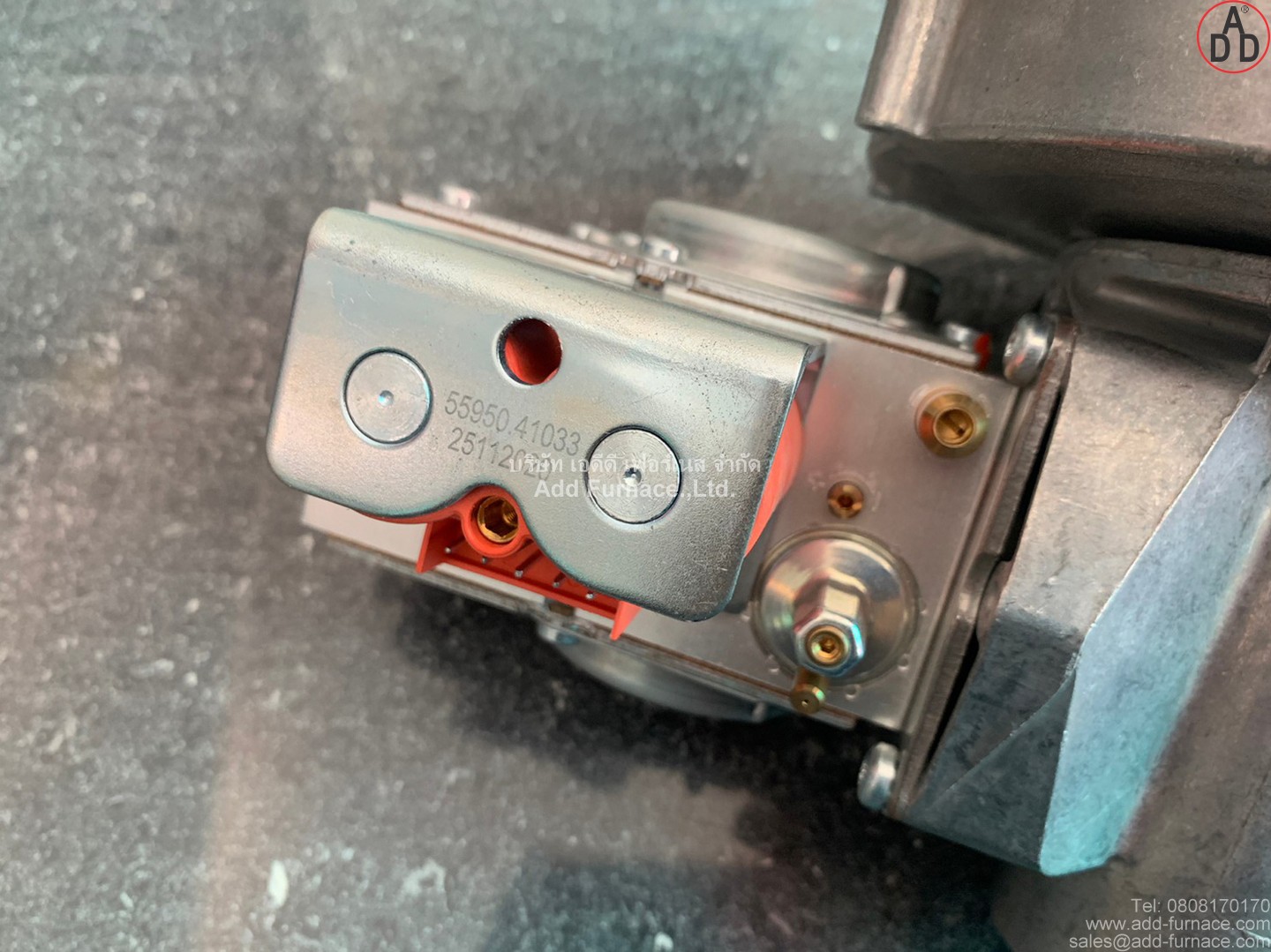

- Zero pressure regulator : EBMPAPST GB-ND 057 D01 S00
- Max. inlet pressure : 65 mbar (6.5 kPa)
- Voltage : 230 V RAC
- frequency : 50/60 Hz
- Coil load : 25VA
- Degree of protection : IP40
- Tamb : min.0˚C(32˚F)/max.60˚C (140˚F)
- Made in Germany
EBMPAPST RG148/1200-3633 Drawing
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
