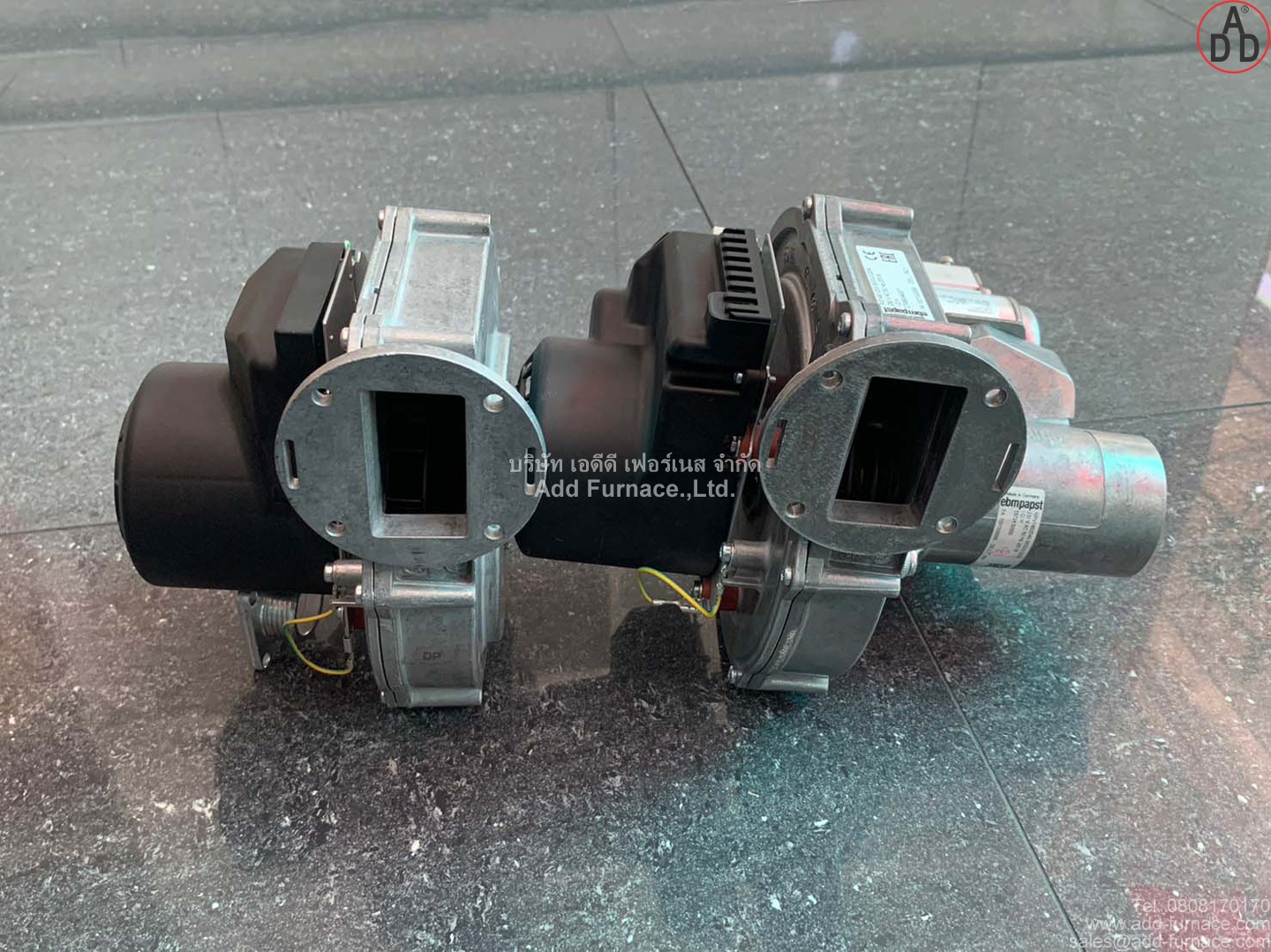

EBMPAPST RG148/1200-3633 Mixer EBMPAPST GB-ND 057 D01 S00

EBMPAPST RG148/1200-3633 Mixer EBMPAPST GB-ND 057 D01 S00
  • EBMPAPST RG148/1200-3633 Mixer EBMPAPST GB-ND 057 D01 S00 Mixer EBMPAPST GB-ND 057 D01 S00
  • Blower : EBMPAPST RG148/1200-3633
  • Type : RG148/1200-3633
  • Rated Voltage : 230V AC
  • Freguency : 50Hz
  • max. air flow : 190m³/h
  • max.pressure increase : 3200Pa
  • max.power input : 135W
  • max.speed : 8500 min‾¹
  • Zero pressure regulator : EBMPAPST GB-ND 057 D01 S00
  • Max. inlet pressure : 65 mbar (6.5 kPa)
  • Voltage : 230 V RAC
  • frequency : 50/60 Hz
  • Coil load : 25VA
  • Degree of protection : IP40
  • Tamb : min.0˚C(32˚F)/max.60˚C (140˚F)
  • Made in Germany
