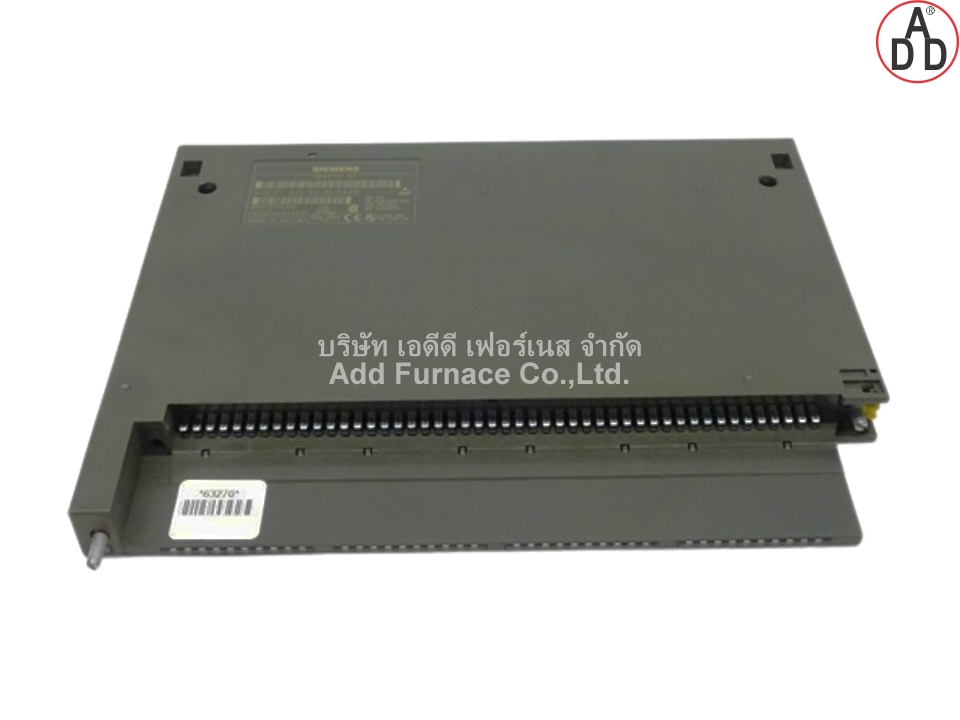

6ES7 422-1BL00-0AA0

SIEMENS SIMATIC S7
Type:6ES7 422-1BL00-0AA0
The SM 422; DO 32 x 24 VDC/0.5 A has the following features:
• 32 outputs, isolated in a group of 32
• Power is supplied to 8 channels in groups.
• A supply group always consists of eight adjacent channels starting with channel 0. Channels 0 to 7, 8 to 15, 16 to 23 and 24 to 32 therefore form one supply group
• Each of these supply groups can be switched off separately by isolating L+, however you have to take note of the common ground connection.
• 0.5 A output current
• 24 VDC rated load voltage
The status LEDs also indicate the system status even when the front connector is not inserted.
Made in Germany
Brand Siemens
